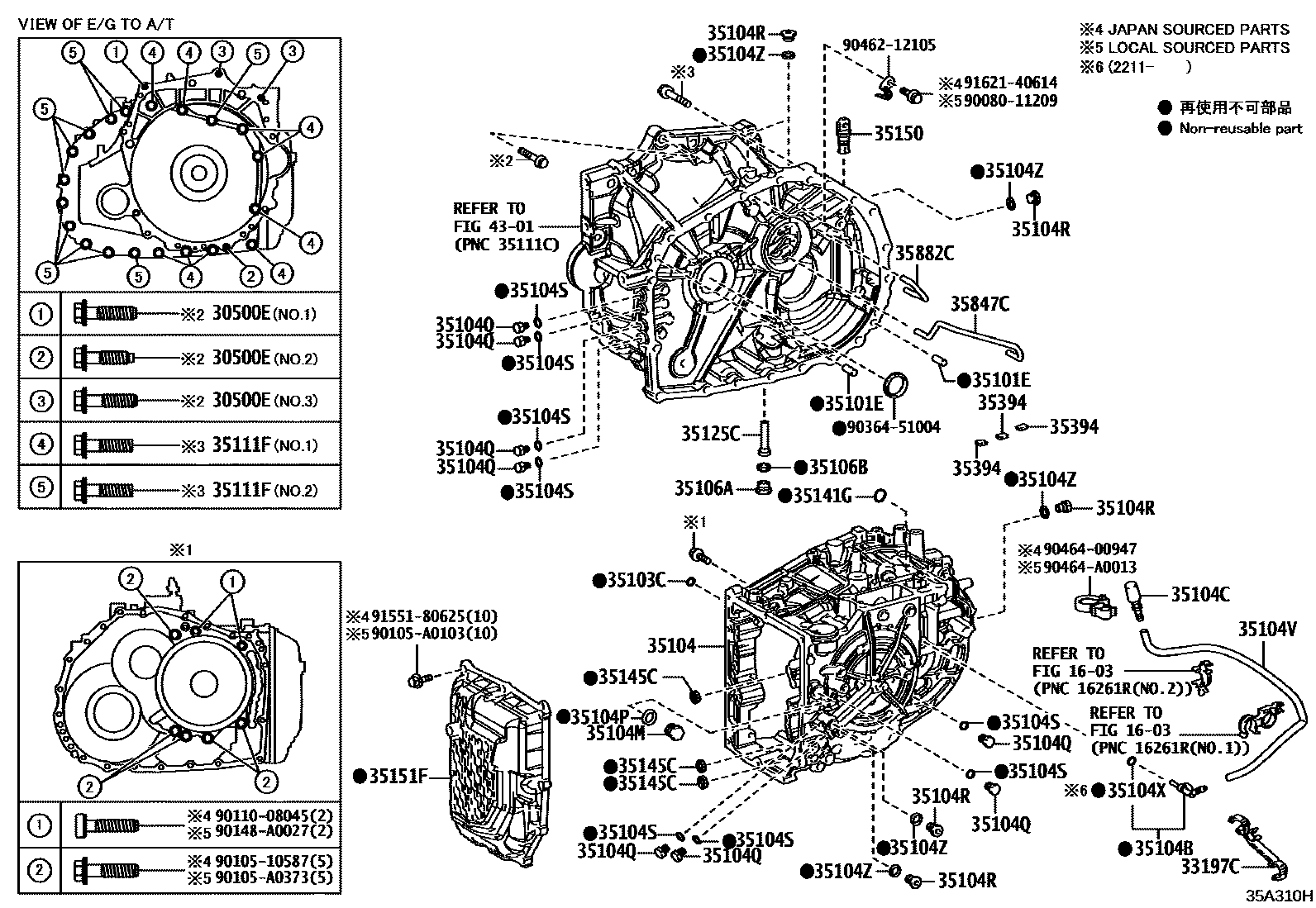

TRANSMISSION CASE & OIL PAN (ATM)

1603

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-10591iAXAA54;AXAA52..G,X;AXAA52..M..USA202211

*10-1.25PX45-36,(J),NO.1:REFER ILL.

main90105-A0225×2iAXAA52..M..CND202009

*12-1.25PX50-30,(L),NO.3:REFER ILL.

main90105-A0269iAXAA52..M..CND202009

*8-1.25PX35-22,(L),NO.2:REFER ILL.

main90105-A0393iAXAA54;AXAA52..G,X;AXAA52..M..USA202211

*10-1.25PX45-36,(L),NO.1:REFER ILL.

main91552-81250×2iAXAA52..M..CND202009

*12-1.25PX50-30,(J),NO.3:REFER ILL.

main91553-80830iAXAA52..M..CND202009

*8-1.25PX35-22,(J),NO.2:REFER ILL.

33197CCLAMP, TRANSMISSION BREATHER

main33197-06010iAXAA54;AXAA52..G,X;AXAA52..M..USA202009-202211

(L)

main33197-33020iAXAA52..M..CND202009

(J)

35101EPIN, STRAIGHT (FOR AUTOMATIC TRANSMISSION CASE)

main90250-10017×2iAXAA52..G,X;AXAA52..M..CND202004-202009

TYPE C:REFER 35-01

main90250-10021×2iAXAA52..M..USA202211

TYPE A:REFER 35-01

35103CRING, O

main90301-06021iAXAA52..M..USA201812-201910

TYPE A:REFER 35-01

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-06030iAXAA52..G,X202009-202211

TYPE C:REFER 35-01

main35104-0R010iAXAA54;AXAA52..G,X;AXAA52..M..USA202211

TYPE B:REFER 35-01

main35104-33140iAXAA52..M..USA202211

TYPE A:REFER 35-01

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03230iAXAA54;AXAA52..G,X202009-202211

TYPE A:REFER 35-01

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03216iAXAA5#201812-202009

35104MPLUG, REFILL(ATM)

main90341-18064iAXAA52..M..USA201812-201910

TYPE A:REFER 35-01

main90341-A0003iAXAA54;AXAA52..G,X;AXAA52..M..USA202009-202211

TYPE C:REFER 35-01

35104PGASKET, REFILL PLUG(ATM)

main90430-18008iAXAA54;AXAA52..G,X;AXAA52..M..CND201812-202009

TYPE A:REFER 35-01

main90430-A0003iAXAA52..G,X202009-202211

TYPE C:REFER 35-01

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×8iAXAA52..M..USA201812-201910

TYPE A:REFER 35-01

main90341-A0001×8iAXAA54;AXAA52..G,X;AXAA52..M..USA202009-202211

TYPE C:REFER 35-01

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-14015×6iAXAA54;AXAA52..G,X;AXAA52..M..CND201812-202009

TYPE A:REFER 35-01

main90341-A0005×6iAXAA52..G,X202211-202310

TYPE C:REFER 35-01

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90080-30105×8iAXAA52..G,X202211-202310

TYPE C:REFER 35-01

main90301-06196×8iAXAA54;AXAA52..G,X202009-202211

TYPE A:REFER 35-01

35104VHOSE (FOR BREATHER PLUG)

main35121-33070iAXAA52..M..CND202009

35104XRING, O (FOR BREATHER PLUG)

main90301-08015iAXAA54;AXAA52..G,X;AXAA52..M..USA202211

TYPE A:REFER 35-01

35104ZGASKET (FOR TRANSAXLE CASE)

main90430-14008×6iAXAA52..M..USA201812-201910

TYPE A:REFER 35-01

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-18023iAXAA52..G,X202211-202310

TYPE C:REFER 35-01,TYPE A:REFER 35-01

main90341-A0009iAXAA52..M..CND202009

TYPE B:REFER 35-01

35106BGASKET, DRAIN PLUG (ATM)

main90430-18008iAXAA54;AXAA52..G,X;AXAA52..M..CND201812-202009

TYPE A:REFER 35-01

main90430-A0003iAXAA52..G,X202009-202211

TYPE C:REFER 35-01

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-A0367×9iAXAA54;AXAA52..G,X;AXAA52..M..USA202211

*8-1.25PX40-22,T/P B:SEE 35-01,NO.1

main90105-A0430×11iAXAA5#201812-202009

*8-1.25PX35-22,T/P B:SEE 35-01,NO.2

main91551-00835×11iAXAA52..G,X;AXAA52..M..CND202004-202009

*8-1.25PX35-22,T/P C:SEE 35-01,NO.2

main91551-00840×9iAXAA52..M..USA201812-201910

*8-1.25PX40-22,T/P A:SEE 35-01,NO.1

35125CTUBE, TRANSMISSION OIL FILLER, NO.1

main35125-06120iAXAA5#201812-202009

TYPE B:REFER 35-01

main35125-33110iAXAA54;AXAA52..G,X;AXAA52..M..CND201812-202009

TYPE A:REFER 35-01

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-10018iAXAA54;AXAA52..G,X;AXAA52..M..CND201812-202009

TYPE A:REFER 35-01

main90301-A0016iAXAA52..G,X;AXAA52..M..CND202004-202009

TYPE C:REFER 35-01

35145CGASKET, TRANSAXLE CASE

main35145-33010×3iAXAA54;AXAA52..G,X;AXAA52..M..CND201812-202009

TYPE A:REFER 35-01

main35145-33020×3iAXAA54;AXAA52..G,X;AXAA52..M..USA202211

TYPE A:REFER 35-01

35150PLUG ASSY, TRANSMISSION CASE

main35150-45010iAXAA52..M..CND202009

35151FCOVER, TRANSMISSION CASE, SIDE

main35151-06010iAXAA54;AXAA52..G,X;AXAA52..M..USA202009-202211

T/P C:SEE 35-01,(L)

main35151-33161iAXAA54;AXAA52..G,X;AXAA52..M..USA202310

TYPE B:REFER 35-01

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-08010×3iAXAA52..G,X202009-202211

TYPE C:REFER 35-01

main35394-48010×3iAXAA52..M..USA201812-201910

TYPE A:REFER 35-01

35847CTUBE, TRANSMISSION LUBE APPLY

main35847-06010iAXAA52..G,X202211-202310

TYPE C:REFER 35-01

main35847-48030iAXAA54;AXAA52..G,X;AXAA52..M..CND201812-202009

TYPE A:REFER 35-01

35882CTUBE, DIFFERENTIAL GEAR LUBE APPLY

main35882-06030iAXAA54;AXAA52..G,X;AXAA52..M..USA202009-202211

TYPE C:REFER 35-01

main35882-48030iAXAA54;AXAA52..G,X;AXAA52..M..CND201812-202009

TYPE A:REFER 35-01

4301

9008011209

main90080-11209

9010510587

main90105-10587

90105A0103

main90105-A0103

90105A0373

main90105-A0373

9011008045

main90110-08045

90148A0027

main90148-A0027

9036451004

main90364-51004

9046212105

main90462-12105

9046400947

main90464-00947

90464A0013

main90464-A0013

9155180625

main91551-80625

9162140614

main91621-40614

40 parts on this diagram · 1 diagram in section
