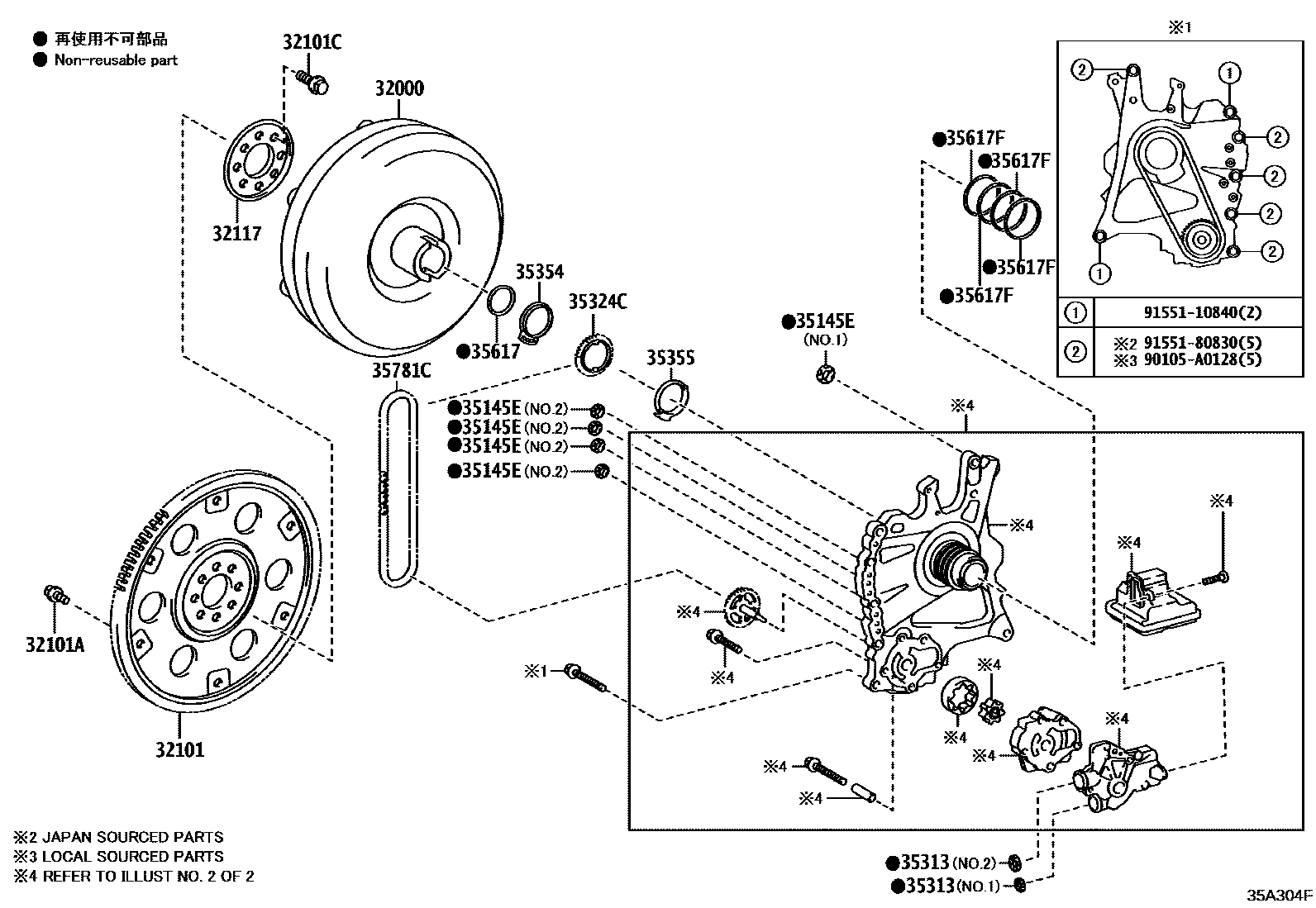

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1UB80E,UB80F W/O(STOP&START SY0002 1UB80E,UB80F W/O(STOP&START SY0003 1UB80E,UB80F W(STOP&START SYST

32000CONVERTER ASSY, TORQUE

main32000-06060iAXAA52..G,X202009-202211

TYPE B:REFER 35-01,TYPE B:REFER ILLUST.

main32000-06060iAXAA52..G,X202004-202310

TYPE C:REFER ILLUST.

main32000-06060iAXAA5#201903-202009

TYPE B:REFER ILLUST.

main32000-06060iAXAA5#201812-202009

TYPE B:REFER 35-01

main32000-06060iAXAA52..M..USA202010-202405

MEXICO SPEC,TYPE C:REFER ILLUST.

main32000-33180iAXAA52..M..CND201812-202211

TYPE A:REFER 35-01

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-06070iAXAA52..M..CND201812-202211

(L)

main32101-33020iAXAA52..M..CND201812-202211

(J)

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iAXAA5#201812-202211

*9-1.25PX12.4-7.3,BLACK

main90119-09025iAXAA5#201812-202211

*9-1.25PX12.4-8.4,SILVER WHITE

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12404iAXAA52..M..CND201812-202211

*12-1.25PX20.3-14.3

32117SPACER, DRIVE PLATE, REAR

main32117-02030iAXAA5#201812-202211

(L)

main32117-33010iAXAA52..M..CND201812-202211

(J)

35145EGASKET, TRANSAXLE CASE

main35145-33010iAXAA5#..M..USA201812-202102

T/P B:SEE 35-01,NO.1,T/P A:SEE 35-01,NO.1

main35145-33010iAXAA54..M..USA201906-201910

TOYOTA STOP & START SYSTEM-WITH,T/P A:SEE 35-01,NO.1

main35145-33010iAXAA52..M..USA202010-202103

MEXICO SPEC,T/P C:SEE 35-01,NO.1

main35145-33010iAXAA52..G,X202004-202103

T/P C:SEE 35-01,NO.1

main35145-33010iAXAA52..M..USA202010-202102

MEXICO SPEC,T/P B:SEE 35-01,NO.1,T/P A:SEE 35-01,NO.1

main35145-33010iAXAA5#..M..USA201910-202009

T/P B:SEE 35-01,NO.1

main35145-33010iAXAA5#..M..USA201910-202009

T/P A:SEE 35-01,NO.1

main35145-33020iAXAA52..G,X;AXAA54..G,V202103-202211

T/P B:SEE 35-01,NO.1,T/P A:SEE 35-01,NO.1

main35145-33020iAXAA52..G,X;AXAA54..G,V202103-202211

T/P C:SEE 35-01,NO.1

main35145-33020iAXAA52..G,X;AXAA54..G,V202103-202211

MEXICO SPEC,T/P B:SEE 35-01,NO.1,T/P C:SEE 35-01,NO.1,T/P A:SEE 35-01,NO.1

main35145-33020iAXAA52..G,X;AXAA54..G,V202103-202211

T/P A:SEE 35-01,NO.1

main35145-33020iAXAA52..G,X;AXAA54..G,V202103-202211

T/P B:SEE 35-01,NO.1

main35145-33020iAXAA52..G,X202211-202310

T/P C:SEE 35-01,NO.1,T/P B:SEE 35-01,NO.1,T/P A:SEE 35-01,NO.1

main35145-33020iAXAA52..M..USA202211-202405

MEXICO SPEC,T/P C:SEE 35-01,NO.1

main35145-33020iAXAA54..G,V202211

MEXICO SPEC,T/P B:SEE 35-01,NO.1,T/P A:SEE 35-01,NO.1

main35145-33040iAXAA52..M..USA202103-202211

T/P B:SEE 35-01,NO.2

main35145-33040iAXAA54;AXAA52..G,X;AXAA52..M..USA202103-202211

MEXICO SPEC,T/P C:SEE 35-01,NO.2,T/P A:SEE 35-01,NO.2

main35145-33040iAXAA52..M..USA202103-202211

T/P C:SEE 35-01,NO.2

main35145-33040iAXAA52..M..USA202103-202211

T/P A:SEE 35-01,NO.2

main35145-33040iAXAA52..G,X202211-202310

T/P C:SEE 35-01,NO.2,T/P A:SEE 35-01,NO.2

main35145-33040iAXAA52..M..USA202211-202405

MEXICO SPEC,T/P C:SEE 35-01,NO.2

main35145-33040iAXAA54;AXAA52..G,X;AXAA52..M..USA202211

MEXICO SPEC,T/P A:SEE 35-01,NO.2

main35145-48030iAXAA52..M..USA201812-202009

T/P A:SEE 35-01,NO.2

main35145-48030iAXAA5#202009-202102

T/P B:SEE 35-01,NO.2,T/P A:SEE 35-01,NO.2

main35145-48030iAXAA5#202004-202102

T/P C:SEE 35-01,NO.2

main35145-48030iAXAA5#201812-202009

T/P B:SEE 35-01,NO.2

main35145-48030iAXAA52..M..USA202010-202102

MEXICO SPEC,T/P C:SEE 35-01,NO.2

35313GASKET, FRONT OIL PUMP COVER

main35313-48020iAXAA52..G,X;AXAA52..M..CND202004-202211

T/P C:SEE 35-01,NO.1

main35313-48020iAXAA52..M..USA201812-202211

T/P A:SEE 35-01,NO.1

main35313-48020iAXAA5#201812-202211

T/P B:SEE 35-01,NO.1

main35313-48020iAXAA52..M..USA202010-202211

MEXICO SPEC,T/P C:SEE 35-01,NO.1,T/P A:SEE 35-01,NO.1

main35313-48020iAXAA52..G,X202211-202310

T/P C:SEE 35-01,NO.1,T/P A:SEE 35-01,NO.1

main35313-48020iAXAA52..M..USA202211-202405

MEXICO SPEC,T/P C:SEE 35-01,NO.1

main35313-48020iAXAA54202211

MEXICO SPEC,T/P A:SEE 35-01,NO.1

main35313-48030iAXAA52..G,X201812-202211

T/P B:SEE 35-01,NO.2

main35313-48030iAXAA54;AXAA52..G,X;AXAA52..M..USA201812-202211

T/P A:SEE 35-01,NO.2

main35313-48030iAXAA52..M..USA202010-202211

MEXICO SPEC,T/P C:SEE 35-01,NO.2,T/P A:SEE 35-01,NO.2

main35313-48030iAXAA54;AXAA52..G,X202004-202211

T/P C:SEE 35-01,NO.2

main35313-48030iAXAA52..G,X202211-202310

T/P C:SEE 35-01,NO.2,T/P A:SEE 35-01,NO.2

main35313-48030iAXAA52..M..USA202211-202405

MEXICO SPEC,T/P C:SEE 35-01,NO.2

main35313-48030iAXAA54202211

MEXICO SPEC,T/P A:SEE 35-01,NO.2

35324CSPROCKET, TRANSMISSION OIL PUMP DRIVE

main35324-06010iAXAA52..M..USA202010-202405

MEXICO SPEC,TYPE C:REFER 35-01

main35324-06010iAXAA5#201812-202211

TYPE B:REFER 35-01

main35324-06010iAXAA52..G,X;AXAA52..M..CND202004-202310

TYPE C:REFER 35-01

main35324-48040iAXAA52..M..USA201812-202310

TYPE A:REFER 35-01

main35324-48040iAXAA52..M..USA202010-202211

MEXICO SPEC,TYPE A:REFER 35-01

35354WASHER, OIL PUMP SPROCKET THRUST, FRONT

main35354-48010iAXAA54;AXAA52..G,X;AXAA52..M..USA201812-202211

TYPE B:REFER 35-01

main35354-48010iAXAA52..M..USA202010-202211

MEXICO SPEC,TYPE C:REFER 35-01,TYPE A:REFER 35-01

main35354-48010iAXAA52..G,X202211-202310

TYPE C:REFER 35-01,TYPE A:REFER 35-01

main35354-48010iAXAA52..M..USA202211-202405

MEXICO SPEC,TYPE C:REFER 35-01

main35354-48010iAXAA54201812-202211

TYPE A:REFER 35-01

main35354-48010iAXAA54202211

MEXICO SPEC,TYPE A:REFER 35-01

main35354-48010iAXAA52..G,X;AXAA52..M..CND202004-202211

TYPE C:REFER 35-01

35355WASHER, OIL PUMP SPROCKET THRUST, REAR

main35355-48010iAXAA52..M..USA201812-202012

TYPE A:REFER 35-01

main35355-48010iAXAA5#201812-202011

TYPE B:REFER 35-01

main35355-48010iAXAA52..G,X;AXAA52..M..CND202004-202011

TYPE C:REFER 35-01

main35355-48010iAXAA52..M..USA202010-202011

MEXICO SPEC,TYPE C:REFER 35-01

main35355-48011iAXAA54202211

MEXICO SPEC,TYPE A:REFER 35-01

main35355-48011iAXAA54..M,X202012-202211

TYPE A:REFER 35-01

main35355-48011iAXAA54..M,X202012-202211

TYPE C:REFER 35-01

main35355-48011iAXAA54..M,X202012-202211

TYPE B:REFER 35-01

main35355-48011iAXAA54..M,X202012-202211

MEXICO SPEC,TYPE C:REFER 35-01,TYPE A:REFER 35-01

main35355-48011iAXAA52..G,X202211-202310

TYPE C:REFER 35-01,TYPE A:REFER 35-01

main35355-48011iAXAA52..M..USA202211-202405

MEXICO SPEC,TYPE C:REFER 35-01

35617RING, CLUTCH DRUM OIL SEAL

main35617-48050iAXAA54;AXAA52..G,X201812-202211

TYPE B:REFER 35-01

main35617-48050iAXAA54;AXAA52..G,X;AXAA52..M..USA202004-202211

TYPE C:REFER 35-01

main35617-48050iAXAA54;AXAA52..G,X;AXAA52..M..USA201812-202211

TYPE A:REFER 35-01

main35617-48050iAXAA52..M..USA202010-202211

MEXICO SPEC,TYPE C:REFER 35-01,TYPE A:REFER 35-01

main35617-48050iAXAA52..G,X202211-202310

TYPE C:REFER 35-01,TYPE A:REFER 35-01

main35617-48050iAXAA52..M..USA202211-202405

MEXICO SPEC,TYPE C:REFER 35-01

main35617-48050iAXAA54202211

MEXICO SPEC,TYPE A:REFER 35-01

35617FRING, CLUTCH DRUM OIL SEAL

main35617-33020iAXAA54;AXAA52..G,X;AXAA52..M..USA202004-202211

TYPE C:REFER 35-01

main35617-33020iAXAA52..M..USA201812-202211

TYPE A:REFER 35-01

main35617-33020iAXAA5#201812-202211

TYPE B:REFER 35-01

main35617-33020iAXAA52..M..USA202010-202211

MEXICO SPEC,TYPE C:REFER 35-01,TYPE A:REFER 35-01

main35617-33020iAXAA52..G,X202211-202310

TYPE C:REFER 35-01,TYPE A:REFER 35-01

main35617-33020iAXAA52..M..USA202211-202405

MEXICO SPEC,TYPE C:REFER 35-01

main35617-33020iAXAA54202211

MEXICO SPEC,TYPE A:REFER 35-01

35781CCHAIN, TRANSMISSION DRIVE

main35781-06010iAXAA52..G,X202004-202310

TYPE C:REFER 35-01

main35781-06010iAXAA52..M..USA202010-202405

MEXICO SPEC,TYPE C:REFER 35-01

main35781-06010iAXAA54;AXAA52..G,X;AXAA52..M..USA201812-202402

TYPE B:REFER 35-01

main35781-06020iAXAA54;AXAA52..G,X;AXAA52..M..USA202402

TYPE B:REFER 35-01

main35781-48020iAXAA52..M..USA202010-202211

MEXICO SPEC,TYPE A:REFER 35-01

main35781-48020iAXAA54;AXAA52..G,X201812-202310

TYPE A:REFER 35-01

90105A0128

main90105-A0128

9155110840

main91551-10840

9155180830

main91551-80830
