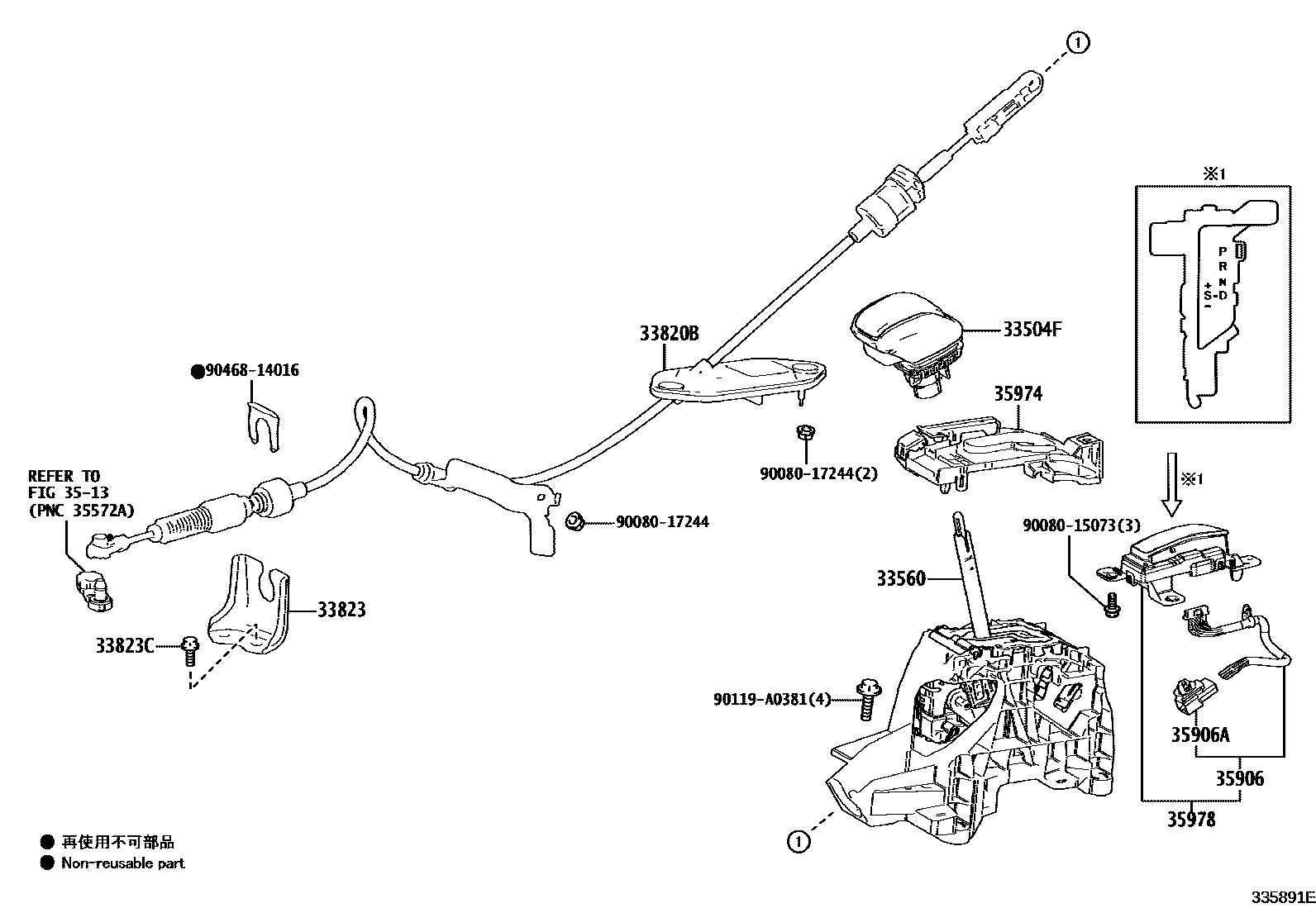

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-0R110-C0iAXAA5#,AXAH54,AXAL54..X201812-202211

BLACK,TRIM1#,2#,4#

main33504-0R110-C0iAXAA52..M..USA;AXAA54,AXAH54,AXAL54..M201812-202211

BLACK,TRIM2#,4#

main33504-0R120-C0iAXAA54..V201812-202211

BLACK,TRIM1#,2#,4#

main33504-0R120-C0iAXAA54..V202112-202211

BLACK,TRIM2#

main33504-0R120-C0iAXAA54..V201812-202211

SEAT COVER MATERIAL(SYNTHETIC LEATHER),BLACK,TRIM1#,2#,4#

main33504-0R120-C0iAXAA5#,AXAH54,AXAL54..G201910-202211

BLACK,TRIM2#,4#

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-0R060iAXAA5#,AXAH54,AXAL54..X201812-202211

main33560-0R070iAXAA52..M..CND202009-202211

main33560-0R070iAXAA5#,AXAH54,AXAL54..G,M,V201812-202009

KEY PLATE-FOR SMART ENTRY

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-0R160iAXAA52..M..CND201812-202211

main33820-0R170iAXAH54,AXAL54201903-202211

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-06040iAXAA54;AXAA52..G,X;AXAA52..M..USA201812-202211

main33823-0R100iAXAH54,AXAL54201903-202211

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-A0127iAXAA5#,AXAH54,AXAL54201812-202211

3513

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-0R040iAXAA5#201812-202211

main35906-0R050iAXAH54,AXAL54201903-202211

35906AHOUSING, CONNECTOR MALE (FOR INDICATOR LAMP WIRE)

main90980-12367iAXAA54;AXAA52..G,X;AXAA52..M..USA201812-202211

35974HOUSING, POSITION INDICATOR, LOWER

main35974-0R010iAXAA5#,AXAH54,AXAL54201812-202211

35978INDICATOR, SHIFT POSITION

main35978-0R010iAXAA52..M..CND201812-202211

main35978-0R020iAXAH54,AXAL54201903-202211

9008015073

main90080-15073

9008017244

main90080-17244

90119A0381

main90119-A0381

9046814016

main90468-14016

14 parts on this diagram · 2 diagrams in section
