FUEL INJECTION SYSTEM

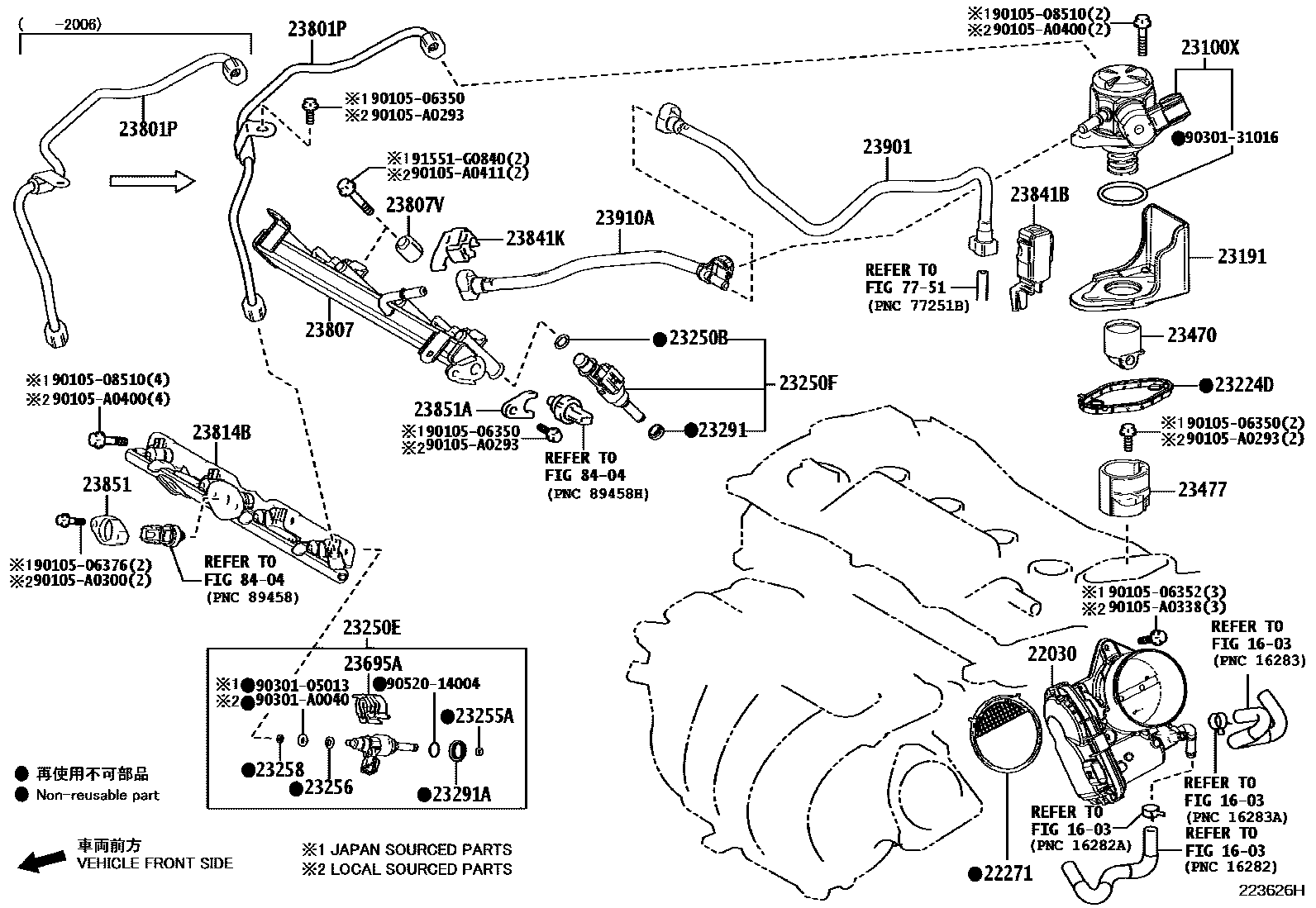

Parts diagram
1603
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
main22030-25010i201812-202211
*584
main22030-25020i201903-202009
*584
main22030-F0010i201812-202211
*628
main22030-F0020i201903-202211
*628
22271GASKET, THROTTLE BODY
main22271-25010i201812-202211
*584
main22271-25020i202211
*584
main22271-F0010i201812-202211
*628
main22271-F0020i201903-202211
*628
23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)
main23101-25040i201812-202009
*584
main23101-F0010i201812-202211
*628
23191FLANGE, FUEL PUMP
main23191-25050i201812-202009
*628,*584
main23191-25050i202009-202211
*628T/P A:REF.ILLUST
main23191-25050i202211
*584T/P A:REF.ILLUST
main23191-25050i202009
*584
main23191-25050i202302
(J),*628
main23191-25050i202211-202302
*628
main23191-25070i202211
*584T/P B:REF.ILLUST
main23191-25070i202112-202203
*628T/P B:REF.ILLUST
main23214-F2080i202302
(L),*628
23224DGASKET, FUEL PUMP SPACER
main23224-25010i201812-202107
*584
sub23224-25011
main23224-25011i202108
*584
main23224-F0010i201812-202110
*628
sub23224-F0011
main23224-F0011i202111-202211
*628
23250BRING, O(FOR FUEL INJECTOR)
main90301-07037i202006-202211
(J),*584
main90301-07037i201812-202104
*584
main90301-07037i202008-202009
*584,(J),*628
main90301-07037i202009-202211
(J),*628
main90301-A0036i202008-202009
(L),*628
main90301-A0036i201812-202211
*628
main90301-A0036i202006-202009
(L),*584
main90301-C0072i202104-202211
(L),*584
23250EINJECTOR ASSY, FUEL(FOR DIRECT)
main23209-25010-01i201812-202211
MARK 1,*584:REFER R/M
main23209-25010-02i201812-202211
MARK 2,*584:REFER R/M
main23209-25010-03i201812-202211
MARK 3,*584:REFER R/M
main23209-25010-04i201812-202211
MARK 4,*584:REFER R/M
main23209-25010-05i201812-202211
MARK 5,*584:REFER R/M
main23209-25010-06i201812-202211
MARK 6,*584:REFER R/M
main23209-25010-07i201812-202211
MARK 7,*584:REFER R/M
main23209-25010-08i201812-202211
MARK 8,*584:REFER R/M
main23209-25010-09i201812-202211
MARK 9,*584:REFER R/M
main23209-F0010-01i201812-202211
MARK 1,*628:REFER R/M
main23209-F0010-02i201812-202211
MARK 2,*628:REFER R/M
main23209-F0010-03i201812-202211
MARK 3,*628:REFER R/M
main23209-F0010-04i201812-202211
MARK 4,*628:REFER R/M
main23209-F0010-05i201812-202211
MARK 5,*628:REFER R/M
main23209-F0010-06i201812-202211
MARK 6,*628:REFER R/M
main23209-F0010-07i201812-202211
MARK 7,*628:REFER R/M
main23209-F0010-08i201812-202211
MARK 8,*628:REFER R/M
main23209-F0010-09i201812-202211
MARK 9,*628:REFER R/M
23250FINJECTOR ASSY, FUEL(FOR PORT)
main23209-29105i201812-201907
*584
sub23209-29175
main23209-29175i202009-202211
*584
main23209-29175i201907-202009
*628,*584
main23209-29175i202009-202104
*628
main23209-29175i202104-202211
(J),*628
main23209-29175i202211
*584,(J),*628
main23209-F9000i201812-201907
*628
sub23209-F9080
main23209-F9080i202104-202211
(L),*628
23255ASEAL, FUEL INJECTOR
main23255-25010i202009-202211
*584
main23255-25010i201812-202009
*584,(J),*628
main23255-F0010i201812-202211
(L),*628
23256RING, FUEL INJECTOR BACK-UP, NO.1
main23256-25010i201812-202009
*584,(J),*628
main23256-25010i202009-202211
*584
main23256-F0010i201812-202211
(L),*628
23258RING, FUEL INJECTOR BACK-UP, NO.3
main23258-31010i201812-202211
*584
main23258-36010i201812-202211
*628
23291INSULATOR, INJECTOR VIBRATION
main23291-0V020i201812-202211
*628
main23291-28020i201812-202211
*584
23291AINSULATOR, INJECTOR VIBRATION
main23291-31020i201812-202009
*628,*584
main23291-31020i202009-202211
*584
23470LIFTER ASSY, FUEL PUMP
main23470-25010i201812-202009
*584
main23470-F0010i201812-202211
*628
23477GUIDE, FUEL PUMP LIFTER
main23477-25010i201812-202211
*584
main23477-25010i202009
*584,(J),*628
main23477-F2010i201812-202211
(L),*628
23695ACLAMP, NOZZLE HOLDER
main23695-25010i202009-202211
*584
main23695-25010i201812-202009
*628,*584
23801PPIPE SUB-ASSY, FUEL, NO.1
main23801-25030i201812-202006
*584
sub23801-25050
main23801-25031i202006-202211
*584
main23801-F0010i201812-202006
*628
main23801-F0011i202006-202211
*628
23807PIPE SUB-ASSY, FUEL DELIVERY
main23814-25021i201812-202002
*584
sub23814-25022
main23814-25022i202003-202107
*584
sub23814-25023
main23814-25023i202108-202211
*584
main23814-F0021i201812-201907
*628
sub23814-F0022
main23814-F0022i201908-202107
*628
sub23814-F0023
main23814-F0023i202108-202211
*628
23807VSPACER, NO.1(FOR DELIVERY PIPE)
main23891-25010i202009-202211
*584
main23891-25010i201812-202009
*628,*584
23814BPIPE, FUEL DELIVERY
main23814-25010i201812-202009
*628,*584
sub23814-25011
main23814-25010i202009-202210
*584
sub23814-25011
main23814-25011i202211
*628,*584
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
main23841-31070i201812-202211
23841KCLAMP, FUEL PIPE
main23841-F0010i201812-202211
23851HOLDER, FUEL PRESSURE SENSOR, NO.1
main23851-25020i201812-202211
*584
main23851-F2010i201812-202211
*628
23851AHOLDER, FUEL PRESSURE SENSOR, NO.2
main23851-25030i202009-202211
*584
main23851-25030i201812-202009
*628,*584
main23851-25030i202211-202402
*628
main23851-25030i202402
(J),*628
main23851-F2080i202402
(L),*628
23901TUBE SUB-ASSY, FUEL
main23901-F0120i201812-201905
sub23901-F0121
main23901-F0121i201906-202211
main23901-F0130i201903-201905
main23901-F0131i201906-202211
23910ATUBE SUB-ASSY, FUEL
main23901-F0110i201812-201905
sub23901-F0111
main23901-F0111i201906-202211
7751
8404
9010506350
main90105-06350
9010506352
main90105-06352
9010506376
main90105-06376
9010508510
main90105-08510
90105A0293
main90105-A0293
90105A0300
main90105-A0300
90105A0338
main90105-A0338
90105A0400
main90105-A0400
90105A0411
main90105-A0411
9030105013
main90301-05013
9030131016
main90301-31016
90301A0040
main90301-A0040
9052014004
main90520-14004
91551G0840
main91551-G0840
