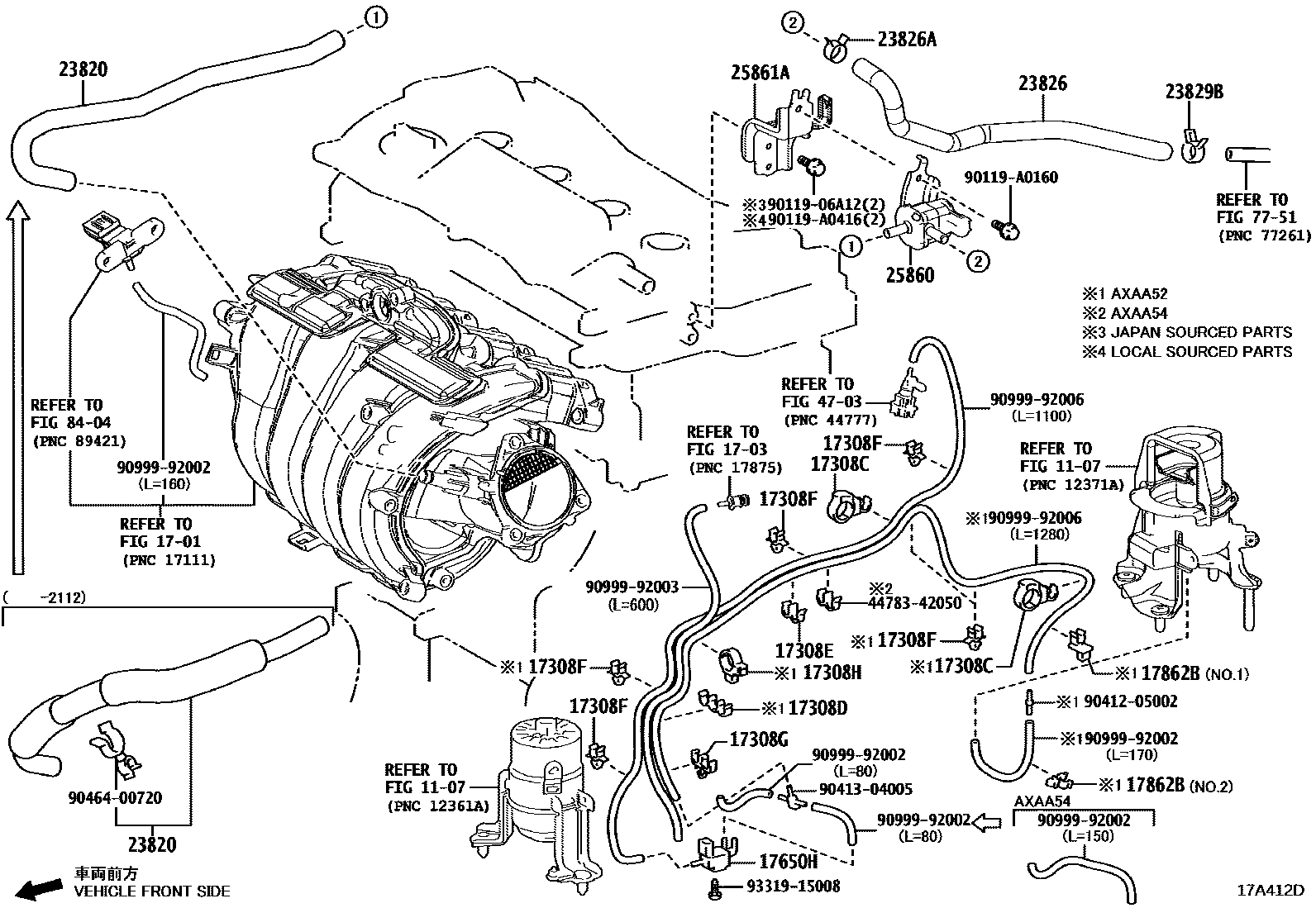

VACUUM PIPING

0001 1 0002 1

1107

1701

1703

17308CCLAMP(FOR VACUUM HOSE)

main44783-33060iA25AFKS..AXAA54201812-202211

17308DCLAMP, NO.2(FOR VACUUM HOSE)

main90464-00074iA25AFKS..AXAA52201812-202211

17308ECLAMP, NO.3(FOR VACUUM HOSE)

main44783-42080iA25AFKS..AXAA5#201812-202211

17308FCLAMP, NO.4(FOR VACUUM HOSE)

main44783-42040iA25AFKS..AXAA52..G,X;A25AFKS..AXAA52..M..USA201812-202211

17308GCLAMP, NO.5(FOR VACUUM HOSE)

main90469-07012iA25AFKS..AXAA5#201812-202211

17308HCLAMP, NO.6(FOR VACUUM HOSE)

main90959-01434iA25AFKS..AXAA52201812-202211

17650HVALVE, VACUUM SWITCHING

main90910-12059iA25AFKS..AXAA5#201812-202211

17862BCLAMP, HOSE

main44783-42040iA25AFKS..AXAA52201812-202211

NO.2:REFER ILLUST.

main44783-42060iA25AFKS..AXAA52..G,X;A25AFKS..AXAA52..M..USA201812-202211

NO.1:REFER ILLUST.

23820HOSE ASSY, FUEL VAPOR FEED

main23820-25110iA25AFXS..AXAH54,AXAL54202112-202201

NO.3:REFER ILLUST.

sub23820-25390

main23820-25390iA25AFXS..AXAH54,AXAL54202201-202211

NO.3:REFER ILLUST.

main23820-F0081iA25AFXS..AXAH54,AXAL54201903-202211

NO.1:REFER ILLUST.

main23820-F0110iA25AFKS..AXAA5#201812-202112

main23820-F0140iA25AFXS..AXAH54,AXAL54201903-202112

NO.3:REFER ILLUST.

main23820-F0150iA25AFXS..AXAH54,AXAL54201903-202211

NO.2:REFER ILLUST.

main23820-F0360iA25AFKS..AXAA54;A25AFKS..AXAA52..G,X;A25AFKS..AXAA52..M..USA202112-202211

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-F0120iA25AFKS..AXAA54;A25AFKS..AXAA52..G,X;A25AFKS..AXAA52..M..USA201812-202211

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96133-41501iA25AFKS..AXAA52..M..CND201812-202211

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-A0013iA25AFXS..AXAH54,AXAL54202112-202211

main90466-A0013iA25AFXS..AXAH54,AXAL54202211

TYPE A:REFER ILLUST.

main96133-41501iA25AFKS..AXAA54;A25AFKS..AXAA52..G,X;A25AFKS..AXAA52..M..USA201812-202211

main96133-41501iA25AFXS..AXAH54,AXAL54202211

TYPE B:REFER ILLUST.

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-F0010iA25AFKS..AXAA5#201812-202211

main25860-F0020iA25AFXS..AXAH54,AXAL54201903-202211

25861ABRACKET, VACUUM SWITCHING VALVE, NO.2

main25862-25011iA25AFKS..AXAA54;A25AFKS..AXAA52..G,X;A25AFKS..AXAA52..M..USA201812-202211

*628,*584

4703

7751

8404

4478342050CLAMP, VACUUM HOSE

main44783-42050

9011906A12

main90119-06A12

90119A0160

main90119-A0160

90119A0416

main90119-A0416

9041205002

main90412-05002

9041304005

main90413-04005

9046400720

main90464-00720

9099992002

main90999-92002

9099992003

main90999-92003

9099992006

main90999-92006

9331915008

main93319-15008

31 parts on this diagram · 2 diagrams in section
