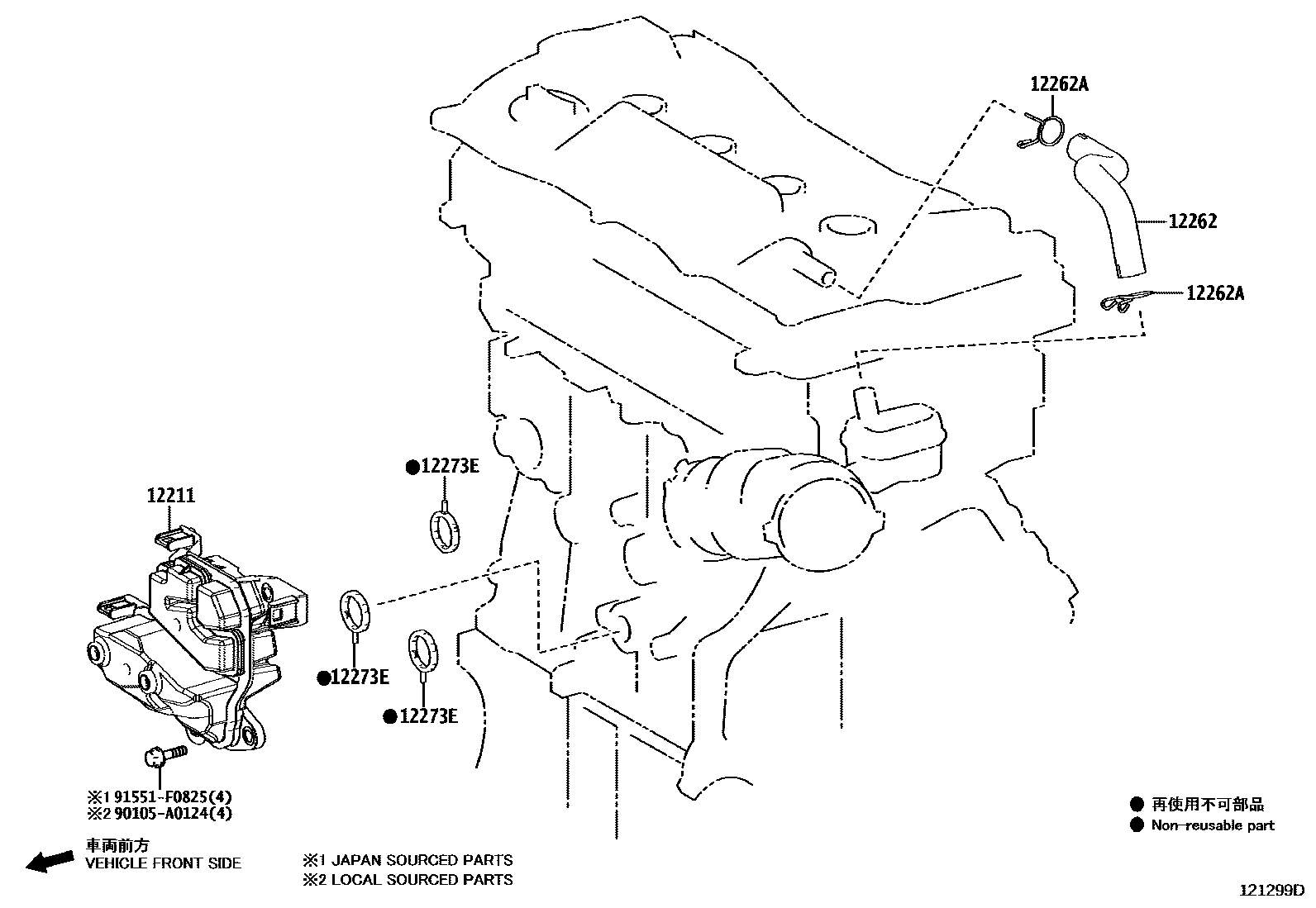

VENTILATION HOSE

0001 1 0002 1

12211CASE, VENTILATION, NO.1

main12211-25010iA25#..AXAA5#,AXAH54,AXAL54201812-202009

*584

sub12211-25011

main12211-25011iA25AFKS..AXAA52..G,X;A25AFKS..AXAA54..G,V202009-202403

*584

main12211-25011iA25AFKS..AXAA54..(G,V)..USA202211-202403

MEXICO SPEC,*584

main12211-F0010iA25#..AXAA5#,AXAH54,AXAL54201812-202009

*628

sub12211-F0011

main12211-F0011iA25#..AXAA5#,AXAH54,AXAL54202009-202208

*628

12262HOSE, VENTILATION, NO.2

main12262-25030iA25AFKS..AXAA5#201812-202211

main12262-25080iA25AFXS..AXAH54,AXAL54201903-202211

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90466-A0028iA25AFKS..AXAA52..G,X;A25AFKS..AXAA52..M..USA;A25#..AXAA54,AXAH54,AXAL54201812-202211

12273EGASKET(FOR VENTILATION CASE)

main12273-24010iA25AFKS..AXAA52..X..USA202211-202403

MEXICO SPEC,*584

main12273-24010iA25AFKS..AXAA54..M,X;A25AFKS..AXAA52..M..USA202009-202403

*584

main12273-24010iA25#..AXAA5#,AXAH54,AXAL54201812-202009

*628,*584

main12273-24010iA25#..AXAA5#,AXAH54,AXAL54202009-202208

*628

90105A0124

main90105-A0124

91551F0825

main91551-F0825

6 parts on this diagram · 2 diagrams in section
