CYLINDER HEAD

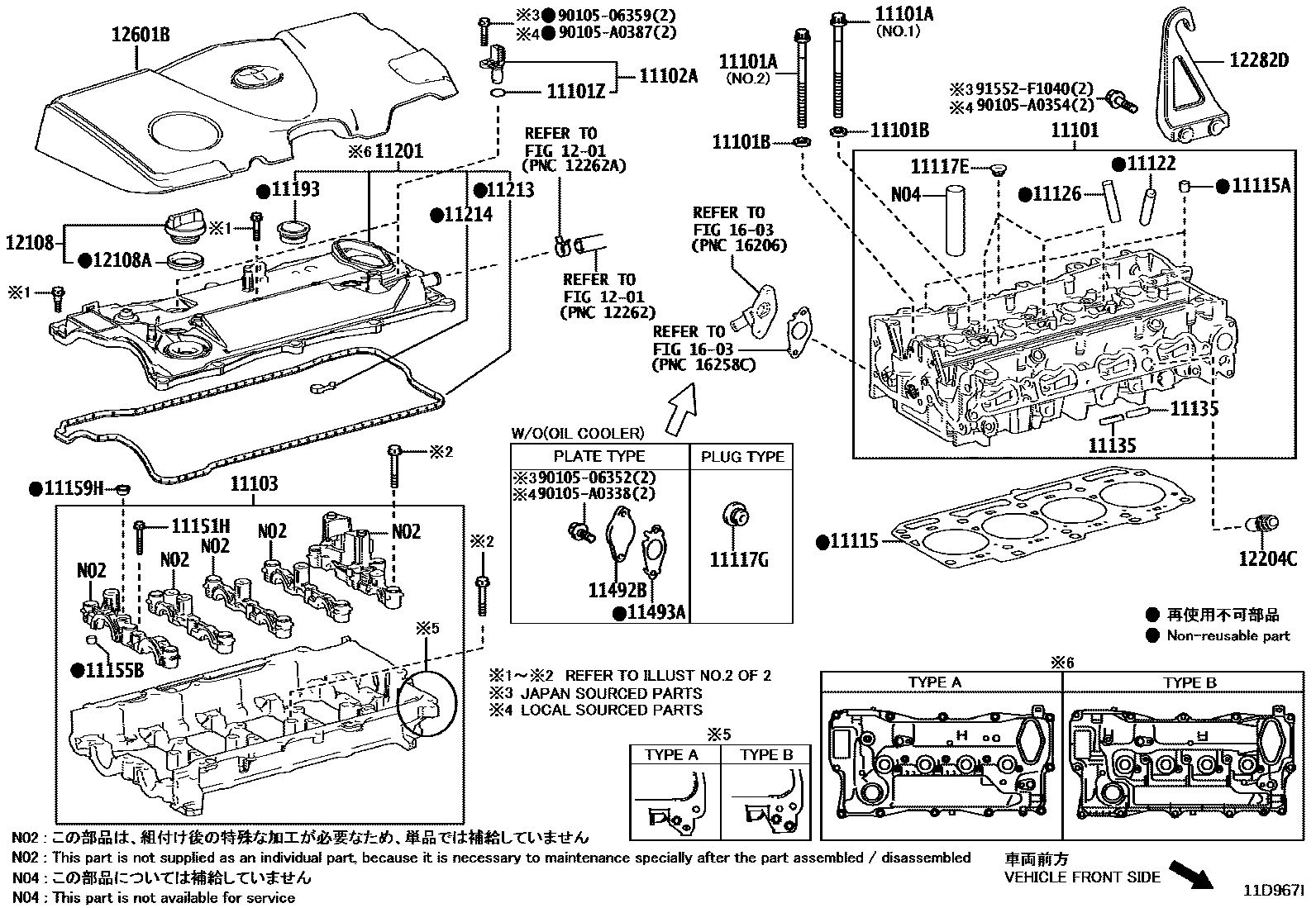

Parts diagram
11101HEAD SUB-ASSY, CYLINDER
main11101-29625i¥134,000201812-202004
*584,(J),*628
sub11101-29626¥112,000
main11101-29626i¥112,000202004-202105
*584
sub11101-29627¥101,000
main11101-29627i¥101,000202105-202405
*584
main11101-29627i¥101,000202405
(J),*584
main11101-F9000i201812-202003
(L),*628
sub11101-F9001
main11101-F9001i202003-202009
(L),*628
sub11101-F9002
main11101-F9001i202009-202203
*628
sub11101-F9002
main11101-F9002i202203-202211
*628
main11101-F9130i202405
(L),*584
11101ABOLT(FOR CYLINDER HEAD SET)
main90910-02201i¥360201812-202211
*584,NO.1:REFER ILL.
main90910-02202i¥310201812-202211
*584,NO.2:REFER ILL.
main90910-A2018i201812-202211
*628,NO.1:REFER ILL.
main90910-A2019i201812-202211
*628,NO.2:REFER ILL.
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
main90201-12079i¥100201812-202009
*628,*584
main90201-12079i¥100202009-202211
*584
main90201-12079i¥100202009-202211
*628
11101ZO RING, CAM POSITION SENSOR
main90301-11038i¥0202009-202211
*628
main90301-11038i¥0201812-202009
*628,*584
main90301-11038i¥0202009-202211
*584
11102ASENSOR, CAMSHAFT POSITION
main90919-05096i¥4,130201812-202211
*584
main90919-A5007i201812-202211
*628
11103HOUSING SUB-ASSY, CAMSHAFT
main11103-25010i201812-201902
*584
sub11103-25011
main11103-25011i201903-202007
*584T/P A:REF.ILLUST
sub11103-25080
sub25625-25030¥2,970
main11103-25080i202009-202211
*584
main11103-25080i202007-202009
*584T/P B:REF.ILLUST
main11103-25090i¥23,900202211
*584
main11103-F0020i201812-201902
*628
sub11103-F0021
main11103-F0021i201903-202004
*628T/P A:REF.ILLUST
sub11103-F0050
sub25625-F0020
main11103-F0030i201903-201904
*628
sub11103-F0031
main11103-F0031i201904-202004
*628T/P A:REF.ILLUST
sub11103-F0060
sub25625-F0020
main11103-F0050i202009-202211
*628
main11103-F0050i202004-202009
*628T/P B:REF.ILLUST
main11103-F0060i202009-202211
*628
main11103-F0060i202004-202009
*628T/P B:REF.ILLUST
11115GASKET, CYLINDER HEAD
main11115-25050i¥5,800201812-202211
*584
main11115-F0010i201812-202211
*628
11115APIN, RING
main90253-12002i¥50202009-202211
*584
main90253-12002i¥50202009-202211
*628
main90253-12002i¥50201812-202009
*628,*584
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
main90341-14015i¥120201812-202211
*584
main90341-14015i¥120202211
(J),*584
main90341-14015i¥120201812-202003
(J),*628
main90341-A0005i202009-202211
*628
main90341-A0005i201812-202009
(L),*628
main90341-C0012i202405
(L),*584
11117GPLUG, W/HEAD STRAIGHT SCREW, NO.3
main90341-24006i¥230202003-202112
*628
main90341-24006i¥230202004-202111
*584
main90341-24006i¥230202009-202211
*628,*584
11122BUSH, INTAKE VALVE GUIDE
main11122-31070i¥610201812-201907
STD,*584
main11122-31090i¥550201812-202009
STD,*628
main11122-31090i¥550201907-202009
STD,*584
main11122-31090i¥550202211
STD,*628,*584
main11123-31070i¥620201812-201907
O/S 0.05,*584
sub11123-31090¥550
main11123-31090i¥550201907-202009
O/S 0.05,*584
main11123-31090i¥550201812-202009
O/S 0.05,*628
main11123-31090i¥550202211
O/S 0.05,*628,*584
11126BUSH, EXHAUST VALVE GUIDE
main11122-31041i¥610201812-202211
STD,*584
sub11122-47010¥550
main11122-F0010i201812-202211
STD,*628
main11123-31041i¥620201812-202401
O/S 0.05,*584
sub11123-47010¥550
main11123-47010i¥550202401
O/S 0.05,*584
main11123-F0010i201812-202211
O/S 0.05,*628
11135SEAT, EXHAUST VALVE
main11135-25020i¥760201812-202211
STD,*584
main11135-25020i¥760201812-202009
STD,(J),*628
main11135-25020i¥760202009-202211
STD,*628
main11135-25020i¥760202009
STD,*628,*584
main11135-F0010i201812-202004
STD,(L),*628
main11136-25020i¥760202009-202211
O/S 0.03,*628
main11136-25020i¥760201812-202211
O/S 0.03,*584
main11136-25020i¥760202009
O/S 0.03,*628,*584
main11136-F0010i201812-202009
O/S 0.03,*628
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
main90119-07009i¥90201812-202211
*584
main90119-A0302i201812-202211
*628
11155BPIN, RING
main90253-13005i¥50201812-202211
*584
main90253-13005i¥50201812-202211
*628
main90253-13005i¥50202009
*628,*584
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
main11159-31040i¥340201812-202211
*628
main11159-31040i¥340201812-202211
*584
main11159-31040i¥340202009
*628,*584
11193GASKET, SPARK PLUG TUBE
main11193-37030i¥230201812-202211
*584
main11193-37030i¥230201812-201901
*628
main11193-F0010i201902-202211
*628
11201COVER SUB-ASSY, CYLINDER HEAD
main11201-25032i¥11,800201812-202005
*584
sub11201-25033¥8,800
main11201-25033i¥8,800202006-202211
*584
main11201-25033i¥8,800202211-202406
*584T/P A:REF.ILLUST
main11201-25090i¥8,800202406
*584T/P B:REF.ILLUST
main11201-F0011i201812-202005
*628
sub11201-F0012
main11201-F0012i202211-202412
*628T/P A:REF.ILLUST
sub11201-F0060
main11201-F0012i202006-202211
*628
sub11201-F0060
main11201-F0060i202412
*628T/P B:REF.ILLUST
11213GASKET, CYLINDER HEAD COVER
main11213-25020i¥700202009-202211
*584
main11213-25020i¥700202009-202211
*628
main11213-25020i¥700201812-202009
*628,*584
11214GASKET, CYLINDER HEAD COVER, NO.2
main11213-31080i¥370201812-202009
*628,*584
main11213-31080i¥370202009-202211
*584
main11213-31080i¥370202009-202211
*628
11492BPLATE, WATER SEAL
main11492-25010i¥980201812-202003
*628
main11492-25010i¥980201812-202004
*584
11493AGASKET, WATER SEAL PLATE
main16258-25010i¥270201812-202004
*584
main16258-F0010i201812-202003
*628
1201
12108CAP SUB-ASSY, OIL FILLER
main12180-38010i¥640202009-202211
*584
main12180-38010i¥640201812-202009
*628,*584
main12180-38010i¥640202009-202211
*628
12108AGASKET(FOR OIL FILLER CAP)
main90430-35001i¥120202009-202211
*584
main90430-35001i¥120201812-202009
*628,*584
main90430-35001i¥120202009-202211
*628
12204CVALVE SUB-ASSY, VENTILATION
main12204-25010i¥800202107-202211
*628
main12204-25010i¥800201812-202211
*584
main12204-25010i¥800202211
*628,*584
main12204-F0010i201812-202107
*628
sub12204-25010¥800
12282DHANGER, ENGINE, NO.2
main12282-25010i¥4,190201812-202009
*628,*584
main12282-25010i¥4,190202009-202211
*584
main12282-25010i¥4,190202009-202211
*628
12601BCOVER SUB-ASSY, ENGINE, NO.1
main12601-F0040i201812-202211
1603
9010506352
main90105-06352¥60
9010506359
main90105-06359¥60
90105A0338
main90105-A0338
90105A0354
main90105-A0354
90105A0387
main90105-A0387
91552F1040
main91552-F1040¥120

35 parts on this diagram · 2 diagrams in section
