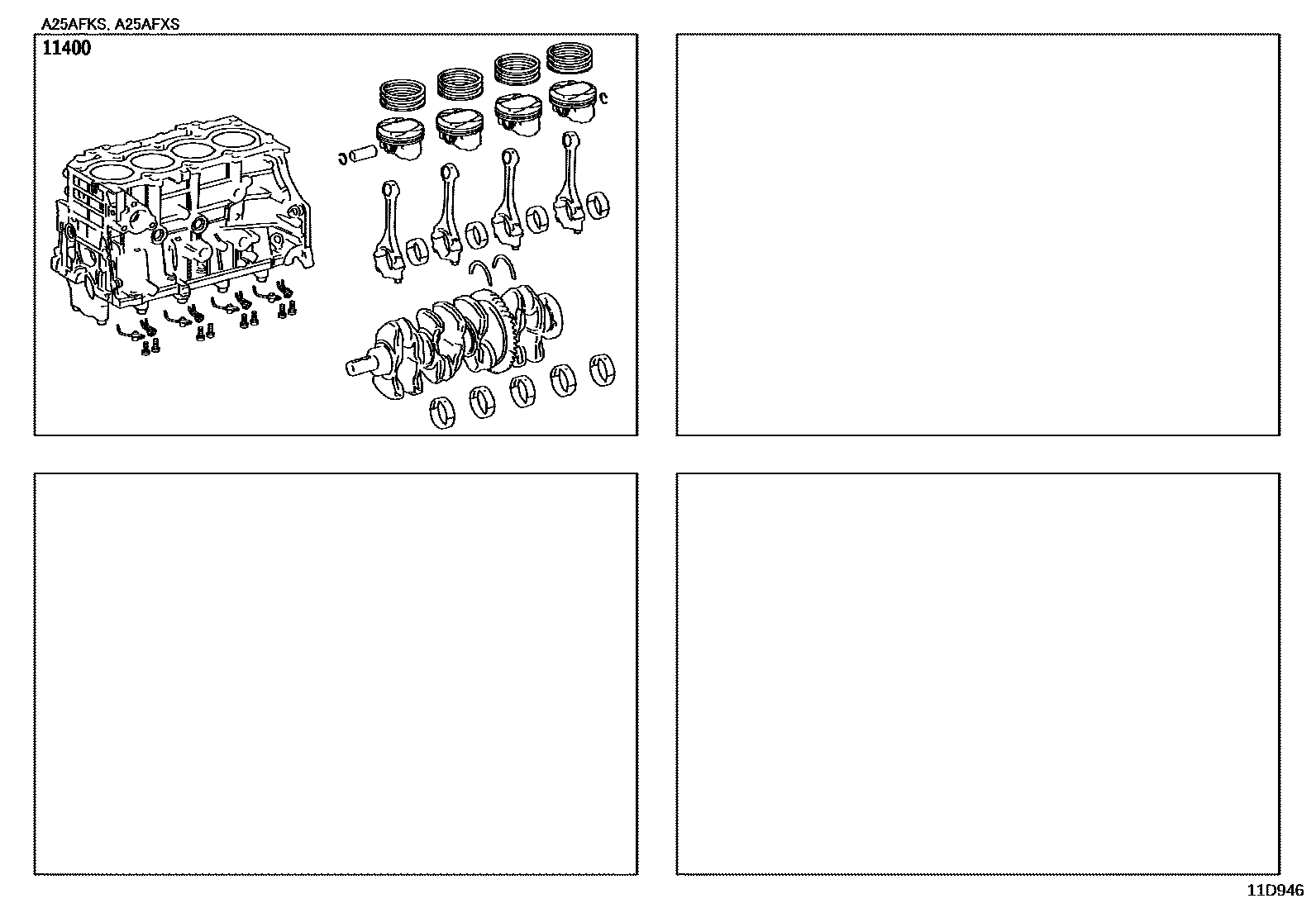

SHORT BLOCK ASSEMBLY

11400BLOCK ASSY, SHORT

main11400-25140iA25AFKS..AXAA5#201912-202112

*584

main11400-25140iA25AFKS..AXAA5#201812-201912

(J)

main11400-F0011iA25AFKS..AXAA5#..G,M,X202112-202208

sub11400-F0150

main11400-F0011iA25AFKS..AXAA5#201912-202112

*628

sub11400-F0150

main11400-F0011iA25AFKS..AXAA5#201812-201912

(L)

sub11400-F0150

main11400-F0030iA25AFKS..AXAA54..G..USA;A25AFKS..AXAA52..(M,X)..USA202112-202208

*628

main11400-F0030iA25AFKS..AXAA54..V202112-202208

MEXICO SPEC,*628

main11400-F0040iA25AFXS..AXAH54,AXAL54201903-202208

sub11400-F0120

main11400-F0120iA25AFXS..AXAH54,AXAL54202208-202211

main11400-F0140iA25AFKS..AXAA54..G..USA;A25AFKS..AXAA52..(M,X)..USA202208-202211

MEXICO SPEC,*628

main11400-F0140iA25AFKS..AXAA54..G..USA;A25AFKS..AXAA52..(M,X)..USA202211

MEXICO SPEC

main11400-F0140iA25AFKS..AXAA54..V202208-202211

*628

main11400-F0150iA25AFKS..AXAA52..G,X;A25AFKS..AXAA54..G,M,X;A25AFKS..AXAA52..M..USA202208

1 parts on this diagram · 1 diagram in section
