STANDARD TOOL

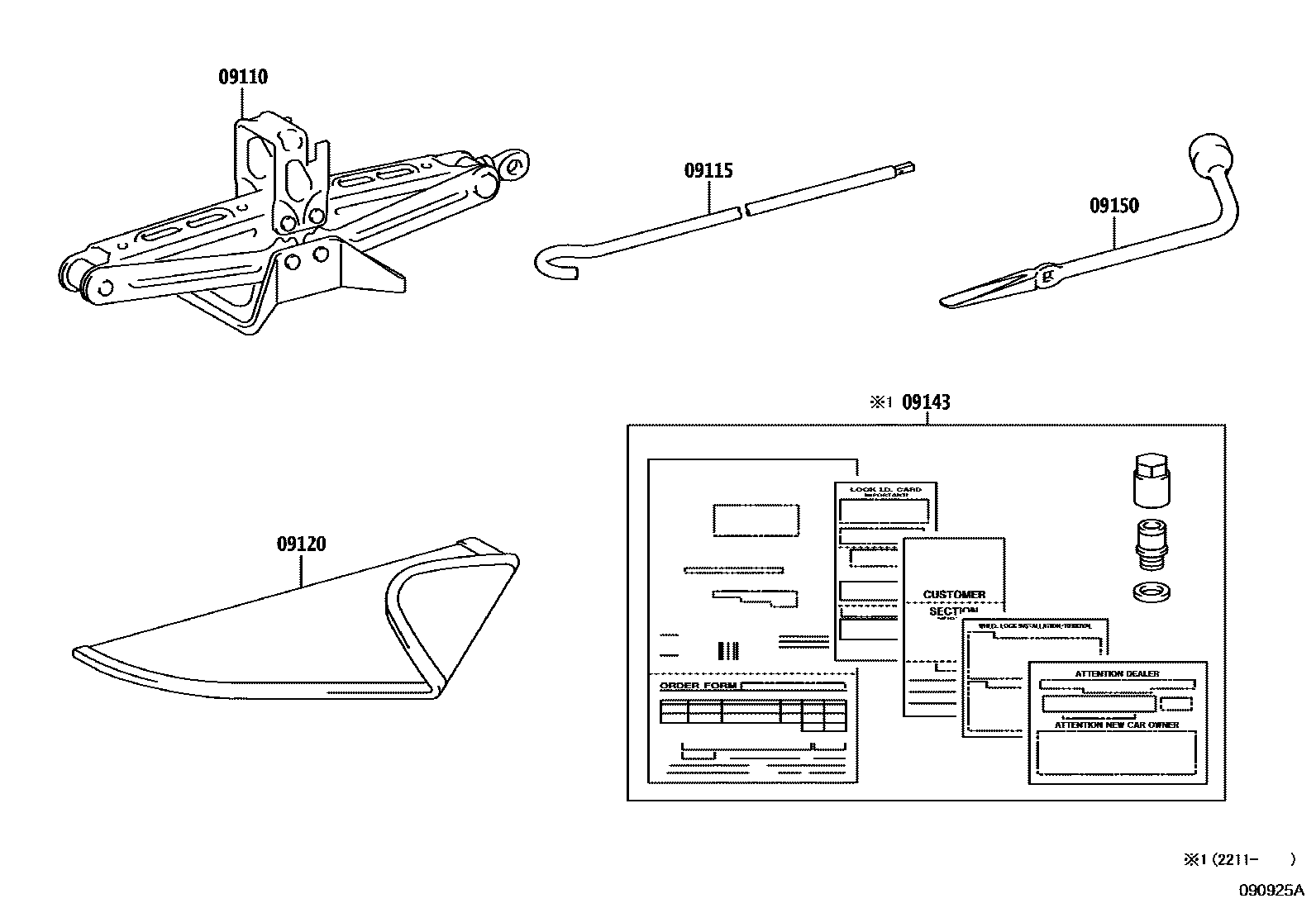

Parts diagram

09110JACK ASSY

main09111-0R040i201812-202211

09115ROD SUB-ASSY, JACK HANDLE

main09115-0R010i201812-202211

09120BAG, TOOL

main09120-0R030i201812-202211

09143WRENCH, SOCKET

main09143-YY070

main09143-YY110

09150WRENCH, HUB NUT BOX

main09150-06010i201812-202211

5 parts on this diagram · 1 diagram in section
