ANTENNA

0001 1 0002 1 0003 1

86101CORD SUB-ASSY, ANTENNA

main86101-0R030iASA42..(LIMD,SE)..CND201301-201709

main86101-0R172iASA4#..LE..CND201312-201407

AUDIO-*DA & ENTUNE

main86101-0R172iASA4#..LIMD,XLE201312-201407

AUDIO-*DA

main86101-0R173iASA4#..LE..CND201407-201511

AUDIO-*DA

main86101-0R173iASA4#..LE..CND201407-201511

AUDIO-*DA & ENTUNE

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-0R240iASA4#..LIMD,XLE201301-201504

main86101-0R250iASA4#..LIMD,XLE201312-201504

AUDIO-*DA

main86101-0R250iASA4#..LIMD,XLE201312-201504

AUDIO-*DA & ENTUNE

main86101-0R400iASA42..(LIMD,SE)..CND201511-201709

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-0R200iASA4#..LIMD,XLE201301-201504

main86101-0R201iASA4#..(LIMD,XLE)..USA201504-201511

PUERTORICO SPEC&AUDIO-*DA

main86101-0R201iASA4#..LE201504-201511

MEXICO SPEC&AUDIO-*DA

main86101-0R201iASA4#..LE201504-201511

MEXICO SPEC&AUDIO-AVN

main86101-0R201iASA4#..LE201504-201511

MEXICO SPEC&AUDIO-AVN & JBL

main86101-0R201iASA4#..LE201504-201511

PUERTORICO SPEC&AUDIO-AVN

main86101-0R201iASA4#..LE201504-201511

PUERTORICO SPEC&AUDIO-AVN & JBL

main86101-0R210iASA4#..LE..CND201312-201504

AUDIO-*DA & ENTUNE

main86101-0R210iASA4#..LE..USA201312-201504

AUDIO-*DA

main86101-0R211iASA4#..LIMD,XLE201504-201511

AUDIO-*DA & ENTUNE

main86101-0R211iASA4#..LE..USA201504-201511

AUDIO-*DA

main86101-0R420iASA44;ASA42..USA;ASA42..(LE,XLE)..CND201511-201709

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-0R010iASA4#..LE201301-201504

main86300-0R011iASA4#..(LIMD,XLE)..USA201504-201511

PUERTORICO SPEC&AUDIO-AVN & JBL

main86300-0R011iASA4#..(LIMD,XLE)..USA201504-201511

PUERTORICO SPEC&AUDIO-*DA

main86300-0R011iASA4#..LIMD..USA201504-201511

MEXICO SPEC&AUDIO-*DA

main86300-0R011iASA4#..LIMD..USA201504-201511

MEXICO SPEC&AUDIO-AVN

main86300-0R011iASA4#..LIMD..USA201504-201511

MEXICO SPEC&AUDIO-AVN & JBL

main86300-0R011iASA4#..LIMD..USA201504-201511

PUERTORICO SPEC&AUDIO-AVN

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-02090iASA4#..LE..USA201312-201511

AUDIO-*DA & ENTUNE

main86309-02090iASA4#..LE..CND201312-201511

AUDIO-*DA

main86309-0R010iASA4#..LIMD,XLE201301-201511

86396NUT, ANTENNA

main86396-47010iASA4#201301-201511

86960ANTENNA ASSY, SATELLITE RADIO

main86960-0R011iASA4#..LIMD,XLE201312-201504

AUDIO-*DA

main86960-0R011iASA4#..LE..CND201312-201504

AUDIO-*DA & ENTUNE

main86960-0R012iASA4#..LIMD,XLE201504-201511

AUDIO-*DA & ENTUNE

main86960-0R012iASA4#..LE..CND201504-201511

AUDIO-*DA

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

8271542F50BRACKET,WIRING HARNESS CLAMP

main82715-42F50

8271542F60BRACKET,WIRING HARNESS CLAMP

main82715-42F60

9008011545

main90080-11545

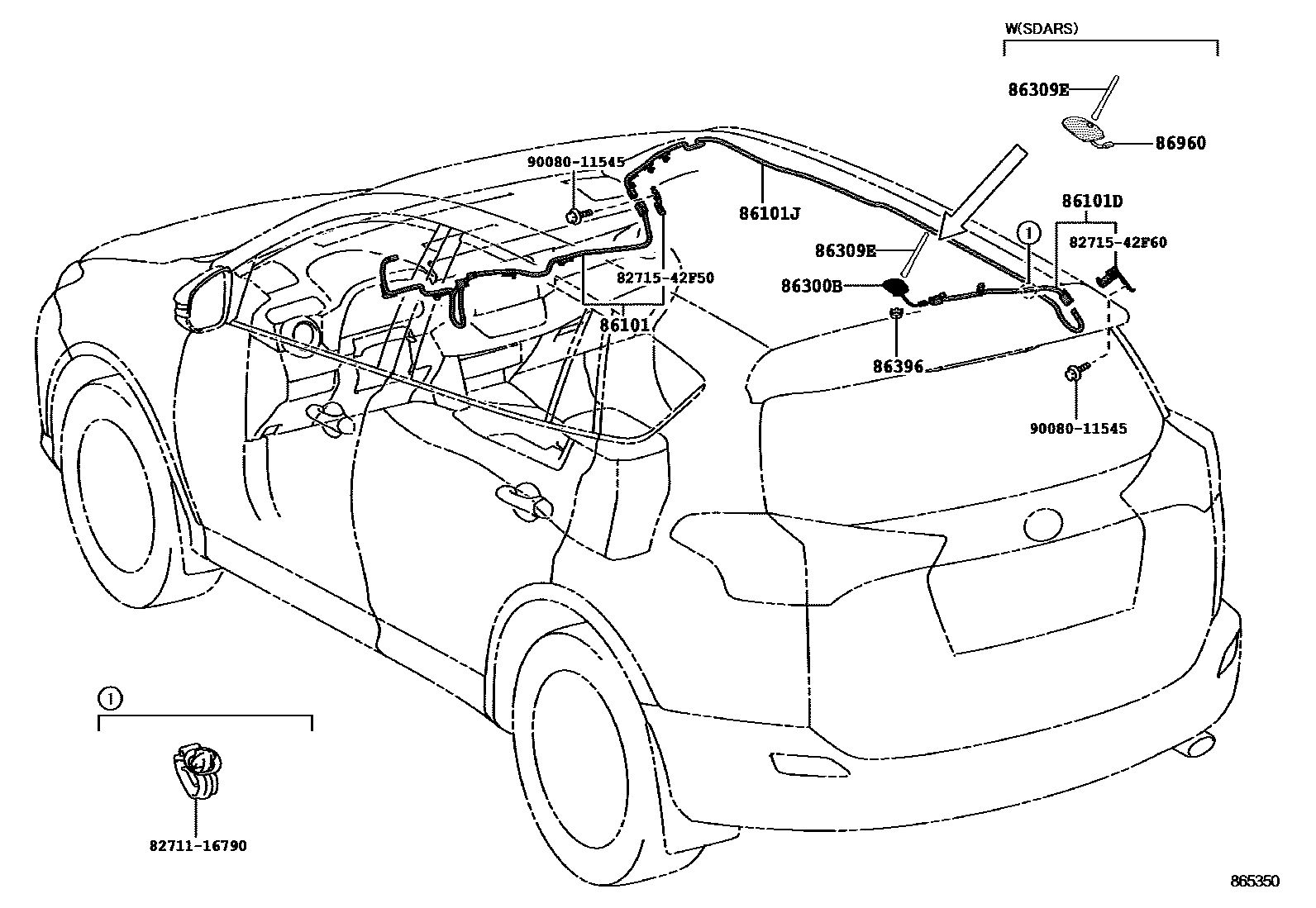

11 parts on this diagram · 3 diagrams in section
