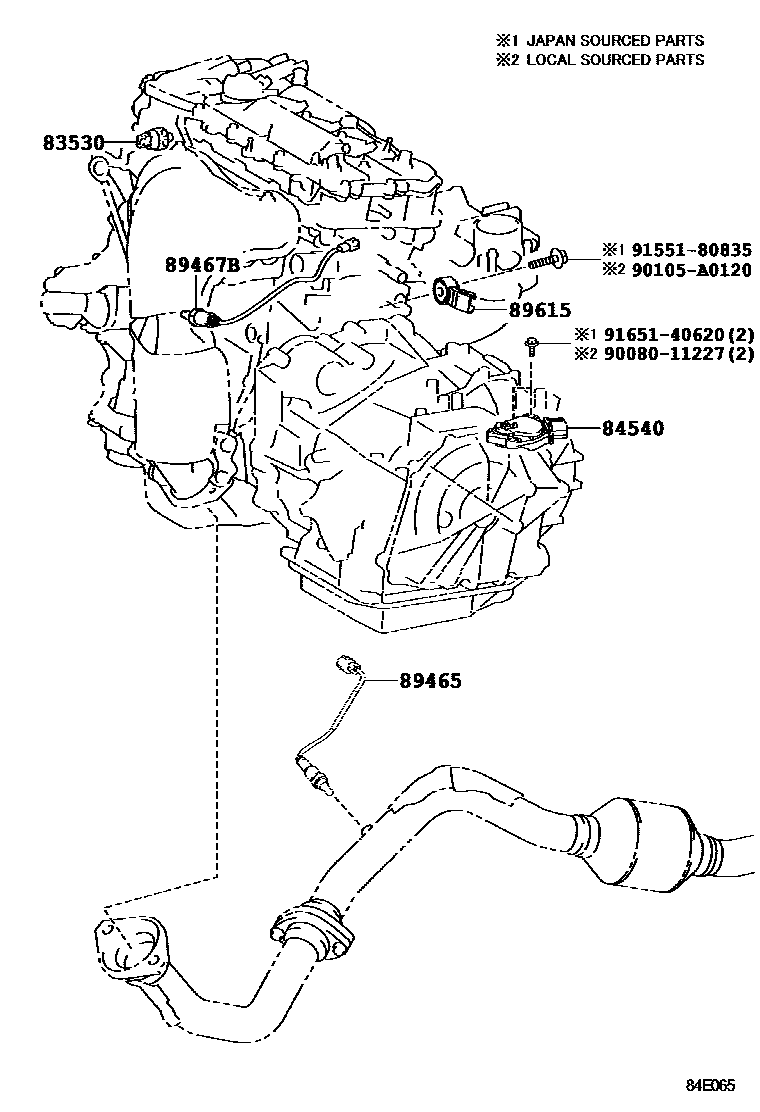

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-0E010iASA44;ASA42..USA;ASA42..(LE,XLE)..CND201301-201709

(L)

main83530-28020iASA42..(LIMD,SE)..CND201301-201709

(J)

84540SWITCH ASSY, NEUTRAL START

main84540-07010iASA4#201301-201511

(L)

main84540-33010iASA4#201301-201811

(J)

89465SENSOR, OXYGEN

main89465-0R040iASA42..(LIMD,SE)..CND201301-201709

89467BSENSOR, AIR FUEL RATIO

main89467-0R050iASA42..(LIMD,SE)..CND201301-201709

(L)

main89467-21020iASA4#201301-201709

(J)

89615SENSOR, KNOCK CONTROL

main89615-06010iASA42..(LIMD,SE)..CND201301-201709

(L)

main89615-20090iASA44;ASA42..USA;ASA42..(LE,XLE)..CND201301-201709

(J)

9008011227

main90080-11227

90105A0120

main90105-A0120

9155180835

main91551-80835

9165140620

main91651-40620

9 parts on this diagram · 10 diagrams in section
