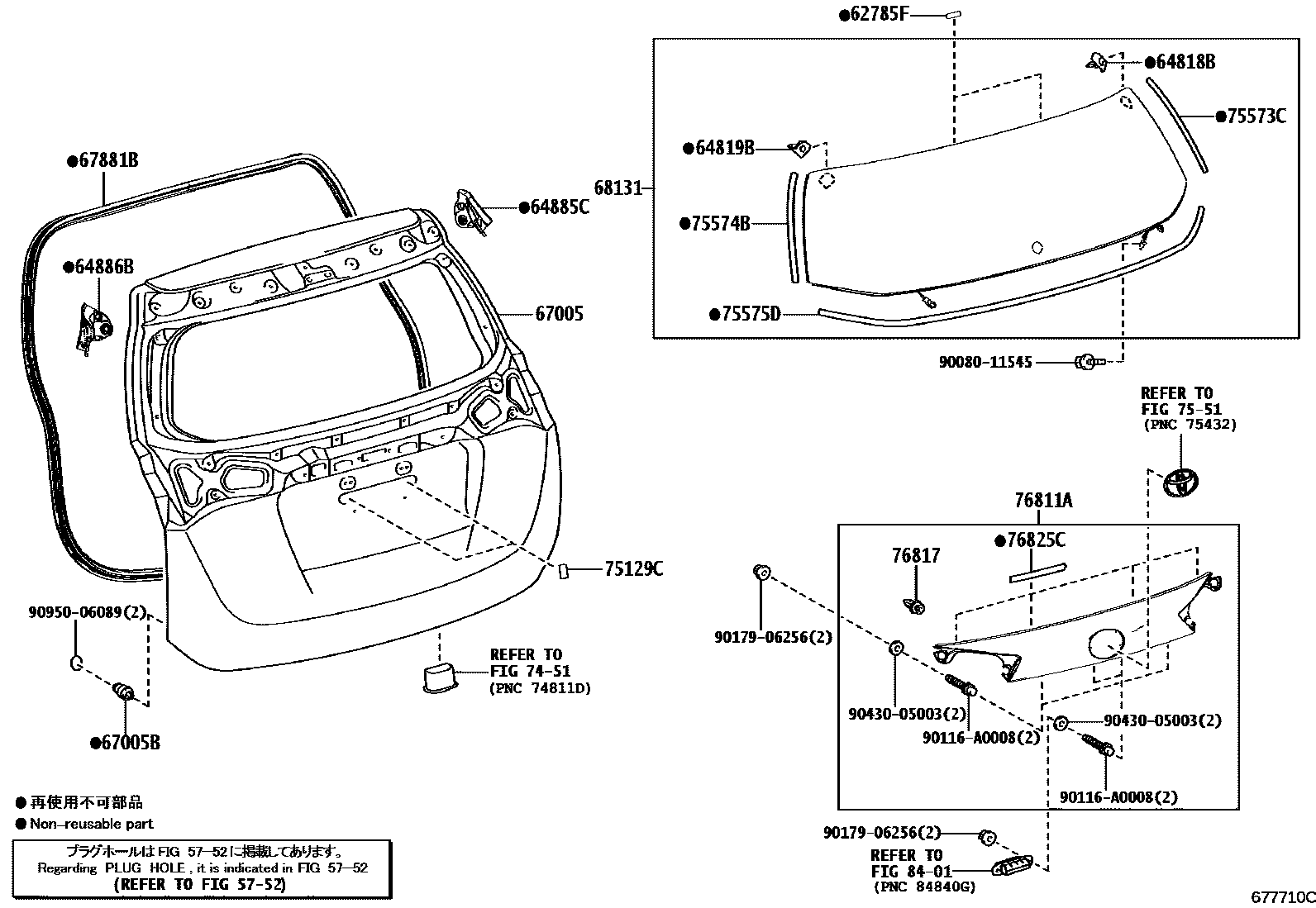

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL 0003 1DOOR TRIM

5752

62785FSPACER, BACK DOOR GLASS

main62785-0R010iASA4#201301-201805

main62785-60030iASA4#201806

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-0R030iASA4#201301-201709

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-0R030iASA44;ASA42..USA;ASA42..(LE,XLE)..CND201301-201709

64885CCHANNEL, BACK DOOR GLASS, RH

main64885-0R010iASA4#201301-201709

64886BCHANNEL, BACK DOOR GLASS, LH

main64886-0R010iASA4#201301-201709

67005PANEL SUB-ASSY, BACK DOOR

main67005-0R110iASA4#..LE,XLE201301-201511

main67005-0R120iASA4#..LIMD201301-201511

main67005-0R210iASA44..SE,XLE;ASA42..XLE..CND;ASA42..(SE,XLE)..USA201511-201709

POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)

main67005-0R230iASA44..LE,SE,XLE;ASA42..(LE,XLE)..CND;ASA42..(LE,SE,XLE)..USA201511-201709

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09142iASA4#201301-201709

67881BWEATHERSTRIP, BACK DOOR, UPPER RH

main67881-0R030iASA4#201301-201709

68131GLASS, BACK DOOR

main68105-0R040iASA4#..LE201301-201511

main68105-0R050iASA4#..LIMD,XLE201301-201511

REAR SIDE GLASS-REINFORCED(GRAY)

main68105-0R050iASA42..(LIMD,SE)..CND201511-201709

7451

75129CCUSHION, REAR LICENCE PLATE

main75129-AC010iASA4#201301-201709

7551

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-0R030iASA4#201301-201709

75574BMOULDING, BACK WINDOW, OUTSIDE LH

main75574-0R040iASA4#201301-201709

75575DMOULDING, BACK WINDOW, LOWER

main75575-0R030iASA4#201301-201709

76811AGARNISH, BACK DOOR, OUTSIDE

main76811-0R900iASA4#201301-201511

PAINT REQ.

76817CLIP, BACK DOOR OUTSIDE GARNISH

main90467-A0005iASA4#201301-201709

76825CPROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-0R030iASA42..(LIMD,SE)..CND201301-201709

8401

9008011545

main90080-11545

90116A0008

main90116-A0008

9017906256

main90179-06256

9043005003

main90430-05003

9095006089

main90950-06089

25 parts on this diagram · 3 diagrams in section
