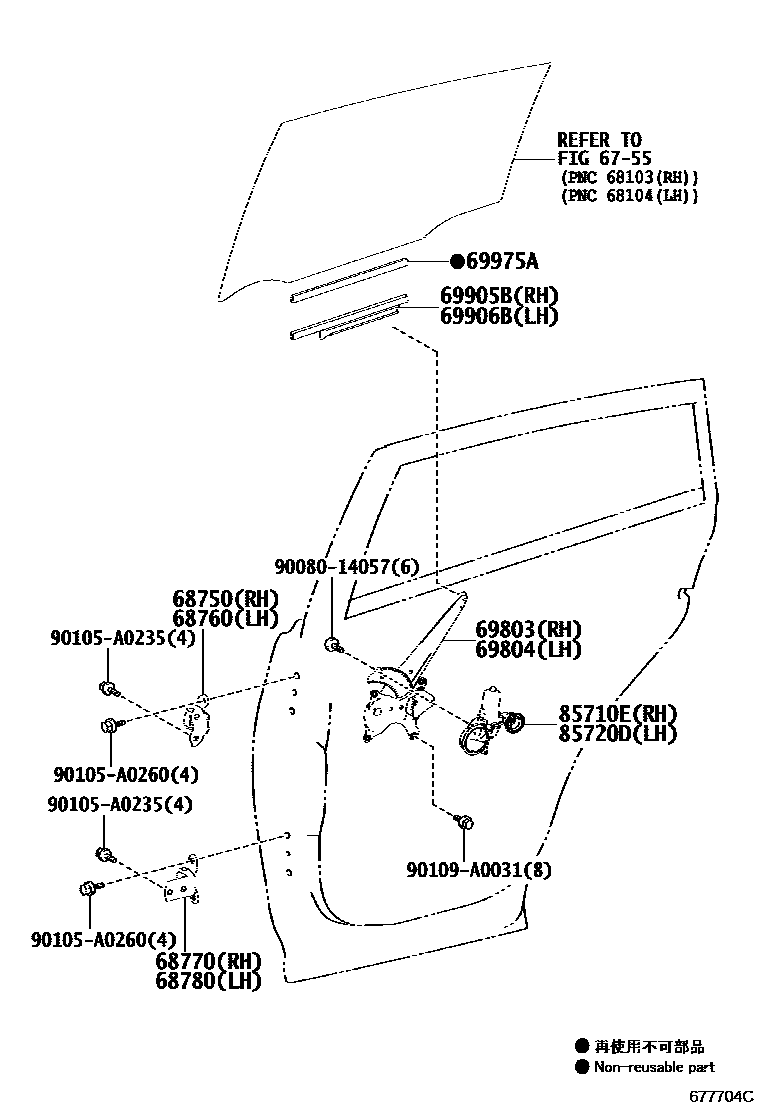

REAR DOOR WINDOW REGULATOR & HINGE

6755

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-06010iASA4#201301-201511

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-06010iASA4#201301-201511

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-02050iASA4#201301-201511

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-02050iASA4#201301-201511

sub68780-52030

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-0R030iASA4#201301-201511

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-0R030iASA4#201301-201511

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-0R030iASA4#201301-201511

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-0R030iASA4#201301-201511

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-0R020×2iASA4#201301-201511

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-AE010iASA4#201301-201511

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-AE010iASA4#201301-201511

9008014057

main90080-14057

90105A0235

main90105-A0235

90105A0260

main90105-A0260

90109A0031

main90109-A0031

16 parts on this diagram · 1 diagram in section
