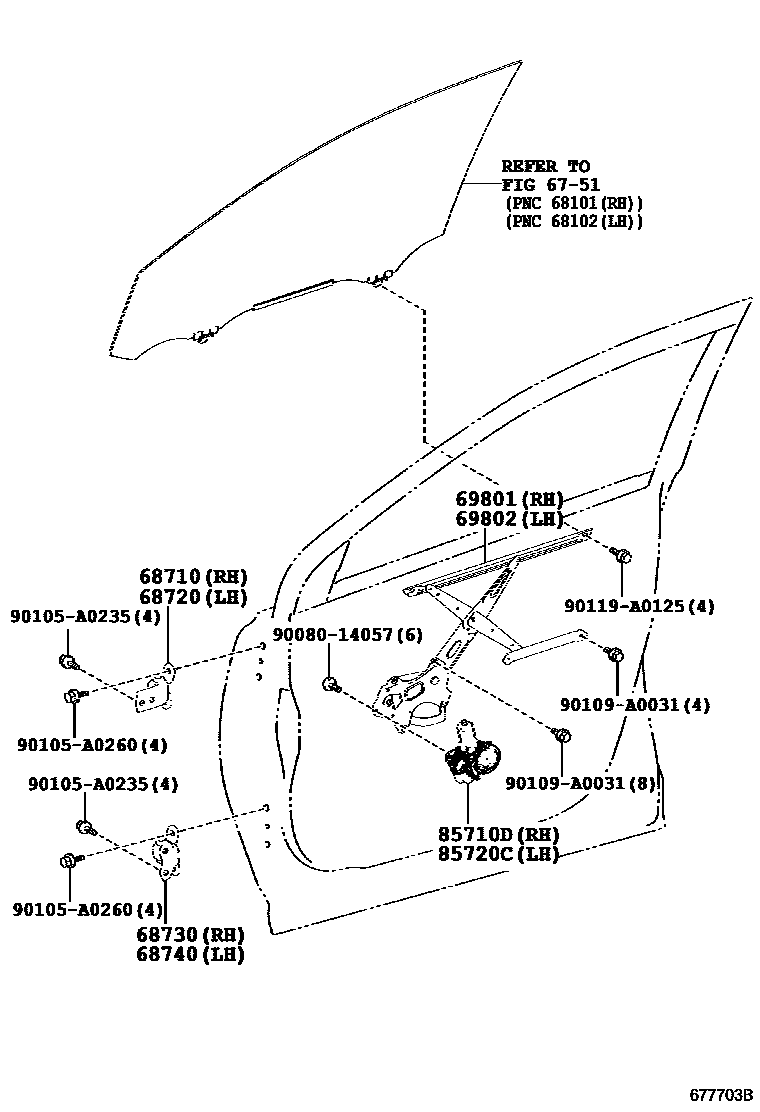

FRONT DOOR WINDOW REGULATOR & HINGE

6751

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02020iASA4#201301-201811

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02020iASA4#201301-201811

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02080iASA4#201301-201811

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02080iASA4#201301-201811

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0R030iASA4#201301-201709

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0R030iASA4#201301-201709

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-AE010iASA4#201301-201709

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0R050iASA4#..LIMD,XLE201301-201511

main85720-0R060iASA42..XLE..CND;ASA44..LIMD,SE,XLE;ASA42..(LIMD,SE,XLE)..USA201511-201709

main85720-AE010iASA4#..LE201301-201511

9008014057

main90080-14057

90105A0235

main90105-A0235

90105A0260

main90105-A0260

90109A0031

main90109-A0031

90119A0125

main90119-A0125

14 parts on this diagram · 1 diagram in section
