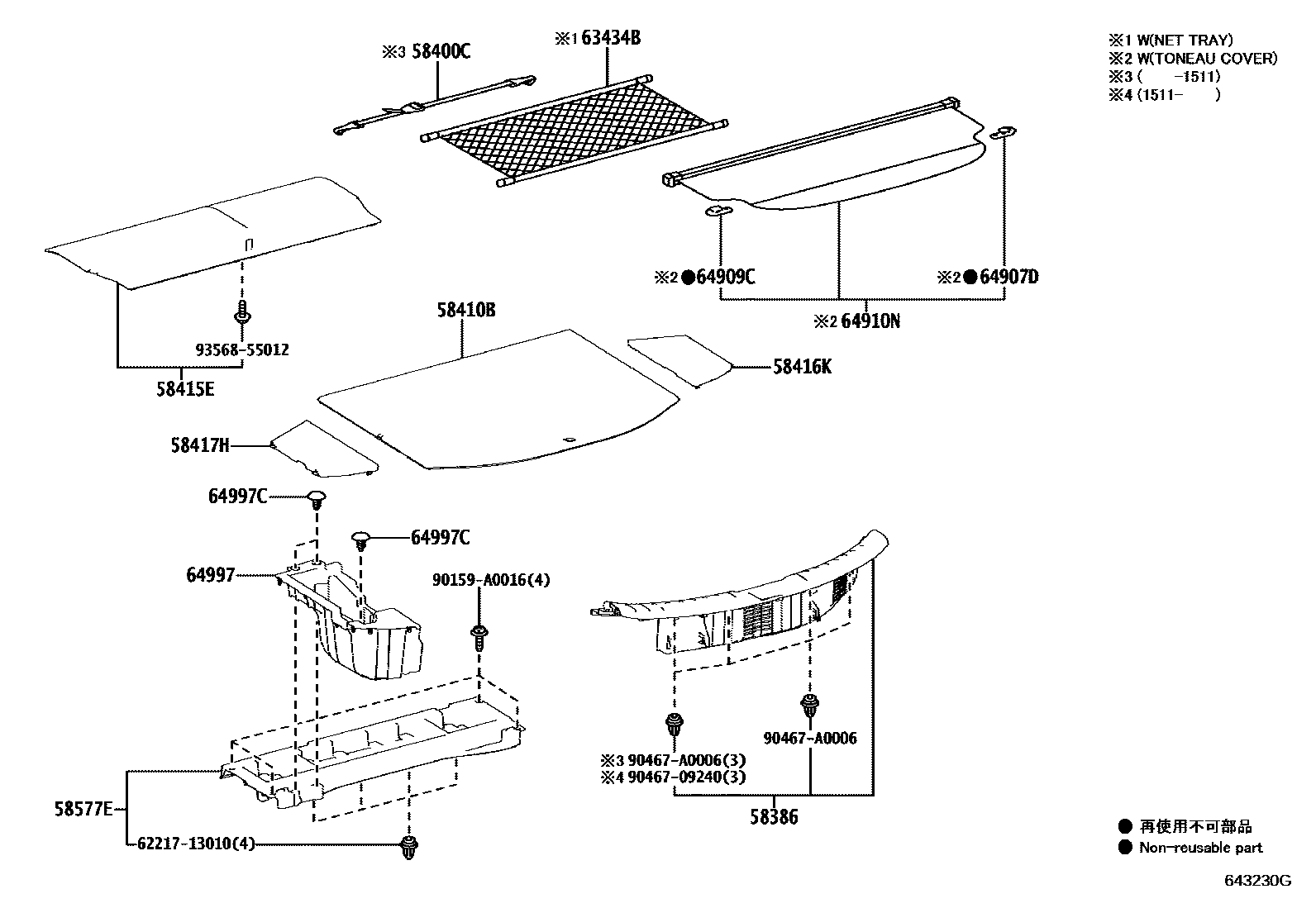

DECK BOARD & DECK TRIM COVER

0001 1SPARE TIRE-TEMPORARY 0002 1SPARE TIRE-GROUND

58386PLATE, REAR FLOOR FINISH

main58387-0R040-C0iASA4#..LIMD201301-201511

BLACK,TRIM1#,2#,4#

main58387-0R040-C0iASA4#..LIMD201301-201511

BLACK,TRIM1#,2#,3#,4#

main58387-0R070-C0iASA42..(LIMD,SE)..CND201511-201709

BLACK,TRIM1#,2#,3#,4#

main58387-0R070-C0iASA4#..LE201511

BLACK,TRIM2#

main58387-42080-C0iASA4#..LIMD..USA201301-201609

SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,3#,4#

main58387-42080-C0iASA4#..LE..USA201511

SPARE TIRE-GROUND TIRE,BLACK,TRIM2#

main58387-42080-C0iASA4#..LIMD..USA201301-201511

SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,4#

58400CBELT ASSY, LUGGAGE HOLD

main64230-08011iASA4#201301-201511

58410BBOARD ASSY, DECK

main58410-0R030-C1iASA4#..LIMD,SE,XLE201301-201811

BLACK,TRIM1#,2#,3#,4#

main58410-0R030-C1iASA4#..LE,XLE201301-201511

BLACK,TRIM1#,2#,4#

main58410-0R030-C1iASA4#..LE201511-201811

BLACK,TRIM2#

main58410-42060-C2iASA4#..LIMD..USA201301-201511

SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,3#,4#

main58410-42060-C2iASA4#..(LE,XLE)..USA201301-201511

SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,4#

main58410-42100-C0iASA44..(LIMD,XLE)..USA;ASA42..(LIMD,SE,XLE)..USA201511-201811

SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,3#,4#

main58410-42100-C0iASA4#..LE..USA201511-201811

SPARE TIRE-GROUND TIRE,BLACK,TRIM2#

58415EBOARD, REAR FLOOR, NO.1

main58415-0R030-C1iASA4#..LE,XLE201301-201511

BLACK,TRIM1#,2#,4#

sub58415-0R030

main58415-0R030-C1iASA4#..LIMD201301-201511

BLACK,TRIM1#,2#,3#,4#

sub58415-0R030

main58415-0R030-C2iASA44..SE..USA201511-201609

SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,3#,4#

sub58415-0R030

main58415-0R030-C2iASA4#..LE201511-201811

BLACK,TRIM2#

sub58415-0R030

main58415-0R030-C2iASA4#..LE201511-201811

BLACK,TRIM1#,2#,3#,4#

sub58415-0R030

main58415-0R030-C2iASA4#..LE201511-201811

BLACK,TRIM1#,2#,4#

sub58415-0R030

main58415-0R030-C2iASA4#..LE201511-201811

BLACK,TRIM2#,3#

sub58415-0R030

58416KBOARD, REAR FLOOR, NO.2

main58416-0R030-C0iASA4#..LIMD,SE,XLE201301-201811

BLACK,TRIM1#,2#,3#,4#

main58416-0R030-C0iASA4#..LIMD201301-201511

BLACK,TRIM1#,2#,4#

main58416-0R030-C0iASA4#..LE201511-201811

BLACK,TRIM2#

main58416-42060-C0iASA44..(LIMD,XLE)..USA;ASA42..(LIMD,SE,XLE)..USA201511-201811

SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,3#,4#

main58416-42060-C0iASA4#..LE..USA201511-201811

SPARE TIRE-GROUND TIRE,BLACK,TRIM2#

58417HBOARD, REAR FLOOR, NO.3

main58417-0R030-C0iASA4#..LE201511-201811

BLACK,TRIM2#

main58417-0R030-C0iASA4#..LE201301-201811

BLACK,TRIM1#,2#,3#,4#

main58417-0R030-C0iASA4#..LIMD201301-201511

BLACK,TRIM1#,2#,4#

main58417-42060-C0iASA4#..LE..USA201511-201811

SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,3#,4#

main58417-42060-C0iASA4#..LE..USA201511-201811

SPARE TIRE-GROUND TIRE,BLACK,TRIM2#

58577EPLATE, REAR FLOOR MAT SUPPORT SIDE, NO.1

main58577-0R040-C0iASA4#..LIMD201301-201412

BLACK,TRIM1#,2#,3#,4#

sub58577-0R041

main58577-0R040-C0iASA4#..LE,XLE201301-201412

BLACK,TRIM1#,2#,4#

sub58577-0R041

main58577-0R041-C0iASA4#..LIMD201501-201511

BLACK,TRIM1#,2#

main58577-0R041-C0iASA4#..LIMD201501-201709

BLACK,TRIM1#,2#,3#,4#

main58577-0R041-C0iASA4#..LIMD201501-201511

BLACK,TRIM1#,2#,4#

main58577-0R041-C0iASA4#..LE201511

BLACK,TRIM2#

main58577-42050-C0iASA4#..(LE,XLE)..USA201301-201410

SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,3#,4#

sub58577-42051

main58577-42050-C0iASA4#..(LE,XLE)..USA201301-201410

SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,4#

sub58577-42051

main58577-42051-C0iASA4#..LIMD..USA201411-201511

SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#

main58577-42051-C0iASA4#..LIMD..USA201411-201511

SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,3#,4#

main58577-42051-C0iASA4#..XLE..USA201411-201511

SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,4#

main58577-42120-C0iASA44..(LIMD,XLE)..USA;ASA42..(LIMD,SE,XLE)..USA201511-201609

SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,3#,4#

main58577-42120-C0iASA4#..LE..USA201511

SPARE TIRE-GROUND TIRE,BLACK,TRIM2#

63434BNET, ROOM RACK

main64309-0R010-B1iASA4#..LIMD201301-201410

TONNEAU COVER-WITH(NET TRAY & TONNEAU COVER),DARK GRAY,TRIM1#,2#,4#

sub64309-0R011

main64309-0R010-B1iASA4#..LE,XLE201301-201410

TONNEAU COVER-WITH(NET TRAY & TONNEAU COVER),DARK GRAY,TRIM1#,2#,3#,4#

sub64309-0R011

main64309-0R011-B1iASA4#..LIMD201411-201509

TONNEAU COVER-WITH(NET TRAY & TONNEAU COVER),DARK GRAY,TRIM1#,2#

main64309-0R011-B1iASA4#..LIMD201411-201509

TONNEAU COVER-WITH(NET TRAY & TONNEAU COVER),DARK GRAY,TRIM1#,2#,3#,4#

main64309-0R011-B1iASA4#..XLE201411-201509

TONNEAU COVER-WITH(NET TRAY & TONNEAU COVER),DARK GRAY,TRIM1#,2#,4#

main64309-0R012-B1iASA4#..LIMD201510-201511

TONNEAU COVER-WITH(NET TRAY & TONNEAU COVER),DARK GRAY,TRIM1#,2#

main64309-0R012-B1iASA4#..LIMD201510-201511

TONNEAU COVER-WITH(NET TRAY & TONNEAU COVER),DARK GRAY,TRIM1#,2#,3#,4#

main64309-0R012-B1iASA4#..LIMD201510-201511

TONNEAU COVER-WITH(NET TRAY & TONNEAU COVER),DARK GRAY,TRIM1#,2#,4#

main64309-0R041-B0iASA42..SE..CND201511-201709

TONNEAU COVER-WITH(NET TRAY & TONNEAU COVER),BLACK,TRIM1#,2#,3#,4#

main64309-0R041-B0iASA42..LIMD..CND201511-201709

TONNEAU COVER-WITH(NET TRAY & TONNEAU COVER),BLACK,TRIM2#,3#

main64309-0R041-B0iASA4#..LE201511

TONNEAU COVER-WITH(NET TRAY & TONNEAU COVER),BLACK,TRIM2#

main64309-0R041-B0iASA4#..LE201511

TONNEAU COVER-WITH(NET TRAY & TONNEAU COVER),BLACK,TRIM1#,2#,4#

64907DSTOPPER SUB-ASSY, TONNEAU COVER, RH

main64907-0R010iASA4#201301-201709

TONNEAU COVER-WITH(TONNEAU COVER ONLY)

main64907-0R010iASA4#201301-201709

TONNEAU COVER-WITH(NET TRAY & TONNEAU COVER)

64909CSTOPPER SUB-ASSY, TONNEAU COVER, LH

main64909-0R010iASA44;ASA42..USA;ASA42..(LE,XLE)..CND201301-201709

TONNEAU COVER-WITH(TONNEAU COVER ONLY)

main64909-0R010iASA4#201301-201709

TONNEAU COVER-WITH(NET TRAY & TONNEAU COVER)

64910NCOVER ASSY, TONNEAU

main64910-0R030-C0iASA42..XLE..CND;ASA44..LIMD,SE,XLE;ASA42..(LIMD,SE,XLE)..USA201301-201709

TONNEAU COVER-WITH(NET TRAY & TONNEAU COVER),BLACK,TRIM1#,2#,3#,4#

main64910-0R030-C0iASA4#..LIMD201301-201511

TONNEAU COVER-WITH(TONNEAU COVER ONLY),BLACK,TRIM1#,2#,4#

main64910-0R030-C0iASA4#..LIMD201301-201511

TONNEAU COVER-WITH(NET TRAY & TONNEAU COVER),BLACK,TRIM1#,2#,4#

main64910-0R030-C0iASA4#..LE,XLE201301-201709

TONNEAU COVER-WITH(TONNEAU COVER ONLY),BLACK,TRIM1#,2#,3#,4#

main64910-0R030-C0iASA4#..LE201511

TONNEAU COVER-WITH(TONNEAU COVER ONLY),BLACK,TRIM2#

main64910-0R030-C0iASA4#..LE201511

TONNEAU COVER-WITH(NET TRAY & TONNEAU COVER),BLACK,TRIM2#

64997BOX, DECK FLOOR, LH

main64997-0R010iASA4#201301-201511

main64997-0R040iASA42..(LIMD,SE)..CND201511-201709

main64997-0R060iASA42..USA;ASA44..(LE,LIMD,XLE)..USA201511-201609

SPARE TIRE-GROUND TIRE

64997CCLIP(FOR DECK FLOOR BOX)

main90467-05164-B2iASA44;ASA42..USA;ASA42..(LE,XLE)..CND201301-201709

DK.GRAY

sub90467-05164

6221713010COVER, RAIL ROOF SIDE, INNER CENTER

main62217-13010

90159A0016

main90159-A0016

9046709240

main90467-09240

90467A0006

main90467-A0006

9356855012

main93568-55012

18 parts on this diagram · 2 diagrams in section
