SIDE MEMBER
55713CPANEL, COWL TOP SIDE, RH
5752
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61035BPILLAR SUB-ASSY, NO.4 INNER, RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61067AEXTENSION SUB-ASSY, QUARTER PANEL, INNER REAR RH
61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61131CPILLAR, FRONT BODY, OUTER RH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61201RAIL SUB-ASSY, ROOF SIDE, RH
61211RAIL, ROOF SIDE, OUTER RH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
61311BPILLAR, CENTER BODY, OUTER RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61611PANEL, QUARTER, RH
61621DTROUGH, BACK DOOR OPENING, RH
61625GEXTENSION, QUARTER PANEL, REAR RH
61627EEXTENSION, QUARTER PANEL, REAR LOWER RH
61631LPANEL, REAR WHEEL HOUSE, OUTER RH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61635EEXTENSION, QUARTER WHEEL HOUSE, RH
61647CREINFORCEMENT, WHEEL HOUSE, RH
61655BGUSSET, QUARTER WHEEL HOUSE, INNER RH
61703HREINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH
61707LPANEL SUB-ASSY, ROOF SIDE, INNER FRONT RH
61715AEXTENSION, ROOF SIDE, INNER UPPER RH
61717AREINFORCEMENT, QUARTER PANEL EXTENSION, RH
61719CBRACKET, ROOF SIDE RAIL, RH
61731BPANEL, ROOF SIDE, INNER RH
61733APANEL, ROOF SIDE, INNER FRONT RH
61735APANEL, ROOF SIDE, INNER REAR RH
61783DPAD, REAR WHEEL OPENING EXTENSION, NO.1
61826CPAD, NOISE SHUTTER, NO.3
62151BPAD, COWL SIDE SILENCER
62554BPAD, PILLAR, NO.4
62555BPAD, PILLAR, NO.5
62611FINSULATOR, QUARTER WHEEL HOUSE, RH
65565PATCH, SIDE PANEL REAR END, RH
main65565-0R010
67887GWEATHERSTRIP, ROCKER OUTER, RH
6786712150CLIP, DOOR WEATHERSTRIP
main67867-12150
90105A0164
main90105-A0164
9011906869
main90119-06869
90178A0024
main90178-A0024

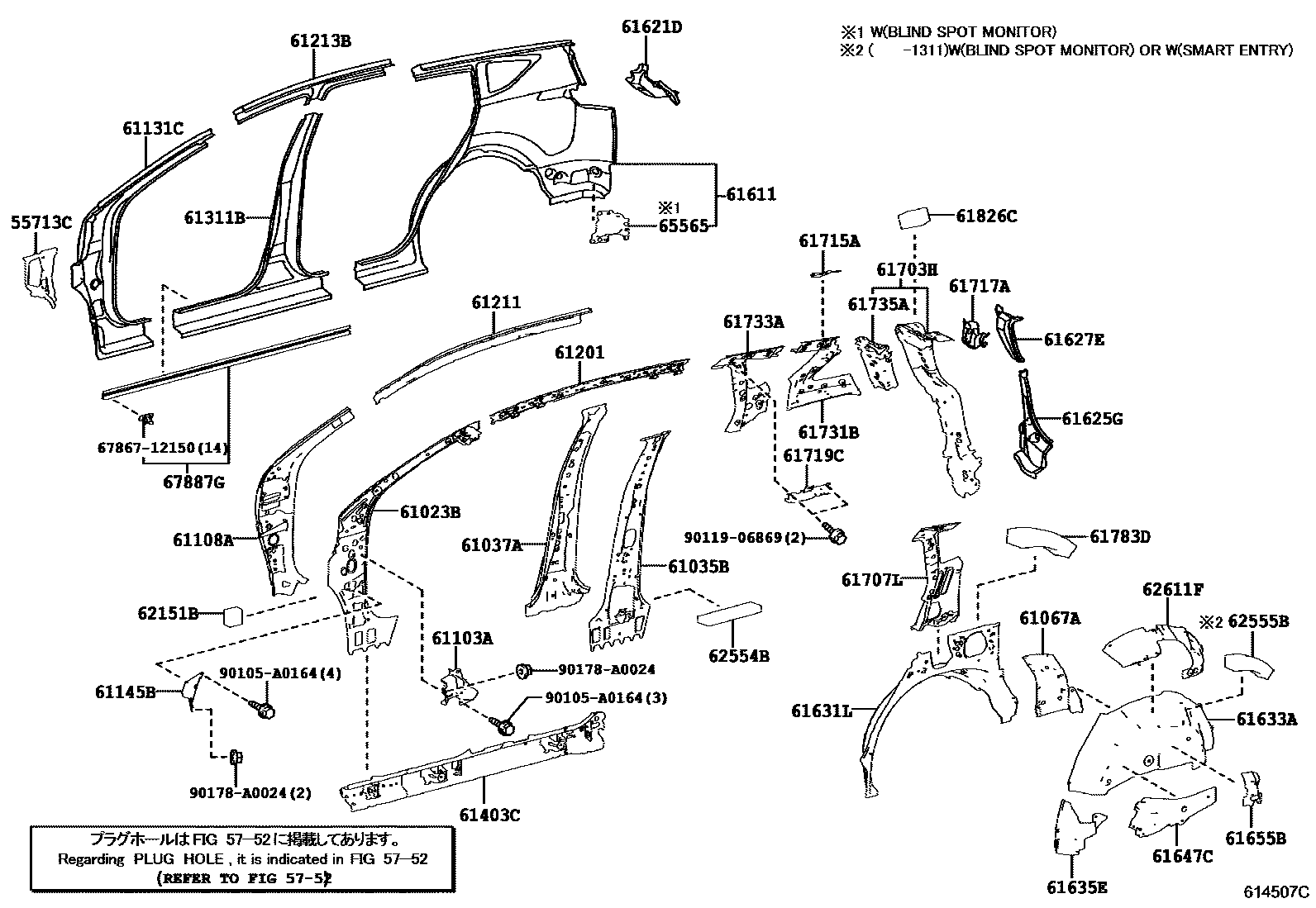

44 parts on this diagram · 2 diagrams in section
