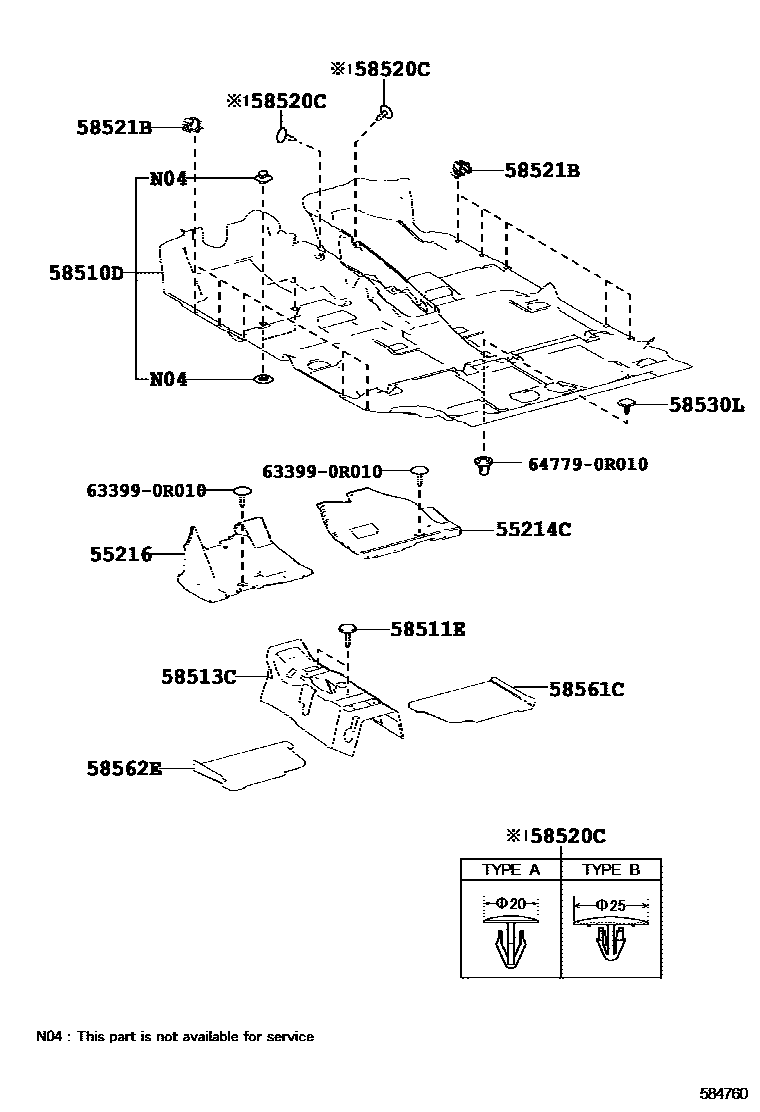

FLOOR MAT & SILENCER PAD
55214CPAD, DASH PANEL INSULATOR, NO.2
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM2#
58511ECLIP(FOR FRONT FLOOR MAT)
58513CMAT, FLOOR, FRONT CENTER
58520CCLIP(FOR FRONT FLOOR CARPET)
TYPE B:REFER ILLUST.
58521BHOOK, FLOOR CARPET
58530LCLIP, FLOOR CARPET, CENTER
DK.GRAY
58561CSILENCER, FRONT FLOOR, NO.1
58562ESILENCER, FRONT FLOOR, NO.2
633990R010COVER, VISOR HOLDER HOLE
main63399-0R010
647790R010TRAY, SPARE WHEEL COVER
main64779-0R010
12 parts on this diagram · 2 diagrams in section
