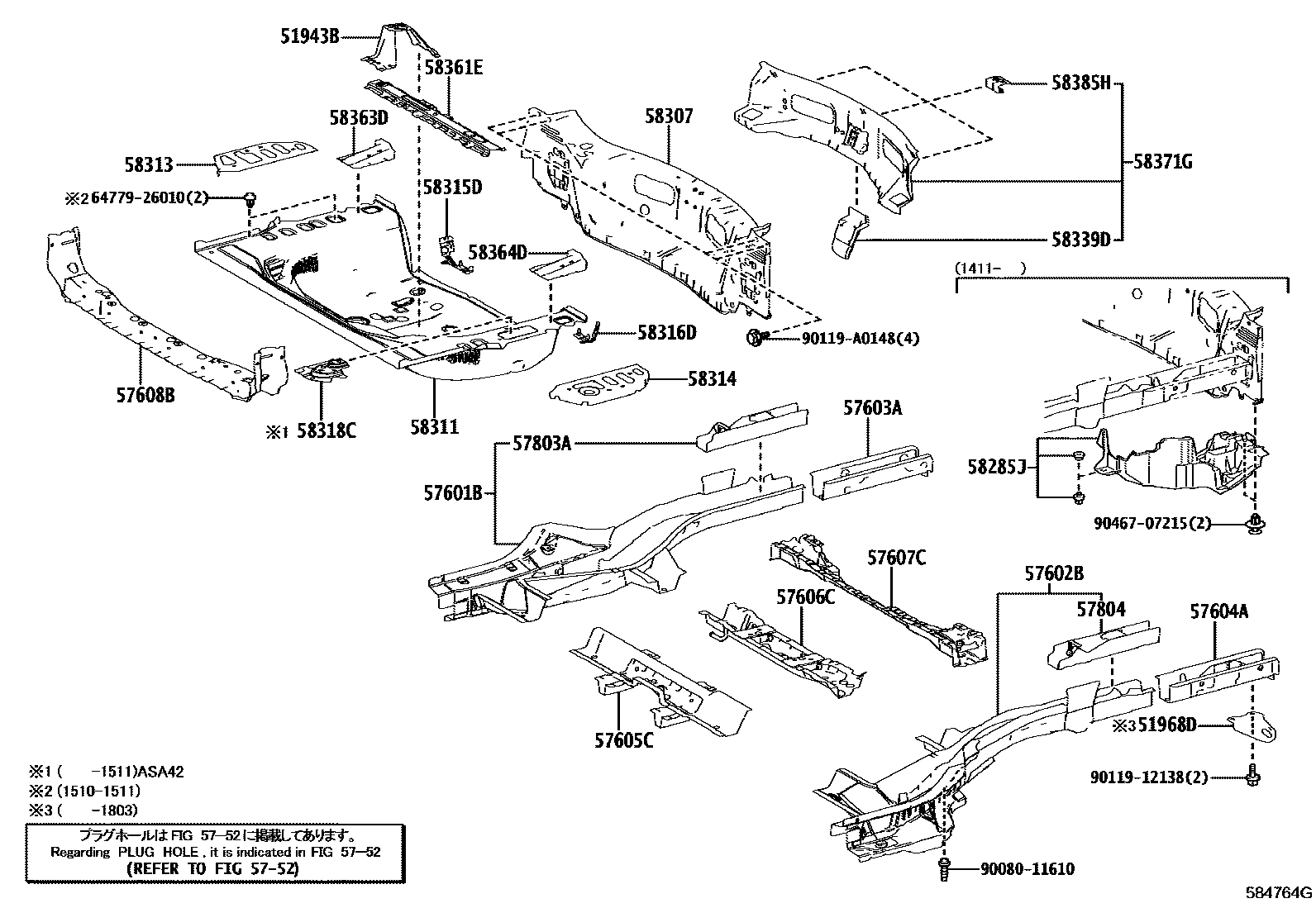

REAR FLOOR PANEL & REAR FLOOR MEMBER
51943BBRACKET, SPARE WHEEL CARRIER, NO.1
51968DHOOK, TRANSPORT, REAR LH
5752
57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57605CMEMBER SUB-ASSY, REAR FLOOR CROSS
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57607CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH
57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH
58285JCOVER, CENTER FLOOR HOLE
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58339DBRACKET, JACK UP
58361EREINFORCEMENT, REAR FLOOR PANEL, NO.1
58363DREINFORCEMENT, REAR FLOOR PANEL, NO.2 RH
58364DREINFORCEMENT, REAR FLOOR PANEL, NO.2 LH
58371GPANEL, BODY LOWER BACK
58385HBRACKET, REAR BUMPER COVER, NO.1
6477926010TRAY, SPARE WHEEL COVER
9008011610
main90080-11610
9011912138
90119A0148
main90119-A0148
9046707215
32 parts on this diagram · 1 diagram in section
