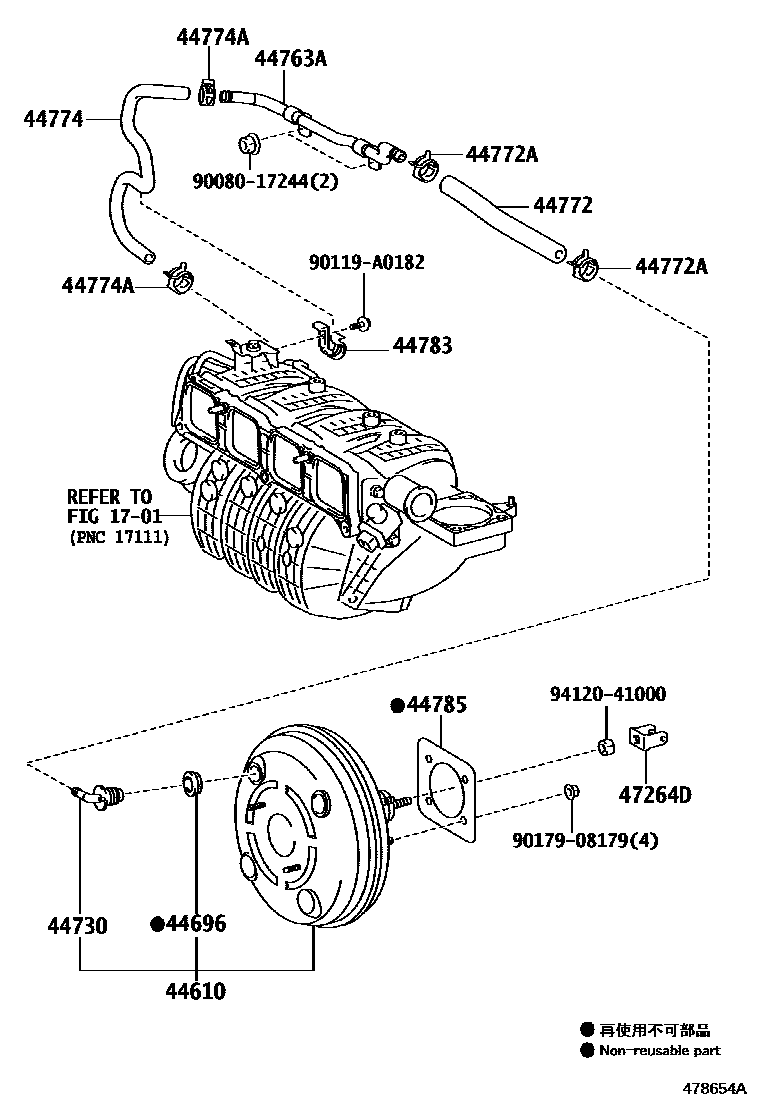

BRAKE BOOSTER & VACUUM TUBE

1701

44610BOOSTER ASSY, BRAKE

main44610-0R050iASA4#..LE201301-201511

main44610-0R060iASA42..LE..USA201301-201511

MEXICO SPEC

44696GROMMET, CHECK VALVE

main90080-48071iASA4#201301-201511

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20170iASA4#201301-201511

44763ATUBE, HOSE TO HOSE, NO.1

main44763-0R010iASA4#201301-201511

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-0R010iASA4#201301-201511

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014×2iASA4#201301-201511

44774HOSE, UNION TO CONNECTOR TUBE

main44774-0R010iASA4#201301-201511

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main96133-41500×2iASA4#201301-201511

44783CLAMP, VACUUM HOSE

main44783-42030iASA4#201301-201511

44785GASKET, BRAKE BOOSTER

main44785-02060iASA4#201301-201511

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-0R010iASA4#201301-201511

main47264-12060iASA4#201806

(J)

9008017244

main90080-17244

90119A0182

main90119-A0182

9017908179

main90179-08179

9412041000

main94120-41000

16 parts on this diagram · 1 diagram in section
