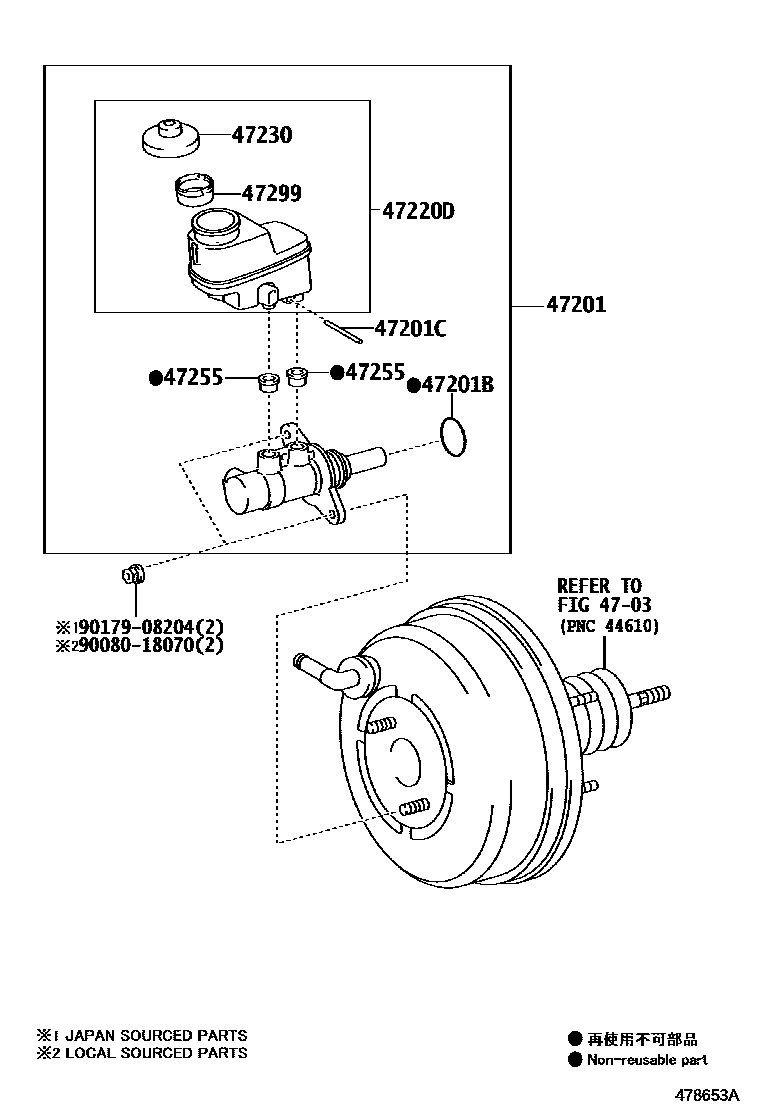

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-0R070iASA4#..LE201301-201511

main47201-0R082iASA4#..LIMD,XLE201301-201511

MEXICO SPEC

main47201-0R082iASA4#..LE..USA201301-201511

PUERTORICO SPEC

main47201-0R082iASA42..(LIMD,SE)..CND201511-201709

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iASA4#201301-201709

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iASA4#201301-201709

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-0R050iASA4#201301-201709

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-01030iASA4#..LE201301-201503

sub47230-01031

main47230-01031iASA4#..LE201412-201709

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iASA4#201301-201709

sub90016-AT001

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iASA4#201301-201806

9008018070

main90080-18070

9017908204

main90179-08204

10 parts on this diagram · 1 diagram in section
