EPC Data

FRONT AXLE HOUSING & DIFFERENTIAL

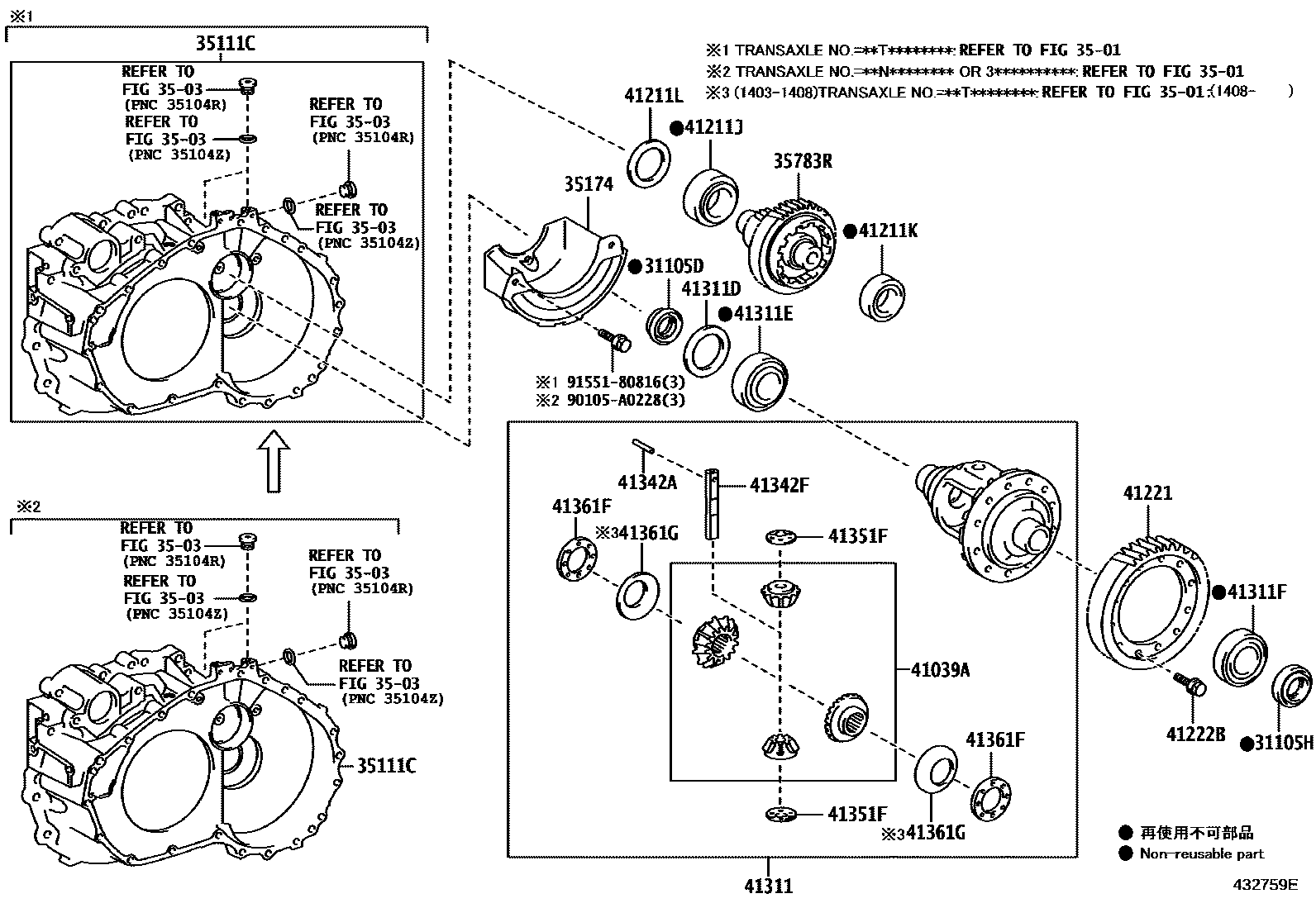

Parts diagram
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
main90311-40038i201301-201811
*335
main90311-55005i201301-201511
*335,*325
main90311-55005i201511-201709
*325
main90311-55005i201511-201811
*335
main90311-55005i201707
*451
main90311-A0012i201301-201403
*325
sub90311-A0029
main90311-A0029i201707
*451
main90311-A0029i201403-201709
*325
31105HSEAL, OIL, NO.2(FOR TRANSAXLE CASE)
main90311-50045i201301-201511
*325,(J),*335
sub90311-50064
main90311-50045i201511-201709
*325,(J)
sub90311-50064
main90311-50045i201511-201811
*335
sub90311-50064
main90311-50045i201707
*451,(J)
sub90311-50064
main90311-A0021i201707
*451
main90311-A0021i201301-201709
*325,(L)
main90311-A0021i201707
*451,(L)
3501
3503
35111CHOUSING, TRANSAXLE
main35105-06060i201707
*451
sub35105-33022
main35105-0R010i201301-201512
*325
sub35105-06060
main35105-0R011i201512-201709
*325
sub35105-06060
main35105-0R020i201301-201709
*325
sub35105-0R030
main35105-0R030i201707
*451
main35105-73030i201301-201509
*335
sub35105-73031
main35105-73031i201510-201811
*335
sub35105-33022
sub90341-14015
sub90430-14008
main35105-73040i201301-201811
*335
sub35105-42050
sub90341-14015
sub90430-14008
35174SEPARATOR, TRANSAXLE HOUSING OIL
main35174-73010i201707
*451
main35174-73010i201301-201511
*335,*325
main35174-73010i201511-201709
*325
main35174-73010i201511-201811
*335
main35174-73020i201707
*451
main35174-73020i201301-201511
*335,*325
main35174-73020i201511-201709
*325
main35174-73020i201511-201811
*335
35783RGEAR, COUNTER DRIVEN
main35705-0R010i201301-201709
*325,(L)
sub35705-0R030
main35705-0R020i201301-201709
*325,(L)
sub35705-0R040
main35705-0R030i201707
*451
sub35705-33120
main35705-0R040i201707
*451
sub35705-42030
main35705-33030i201301-201503
*325,(J),*335
sub35705-33090
main35705-33090i201504-201511
*325,(J),*335
sub35705-33120
main35705-33090i201511-201709
*325,(J)
sub35705-33120
main35705-33090i201511-201811
*335
sub35705-33120
main35705-42010i201301-201503
*325,(J),*335
sub35705-42020
main35705-42020i201511-201811
*335
sub35705-42030
main35705-42020i201504-201511
*325,(J),*335
sub35705-42030
main35705-42020i201511-201709
*325,(J)
sub35705-42030
41039AGEAR KIT, DIFFERENTIAL
main41039-28020i201301-201403
*335,*325
sub41039-28030
main41039-28030i201707
*451
main41039-33080i201403-201511
*335,*325
sub41039-28030
main41039-33080i201511-201709
*325
sub41039-28030
main41039-33080i201511-201811
*335
sub41039-28030
main41039-48040i201402-201511
*335,*325
main41039-48040i201511-201811
*335
main41039-48040i201707
*451
main41039-48040i201511-201709
*325
41211JBEARING, TAPERED ROLLER (FOR DIFFERENTIAL DRIVE PINION RH)
main90366-35167i201707
*451,(J)
main90366-35167i201301-201811
*335
main90366-A0050i201301-201709
*325
main90366-A0050i201707
*451,(L)
41211KBEARING, TAPERED ROLLER (FOR DIFFERENTIAL DRIVE PINION LH)
main90366-32034i201707
*451,(J)
main90366-32034i201301-201811
*335
main90366-A0047i201301-201709
*325
main90366-A0047i201707
*451,(L)
41211LSHIM (FOR DIFFERENTIAL DRIVE PINION)
main90564-61022i201301-201811
T=2.000,*335
main90564-61023i201301-201811
T=2.025,*335
main90564-61024i201301-201811
T=2.050,*335
main90564-61025i201301-201811
T=2.075,*335
main90564-61026i201301-201811
T=2.100,*335
main90564-61027i201301-201811
T=2.125,*335
main90564-61028i201301-201811
T=2.150,*335
main90564-61029i201301-201811
T=2.175,*335
main90564-61030i201301-201811
T=2.200,*335
main90564-61031i201301-201811
T=2.225,*335
main90564-61032i201301-201811
T=2.250,*335
main90564-61033i201301-201811
T=2.275,*335
main90564-61034i201301-201811
T=2.300,*335
main90564-61035i201301-201811
T=2.325,*335
main90564-61036i201301-201811
T=2.350,*335
main90564-61037i201301-201811
T=2.375,*335
main90564-61038i201301-201811
T=2.400,*335
main90564-61039i201301-201811
T=2.425,*335
main90564-61040i201301-201811
T=2.450,*335
main90564-61041i201301-201811
T=2.475,*335
main90564-61042i201301-201811
T=2.500,*335
main90564-61043i201301-201811
T=2.525,*335
main90564-61044i201301-201811
T=2.550,*335
main90564-61045i201301-201811
T=2.575,*335
main90564-61046i201301-201811
T=2.600,*335
main90564-61047i201301-201811
T=2.625,*335
main90564-61048i201301-201811
T=2.650,*335
main90564-61049i201301-201811
T=2.675,*335
main90564-61050i201301-201811
T=2.700,*335
main90564-61051i201301-201811
T=2.725,*335
main90564-61052i201301-201811
T=2.750,*335
main90564-61053i201301-201811
T=2.775,*335
main90564-61054i201301-201811
T=2.800,*335
main90564-61055i201301-201811
T=2.825,*335
main90564-61056i201301-201811
T=2.850,*335
main90564-61057i201301-201811
T=2.875,*335
main90564-61058i201301-201811
T=2.900,*335
main90564-61059i201301-201811
T=2.925,*335
main90564-61060i201301-201811
T=2.950,*335
main90564-61061i201301-201811
T=2.975,*335
main90564-61062i201301-201811
T=3.000,*335
main90564-A0219i201301-201709
T=2.000,*325
main90564-A0219i201707
T=2.000,*451
main90564-A0220i201707
T=2.025,*451
main90564-A0220i201301-201709
T=2.025,*325
main90564-A0221i201301-201709
T=2.050,*325
main90564-A0221i201707
T=2.050,*451
main90564-A0222i201301-201709
T=2.075,*325
main90564-A0222i201707
T=2.075,*451
main90564-A0223i201707
T=2.100,*451
main90564-A0223i201301-201709
T=2.100,*325
main90564-A0224i201301-201709
T=2.125,*325
main90564-A0224i201707
T=2.125,*451
main90564-A0225i201301-201709
T=2.150,*325
main90564-A0225i201707
T=2.150,*451
main90564-A0226i201301-201709
T=2.175,*325
main90564-A0226i201707
T=2.175,*451
main90564-A0227i201301-201709
T=2.200,*325
main90564-A0227i201707
T=2.200,*451
main90564-A0228i201707
T=2.225,*451
main90564-A0228i201301-201709
T=2.225,*325
main90564-A0229i201301-201709
T=2.250,*325
main90564-A0229i201707
T=2.250,*451
main90564-A0230i201707
T=2.275,*451
main90564-A0230i201301-201709
T=2.275,*325
main90564-A0231i201707
T=2.300,*451
main90564-A0231i201301-201709
T=2.300,*325
main90564-A0232i201301-201709
T=2.325,*325
main90564-A0232i201707
T=2.325,*451
main90564-A0233i201301-201709
T=2.350,*325
main90564-A0233i201707
T=2.350,*451
main90564-A0234i201707
T=2.375,*451
main90564-A0234i201301-201709
T=2.375,*325
main90564-A0235i201707
T=2.400,*451
main90564-A0235i201301-201709
T=2.400,*325
main90564-A0236i201301-201709
T=2.425,*325
main90564-A0236i201707
T=2.425,*451
main90564-A0237i201301-201709
T=2.450,*325
main90564-A0237i201707
T=2.450,*451
main90564-A0238i201707
T=2.475,*451
main90564-A0238i201301-201709
T=2.475,*325
main90564-A0239i201707
T=2.500,*451
main90564-A0239i201301-201709
T=2.500,*325
main90564-A0240i201301-201709
T=2.525,*325
main90564-A0240i201707
T=2.525,*451
main90564-A0241i201707
T=2.550,*451
main90564-A0241i201301-201709
T=2.550,*325
main90564-A0242i201301-201709
T=2.575,*325
main90564-A0242i201707
T=2.575,*451
main90564-A0243i201707
T=2.600,*451
main90564-A0243i201301-201709
T=2.600,*325
main90564-A0244i201301-201709
T=2.625,*325
main90564-A0244i201707
T=2.625,*451
main90564-A0245i201301-201709
T=2.650,*325
main90564-A0245i201707
T=2.650,*451
main90564-A0246i201301-201709
T=2.675,*325
main90564-A0246i201707
T=2.675,*451
main90564-A0247i201707
T=2.700,*451
main90564-A0247i201301-201709
T=2.700,*325
main90564-A0248i201301-201709
T=2.725,*325
main90564-A0248i201707
T=2.725,*451
main90564-A0249i201301-201709
T=2.750,*325
main90564-A0249i201707
T=2.750,*451
main90564-A0250i201301-201709
T=2.775,*325
main90564-A0250i201707
T=2.775,*451
main90564-A0251i201301-201709
T=2.800,*325
main90564-A0251i201707
T=2.800,*451
main90564-A0252i201301-201709
T=2.825,*325
main90564-A0252i201707
T=2.825,*451
main90564-A0253i201707
T=2.850,*451
main90564-A0253i201301-201709
T=2.850,*325
main90564-A0254i201301-201709
T=2.875,*325
main90564-A0254i201707
T=2.875,*451
main90564-A0255i201301-201709
T=2.900,*325
main90564-A0255i201707
T=2.900,*451
main90564-A0256i201707
T=2.925,*451
main90564-A0256i201301-201709
T=2.925,*325
main90564-A0257i201301-201709
T=2.950,*325
main90564-A0257i201707
T=2.950,*451
main90564-A0258i201301-201709
T=2.975,*325
main90564-A0258i201707
T=2.975,*451
main90564-A0259i201301-201709
T=3.000,*325
main90564-A0259i201707
T=3.000,*451
41221GEAR, FRONT DIFFERENTIAL RING
main41221-0R010i201301-201709
*325,(L)
sub41221-33190
main41221-0R020i201301-201709
*325,(L)
sub41221-42210
main41221-33180i201301-201703
*325,(J),*335
sub41221-33260
main41221-33190i201707
*451
main41221-33260i201704-201811
*335
sub41221-33190
main41221-33260i201704-201709
*325,(J)
sub41221-33190
main41221-42140i201301-201706
*325,(J),*335
sub41221-42180
main41221-42180i201707-201811
*335
sub41221-42210
main41221-42180i201707-201709
*325,(J)
sub41221-42210
main41221-42210i201707
*451
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
main90080-10239i201301-201709
*325
main90080-10239i201707
*451
main90105-12303i201301-201811
*335
41311CASE, FRONT DIFFERENTIAL
main41301-06011i201707
*451
sub41301-33101
main41301-0R010i201301-201408
*325
sub41301-0R011
main41301-0R011i201408-201709
*325
sub41301-06011
main41301-0R020i201301-201408
*325
sub41301-0R021
main41301-0R021i201408-201502
*325
sub41301-0T012
main41301-0T012i201502-201709
*325
main41301-0T012i201707
*451
main41301-48090i201301-201403
*335
sub41301-48130
main41301-48130i201403-201811
*335
main41301-73010i201301-201403
*335
sub41301-73011
main41301-73011i201403-201811
*335
sub41301-33101
41311DSHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
main90564-69001i201301-201811
T=2.000,*335
main90564-69002i201301-201811
T=2.025,*335
main90564-69003i201301-201811
T=2.050,*335
main90564-69004i201301-201811
T=2.075,*335
main90564-69005i201301-201811
T=2.100,*335
main90564-69006i201301-201811
T=2.125,*335
main90564-69007i201301-201811
T=2.150,*335
main90564-69008i201301-201811
T=2.175,*335
main90564-69009i201301-201811
T=2.200,*335
main90564-69010i201301-201811
T=2.225,*335
main90564-69011i201301-201811
T=2.250,*335
main90564-69012i201301-201811
T=2.275,*335
main90564-69013i201301-201811
T=2.300,*335
main90564-69014i201301-201811
T=2.325,*335
main90564-69015i201301-201811
T=2.350,*335
main90564-69016i201301-201811
T=2.375,*335
main90564-69017i201301-201811
T=2.400,*335
main90564-69020i201301-201811
T=2.425,*335
main90564-69021i201301-201811
T=2.450,*335
main90564-69022i201301-201811
T=2.475,*335
main90564-69023i201301-201811
T=2.500,*335
main90564-69024i201301-201811
T=2.525,*335
main90564-69025i201301-201811
T=2.550,*335
main90564-69026i201301-201811
T=2.575,*335
main90564-69027i201301-201811
T=2.600,*335
main90564-69028i201301-201811
T=2.625,*335
main90564-69029i201301-201811
T=2.650,*335
main90564-69030i201301-201811
T=2.675,*335
main90564-69031i201301-201811
T=2.700,*335
main90564-69032i201301-201811
T=2.725,*335
main90564-69033i201301-201811
T=2.750,*335
main90564-69034i201301-201811
T=2.775,*335
main90564-69035i201301-201811
T=2.800,*335
main90564-69036i201301-201811
T=2.825,*335
main90564-69037i201301-201811
T=2.850,*335
main90564-69038i201301-201811
T=2.875,*335
main90564-82009i201301-201811
T=2.000,*335
main90564-82010i201301-201811
T=2.025,*335
main90564-82011i201301-201811
T=2.050,*335
main90564-82012i201301-201811
T=2.075,*335
main90564-82013i201301-201811
T=2.100,*335
main90564-82014i201301-201811
T=2.125,*335
main90564-82015i201301-201811
T=2.150,*335
main90564-82016i201301-201811
T=2.175,*335
main90564-82017i201301-201811
T=2.200,*335
main90564-82018i201301-201811
T=2.225,*335
main90564-82019i201301-201811
T=2.250,*335
main90564-82020i201301-201811
T=2.275,*335
main90564-82021i201301-201811
T=2.300,*335
main90564-82022i201301-201811
T=2.325,*335
main90564-82023i201301-201811
T=2.350,*335
main90564-82024i201301-201811
T=2.375,*335
main90564-82025i201301-201811
T=2.400,*335
main90564-82026i201301-201811
T=2.425,*335
main90564-82027i201301-201811
T=2.450,*335
main90564-82028i201301-201811
T=2.475,*335
main90564-82029i201301-201811
T=2.500,*335
main90564-82030i201301-201811
T=2.525,*335
main90564-82031i201301-201811
T=2.550,*335
main90564-82032i201301-201811
T=2.575,*335
main90564-82033i201301-201811
T=2.600,*335
main90564-82034i201301-201811
T=2.625,*335
main90564-82035i201301-201811
T=2.650,*335
main90564-82036i201301-201811
T=2.675,*335
main90564-82037i201301-201811
T=2.700,*335
main90564-82038i201301-201811
T=2.725,*335
main90564-82039i201301-201811
T=2.750,*335
main90564-82040i201301-201811
T=2.775,*335
main90564-82041i201301-201811
T=2.800,*335
main90564-82042i201301-201811
T=2.825,*335
main90564-82043i201301-201811
T=2.850,*335
main90564-82044i201301-201811
T=2.875,*335
main90564-A0183i201707
T=2.000,*451
main90564-A0183i201301-201709
T=2.000,*325
main90564-A0184i201707
T=2.025,*451
main90564-A0184i201301-201709
T=2.025,*325
main90564-A0185i201301-201709
T=2.050,*325
main90564-A0185i201707
T=2.050,*451
main90564-A0186i201707
T=2.075,*451
main90564-A0186i201301-201709
T=2.075,*325
main90564-A0187i201301-201709
T=2.100,*325
main90564-A0187i201707
T=2.100,*451
main90564-A0188i201301-201709
T=2.125,*325
main90564-A0188i201707
T=2.125,*451
main90564-A0189i201301-201709
T=2.150,*325
main90564-A0189i201707
T=2.150,*451
main90564-A0190i201707
T=2.175,*451
main90564-A0190i201301-201709
T=2.175,*325
main90564-A0191i201301-201709
T=2.200,*325
main90564-A0191i201707
T=2.200,*451
main90564-A0192i201707
T=2.225,*451
main90564-A0192i201301-201709
T=2.225,*325
main90564-A0193i201301-201709
T=2.250,*325
main90564-A0193i201707
T=2.250,*451
main90564-A0194i201301-201709
T=2.275,*325
main90564-A0194i201707
T=2.275,*451
main90564-A0195i201301-201709
T=2.300,*325
main90564-A0195i201707
T=2.300,*451
main90564-A0196i201707
T=2.325,*451
main90564-A0196i201301-201709
T=2.325,*325
main90564-A0197i201301-201709
T=2.350,*325
main90564-A0197i201707
T=2.350,*451
main90564-A0198i201301-201709
T=2.375,*325
main90564-A0198i201707
T=2.375,*451
main90564-A0199i201301-201709
T=2.400,*325
main90564-A0199i201707
T=2.400,*451
main90564-A0200i201301-201709
T=2.425,*325
main90564-A0200i201707
T=2.425,*451
main90564-A0201i201707
T=2.450,*451
main90564-A0201i201301-201709
T=2.450,*325
main90564-A0202i201707
T=2.475,*451
main90564-A0202i201301-201709
T=2.475,*325
main90564-A0203i201707
T=2.500,*451
main90564-A0203i201301-201709
T=2.500,*325
main90564-A0204i201301-201709
T=2.525,*325
main90564-A0204i201707
T=2.525,*451
main90564-A0205i201301-201709
T=2.550,*325
main90564-A0205i201707
T=2.550,*451
main90564-A0206i201301-201709
T=2.575,*325
main90564-A0206i201707
T=2.575,*451
main90564-A0207i201707
T=2.600,*451
main90564-A0207i201301-201709
T=2.600,*325
main90564-A0208i201707
T=2.625,*451
main90564-A0208i201301-201709
T=2.625,*325
main90564-A0209i201301-201709
T=2.650,*325
main90564-A0209i201707
T=2.650,*451
main90564-A0210i201301-201709
T=2.675,*325
main90564-A0210i201707
T=2.675,*451
main90564-A0211i201301-201709
T=2.700,*325
main90564-A0211i201707
T=2.700,*451
main90564-A0212i201707
T=2.725,*451
main90564-A0212i201301-201709
T=2.725,*325
main90564-A0213i201301-201709
T=2.750,*325
main90564-A0213i201707
T=2.750,*451
main90564-A0214i201707
T=2.775,*451
main90564-A0214i201301-201709
T=2.775,*325
main90564-A0215i201707
T=2.800,*451
main90564-A0215i201301-201709
T=2.800,*325
main90564-A0216i201301-201709
T=2.825,*325
main90564-A0216i201707
T=2.825,*451
main90564-A0217i201707
T=2.850,*451
main90564-A0217i201301-201709
T=2.850,*325
main90564-A0218i201707
T=2.875,*451
main90564-A0218i201301-201709
T=2.875,*325
main90564-A0260i201301-201709
T=2.000,*325
main90564-A0260i201707
T=2.000,*451
main90564-A0261i201301-201709
T=2.025,*325
main90564-A0261i201707
T=2.025,*451
main90564-A0262i201301-201709
T=2.050,*325
main90564-A0262i201707
T=2.050,*451
main90564-A0263i201301-201709
T=2.075,*325
main90564-A0263i201707
T=2.075,*451
main90564-A0264i201707
T=2.100,*451
main90564-A0264i201301-201709
T=2.100,*325
main90564-A0265i201301-201709
T=2.125,*325
main90564-A0265i201707
T=2.125,*451
main90564-A0266i201707
T=2.150,*451
main90564-A0266i201301-201709
T=2.150,*325
main90564-A0267i201301-201709
T=2.175,*325
main90564-A0267i201707
T=2.175,*451
main90564-A0268i201301-201709
T=2.200,*325
main90564-A0268i201707
T=2.200,*451
main90564-A0269i201301-201709
T=2.225,*325
main90564-A0269i201707
T=2.225,*451
main90564-A0270i201707
T=2.250,*451
main90564-A0270i201301-201709
T=2.250,*325
main90564-A0271i201301-201709
T=2.275,*325
main90564-A0271i201707
T=2.275,*451
main90564-A0272i201301-201709
T=2.300,*325
main90564-A0272i201707
T=2.300,*451
main90564-A0273i201301-201709
T=2.325,*325
main90564-A0273i201707
T=2.325,*451
main90564-A0274i201707
T=2.350,*451
main90564-A0274i201301-201709
T=2.350,*325
main90564-A0275i201301-201709
T=2.375,*325
main90564-A0275i201707
T=2.375,*451
main90564-A0276i201707
T=2.400,*451
main90564-A0276i201301-201709
T=2.400,*325
main90564-A0277i201301-201709
T=2.425,*325
main90564-A0277i201707
T=2.425,*451
main90564-A0278i201707
T=2.450,*451
main90564-A0278i201301-201709
T=2.450,*325
main90564-A0279i201301-201709
T=2.475,*325
main90564-A0279i201707
T=2.475,*451
main90564-A0280i201301-201709
T=2.500,*325
main90564-A0280i201707
T=2.500,*451
main90564-A0281i201301-201709
T=2.525,*325
main90564-A0281i201707
T=2.525,*451
main90564-A0282i201301-201709
T=2.550,*325
main90564-A0282i201707
T=2.550,*451
main90564-A0283i201301-201709
T=2.575,*325
main90564-A0283i201707
T=2.575,*451
main90564-A0284i201707
T=2.600,*451
main90564-A0284i201301-201709
T=2.600,*325
main90564-A0285i201301-201709
T=2.625,*325
main90564-A0285i201707
T=2.625,*451
main90564-A0286i201707
T=2.650,*451
main90564-A0286i201301-201709
T=2.650,*325
main90564-A0287i201301-201709
T=2.675,*325
main90564-A0287i201707
T=2.675,*451
main90564-A0288i201301-201709
T=2.700,*325
main90564-A0288i201707
T=2.700,*451
main90564-A0289i201301-201709
T=2.725,*325
main90564-A0289i201707
T=2.725,*451
main90564-A0290i201707
T=2.750,*451
main90564-A0290i201301-201709
T=2.750,*325
main90564-A0291i201301-201709
T=2.775,*325
main90564-A0291i201707
T=2.775,*451
main90564-A0292i201707
T=2.800,*451
main90564-A0292i201301-201709
T=2.800,*325
main90564-A0293i201707
T=2.825,*451
main90564-A0293i201301-201709
T=2.825,*325
main90564-A0294i201301-201709
T=2.850,*325
main90564-A0294i201707
T=2.850,*451
main90564-A0295i201301-201709
T=2.875,*325
main90564-A0295i201707
T=2.875,*451
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
main90080-36188i201301-201709
*325
main90366-50118i201301-201811
*335
main90366-62004i201707
*451
main90366-62004i201301-201811
*335
main90366-A0056i201707
*451
main90366-A0056i201301-201709
*325
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
main90366-55071i201301-201511
*335,*325
main90366-55071i201511-201709
*325
main90366-55071i201511-201811
*335
main90366-55071i201707
*451
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
main90250-06058i201301-201511
*335,*325
main90250-06058i201511-201709
*325
main90250-06058i201511-201811
*335
main90250-06058i201707
*451
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
main41342-33050i201301-201402
*335,*325
sub41342-33051
main41342-33051i201511-201709
*325
main41342-33051i201402-201511
*335,*325
main41342-33051i201511-201811
*335
main41342-33051i201707
*451
main41342-33061i201707
*451
main41342-73010i201301-201403
*335,*325
sub41342-73011
main41342-73011i201511-201709
*325
main41342-73011i201511-201811
*335
main41342-73011i201403-201511
*335,*325
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
main41351-33030i201301-201511
*335,*325
main41351-33030i201511-201709
*325
main41351-33030i201511-201811
*335
main41351-33030i201707
*451
main41351-73010i201707
*451
main41351-73010i201301-201511
*335,*325
main41351-73010i201511-201811
*335
main41351-73010i201511-201709
*325
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
main41361-06010i201411-201709
T=1.50,*325
main41361-06010i201707
T=1.50,*451
main41361-06020i201707
T=1.55,*451
main41361-06020i201411-201709
T=1.55,*325
main41361-06030i201411-201709
T=1.60,*325
main41361-06030i201707
T=1.60,*451
main41361-06040i201707
T=1.65,*451
main41361-06040i201411-201709
T=1.65,*325
main41361-06050i201707
T=1.70,*451
main41361-06050i201411-201709
T=1.70,*325
main41361-06060i201411-201709
T=1.75,*325
main41361-06060i201707
T=1.75,*451
main41361-06070i201707
T=1.80,*451
main41361-06070i201411-201709
T=1.80,*325
main41361-06080i201411-201709
T=1.85,*325
main41361-06080i201707
T=1.85,*451
main41361-06090i201411-201709
T=1.90,*325
main41361-06090i201707
T=1.90,*451
main41361-0R010i201411-201709
T=1.00,*325
main41361-0R020i201411-201709
T=1.10,*325
main41361-0R030i201411-201709
T=1.20,*325
main41361-0R040i201411-201709
T=0.90,*325
main41361-33020i201403-201811
T=1.50,*335
main41361-33020i201301-201402
T=1.50,*335,*325
main41361-33020i201408-201410
T=1.50,*325
main41361-33030i201403-201811
T=1.55,*335
main41361-33030i201301-201402
T=1.55,*335,*325
main41361-33030i201408-201410
T=1.55,*325
main41361-33040i201403-201811
T=1.60,*335
main41361-33040i201408-201410
T=1.60,*325
main41361-33040i201301-201402
T=1.60,*335,*325
main41361-33050i201301-201402
T=1.65,*335,*325
main41361-33050i201403-201811
T=1.65,*335
main41361-33050i201408-201410
T=1.65,*325
main41361-33060i201403-201811
T=1.70,*335
main41361-33060i201301-201402
T=1.70,*335,*325
main41361-33060i201408-201410
T=1.70,*325
main41361-33070i201403-201811
T=1.75,*335
main41361-33070i201408-201410
T=1.75,*325
main41361-33070i201301-201402
T=1.75,*335,*325
main41361-33080i201403-201811
T=1.80,*335
main41361-33080i201408-201410
T=1.80,*325
main41361-33080i201301-201402
T=1.80,*335,*325
main41361-33090i201301-201402
T=1.85,*335,*325
main41361-33090i201403-201811
T=1.85,*335
main41361-33090i201408-201410
T=1.85,*325
main41361-33100i201403-201811
T=1.90,*335
main41361-33100i201301-201402
T=1.90,*335,*325
main41361-33100i201408-201410
T=1.90,*325
main41361-33110i201402-201408
T=2.60,*325
main41361-33110i201402-201403
T=2.60,*335
main41361-33120i201402-201403
T=2.65,*335
main41361-33120i201402-201408
T=2.65,*325
main41361-33130i201402-201408
T=2.70,*325
main41361-33130i201402-201403
T=2.70,*335
main41361-33140i201402-201403
T=2.75,*335
main41361-33140i201402-201408
T=2.75,*325
main41361-33150i201402-201403
T=2.80,*335
main41361-33150i201402-201408
T=2.80,*325
main41361-33160i201402-201403
T=2.85,*335
main41361-33160i201402-201408
T=2.85,*325
main41361-33170i201402-201403
T=2.90,*335
main41361-33170i201402-201408
T=2.90,*325
main41361-33180i201402-201403
T=2.95,*335
main41361-33180i201402-201408
T=2.95,*325
main41361-33190i201402-201408
T=3.00,*325
main41361-33190i201402-201403
T=3.00,*335
main41361-33300i201702-201807
T=0.95,*335
sub41361-33350
main41361-33310i201702-201807
T=1.05,*335
sub41361-33370
main41361-33320i201702-201807
T=1.15,*335
sub41361-33390
main41361-33330i201702-201807
T=1.25,*335
sub41361-33410
main41361-33340i201808
T=0.90,*451
main41361-33340i201808-201811
T=0.90,*335
main41361-33350i201808-201811
T=0.95,*335
main41361-33350i201808
T=0.95,*451
main41361-33360i201808
T=1.00,*451
main41361-33360i201808-201811
T=1.00,*335
main41361-33370i201808
T=1.05,*451
main41361-33370i201808-201811
T=1.05,*335
main41361-33380i201808
T=1.10,*451
main41361-33380i201808-201811
T=1.10,*335
main41361-33390i201808-201811
T=1.15,*335
main41361-33390i201808
T=1.15,*451
main41361-33400i201808-201811
T=1.20,*335
main41361-33400i201808
T=1.20,*451
main41361-33410i201808-201811
T=1.25,*335
main41361-33410i201808
T=1.25,*451
main41361-73010i201301-201807
T=1.00,*335
sub41361-33360
main41361-73010i201301-201410
T=1.00,*325
sub41361-33360
main41361-73010i201707-201807
T=1.00,*451
sub41361-33360
main41361-73020i201301-201410
T=1.10,*325
sub41361-33380
main41361-73020i201301-201807
T=1.10,*335
sub41361-33380
main41361-73020i201707-201807
T=1.10,*451
sub41361-33380
main41361-73030i201301-201807
T=1.20,*335
sub41361-33400
main41361-73030i201301-201410
T=1.20,*325
sub41361-33400
main41361-73030i201707-201807
T=1.20,*451
sub41361-33400
main41361-73050i201707-201807
T=0.90,*451
sub41361-33340
main41361-73050i201301-201807
T=0.90,*335
sub41361-33340
main41361-73050i201301-201410
T=0.90,*325
sub41361-33340
main41361-73070i201403-201408
T=1.90,*325
main41361-73080i201403-201408
T=2.00,*325
main41361-73090i201403-201408
T=2.10,*325
main41361-73100i201403-201408
T=2.20,*325
41361GWASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEAR)
main90208-40003i201707
*451
main90208-40003i201403-201811
*335
main90208-40003i201408-201709
*325
main90208-45001i201707
*451
main90208-45001i201403-201811
*335
main90208-45001i201408-201709
*325
90105A0228
main90105-A0228
9155180816
main91551-80816

24 parts on this diagram · 2 diagrams in section

FRONT AXLE HOUSING & DIFFERENTIAL — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
