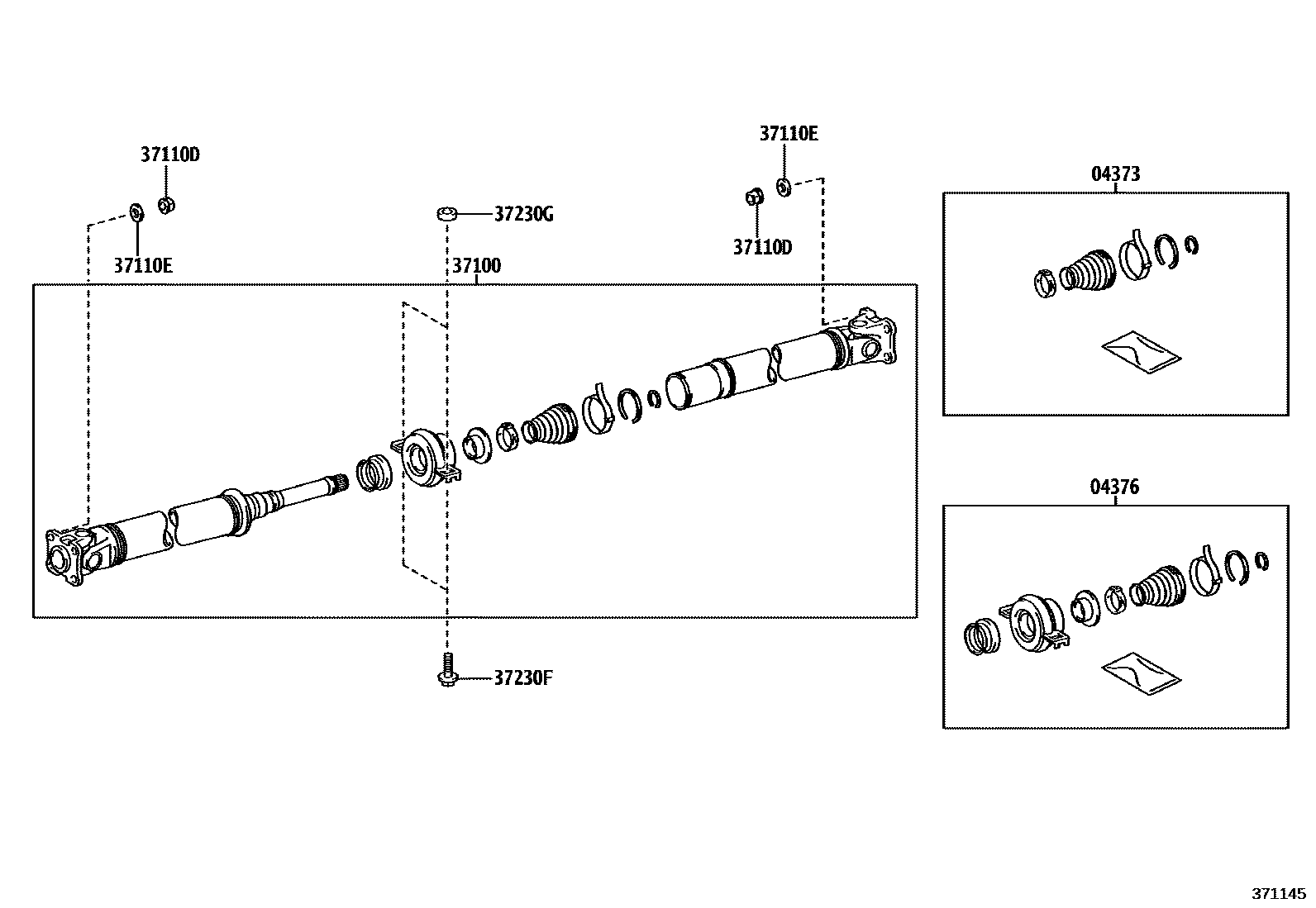

PROPELLER SHAFT & UNIVERSAL JOINT

04373BOOT KIT, UNIVERSAL

main04373-52010iASA44201301-201811

04376BEARING KIT, CENTER SUPPORT

main04376-52010iASA44201301-201811

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-42090iASA44201301-201511

37110DNUT (FOR PROPELLER SHAFT)

main90179-08197iASA44201301-201511

37110EWASHER (FOR PROPELLER SHAFT)

main90201-08097iASA44201301-201511

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-A0246iASA44201301-201511

*10-1.25PX35-35

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10081iASA44201301-201511

T=4.5

main90201-10083iASA44201301-201511

T=6.5

main90201-10123iASA44201301-201511

T=2.0

7 parts on this diagram · 1 diagram in section
