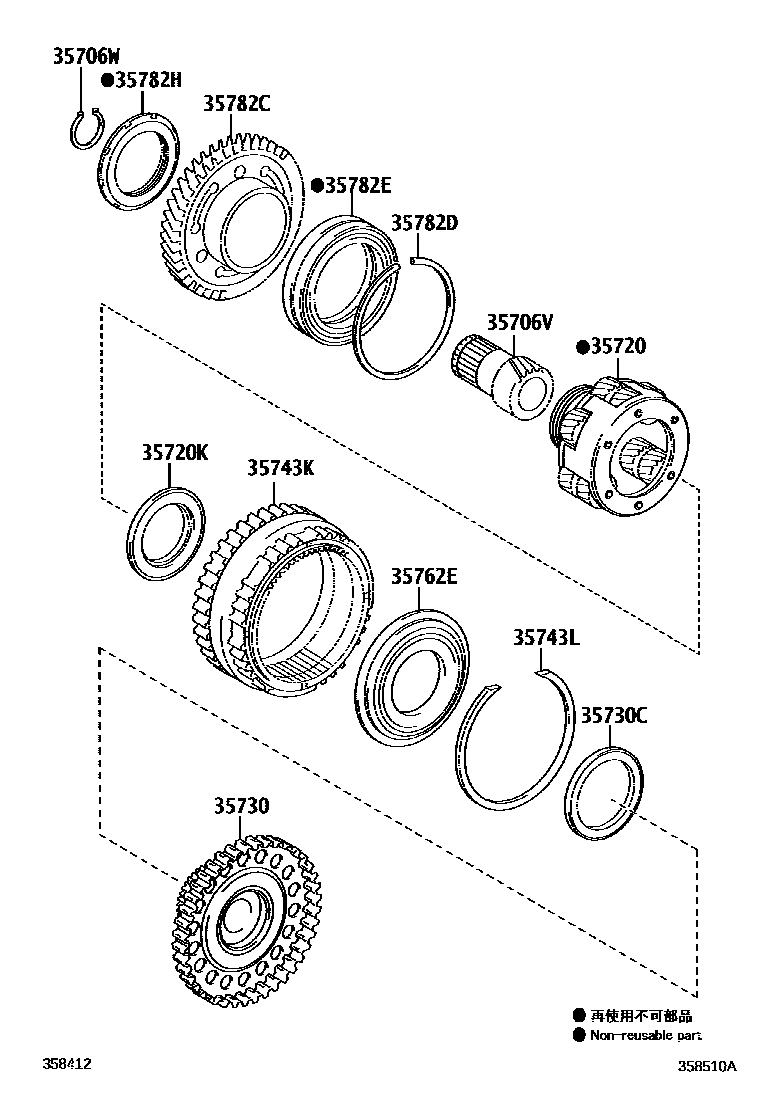

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35706VGEAR SUB ASSY, PLANETARY SUN
*325
*335
*451
35706WRING, SNAP (FOR PLANETARY SUN GEAR)
35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)
*335
*325
*451
35730GEAR ASSY, REAR PLANETARY SUN
*325,(J)
35730CBEARING, THRUST NEEDLE(FOR REAR PLANETARY SUN GEAR, NO.2)
*335
*325
*451
35743KGEAR, PLANETARY RING
*451
35743LRING, SNAP (FOR PLANETARY RING GEAR)
*335
*451
*325
35762EFLANGE, PLANETARY RING GEAR
35782CGEAR, COUNTER DRIVE
*451
35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)
*335
*335
*325
*325
*451
35782EBEARING(FOR COUNTER DRIVE GEAR)
*335
*451
*325
35782HNUT(FOR COUNTER DRIVE GEAR)
*335
*325
*451
13 parts on this diagram · 1 diagram in section
