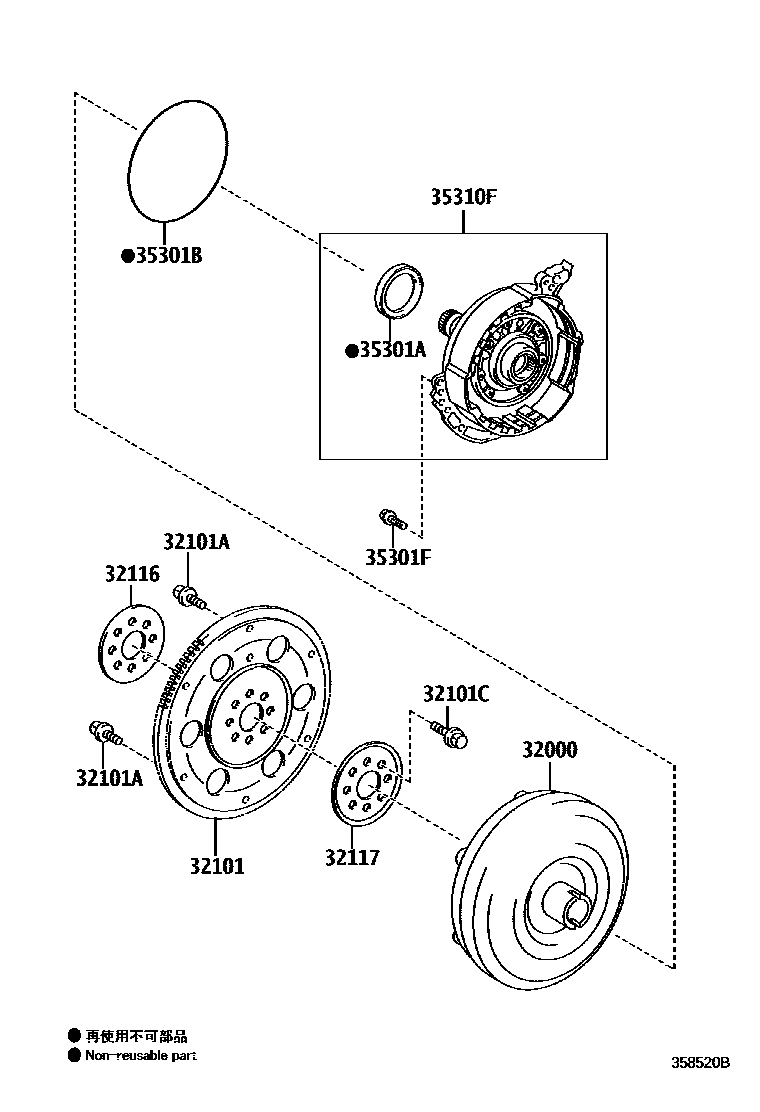

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1U760E,U760F *335 0002 1U760E,U760F *335 0003 1U760E,U760F *325 OR *451

32000CONVERTER ASSY, TORQUE

main32000-06050iASA4#201301-201402

*325

sub32000-06051

main32000-06051iASA4#201403-201505

*325

sub32000-06052

main32000-06052iASA4#201707

*451

sub32000-33143

main32000-06052iASA4#201506-201709

*325

sub32000-33143

main32000-73011iASA4#201301-201402

*335

sub32000-73012

main32000-73012iASA4#201403-201506

*335

sub32000-73013

main32000-73013iASA4#201507-201811

*335

sub32000-33143

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-06050iASA4#201301-201709

(L)

main32101-73010iASA42..(LIMD,SE)..CND201301-201709

(J)

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iASA42..(LIMD,SE)..CND201301-201709

*9-1.25PX12.4-7.3,BLACK

main90119-09025iASA42..(LIMD,SE)..CND201301-201709

*9-1.25PX12.4-8.4,SILVER WHITE

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12384iASA42..(LIMD,SE)..CND201301-201709

*12-1.25PX21-15

32116SPACER, DRIVE PLATE, FRONT

main32116-20050iASA4#201301-201709

32117SPACER, DRIVE PLATE, REAR

main32117-20060iASA44;ASA42..USA;ASA42..(LE,XLE)..CND201301-201709

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-43010iASA4#201301-201811

*335

main90311-43010iASA4#201707

*451

main90311-A0010iASA44201301-201709

*325

35301BRING, O (FOR FRONT OIL PUMP BODY)

main35697-06010iASA4#201707

*451

main35697-06010iASA4#201301-201709

*325

main35697-33010iASA4#201301-201811

*335

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-A0120iASA4#201301-201709

*8-1.25PX35-22,*325

main90105-A0120iASA4#201707

*8-1.25PX35-22,*451

main91551-80835iASA4#201301-201811

*8-1.25PX35-22,*335

35310FPUMP ASSY, FRONT OIL

main35310-73013iASA4#201301-201304

*335

10 parts on this diagram · 3 diagrams in section
