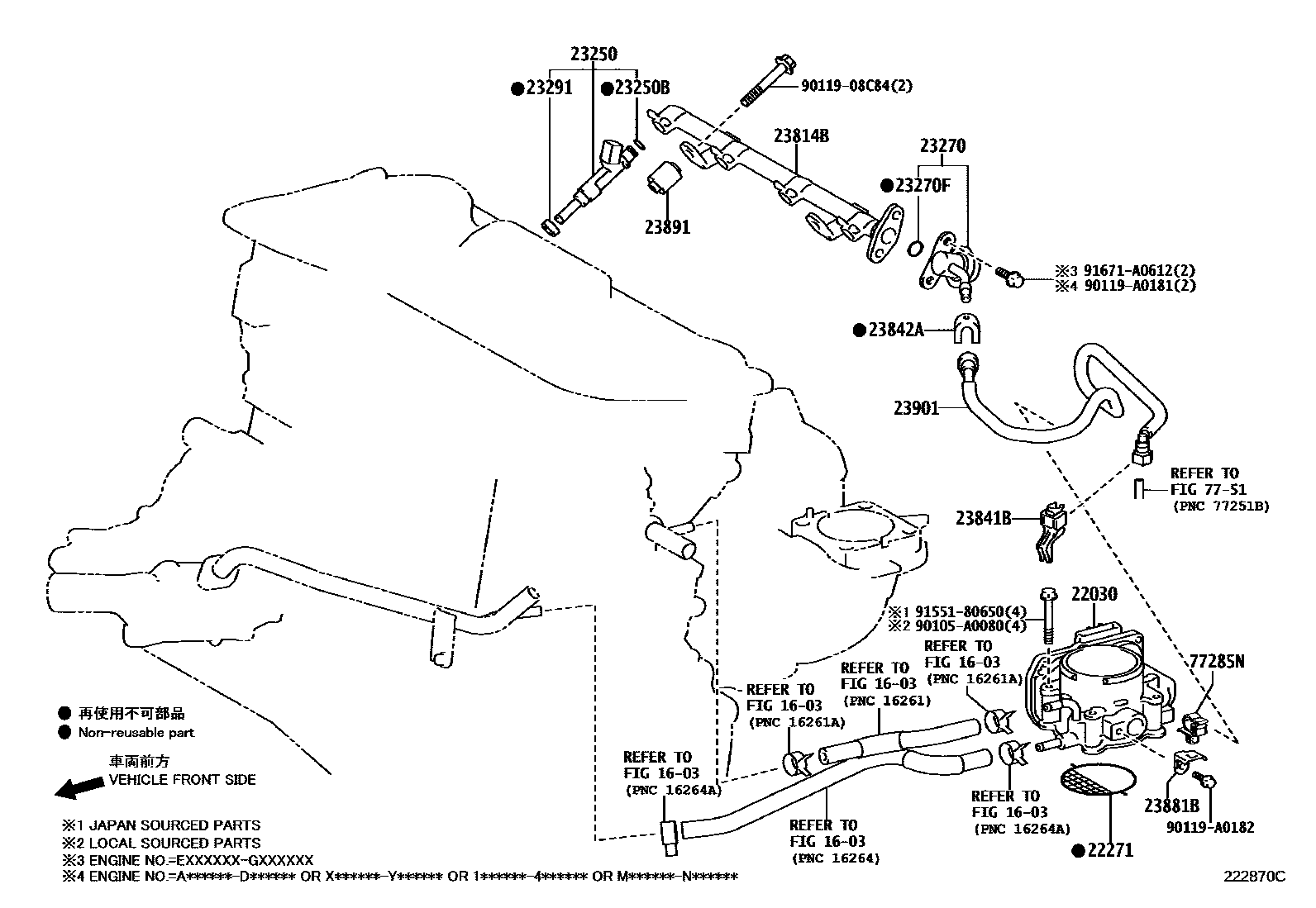

FUEL INJECTION SYSTEM

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0V010i2ARFE..ASA4#201301-201511

*364 OR *390

main22030-36010i2ARFE..ASA4#201301-201511

*265

22271GASKET, THROTTLE BODY

main22271-0V010i2ARFE..ASA4#201301-201511

*364 OR *390

main22271-36010i2ARFE..ASA4#201301-201511

*265

23250INJECTOR ASSY, FUEL

main23209-09175×4i2ARFE..ASA4#201301-201511

*364 OR *390

main23209-39175×4i2ARFE..ASA4#201301-201511

*265

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i2ARFE..ASA4#201301-201511

*265,(J),*364 OR *390

main90301-A0036×4i2ARFE..ASA42..(LIMD,SE)..CND201511-201709

(L),*364 OR *390

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-36031i2ARFE..ASA44;2ARFE..ASA42..USA;2ARFE..ASA42..(LE,XLE)..CND201511

*265,*364 OR *390

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i2ARFE..ASA42..(LIMD,SE)..CND201511-201709

*364 OR *390,*265

23291INSULATOR, INJECTOR VIBRATION

main23291-0V020×4i2ARFE..ASA4#201301-201511

(L),*364 OR *390

main23291-28020×4i2ARFE..ASA4#201301-201511

*265,(J),*364 OR *390

23814BPIPE, FUEL DELIVERY

main23814-36040i2ARFE..ASA4#201301-201511

*265,*364 OR *390

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-0V010i2ARFE..ASA4#201301-201511

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-0V010i2ARFE..ASA42..(LIMD,SE)..CND201511-201709

23881BBRACKET, FUEL HOSE

main23881-0V010i2ARFE..ASA4#201301-201511

23891SPACER, FUEL DELIVERY

main23891-36010×2i2ARFE..ASA4#201301-201511

*364 OR *390,*265

23901TUBE SUB-ASSY, FUEL

main23901-0V140i2ARFE..ASA4#201301-201511

77285NCLAMP, FUEL TUBE, NO.1

main77285-0R030iASA4#201301-201511

7751

90105A0080

main90105-A0080

9011908C84

main90119-08C84

90119A0181

main90119-A0181

90119A0182

main90119-A0182

9155180650

main91551-80650

91671A0612

main91671-A0612

22 parts on this diagram · 1 diagram in section
