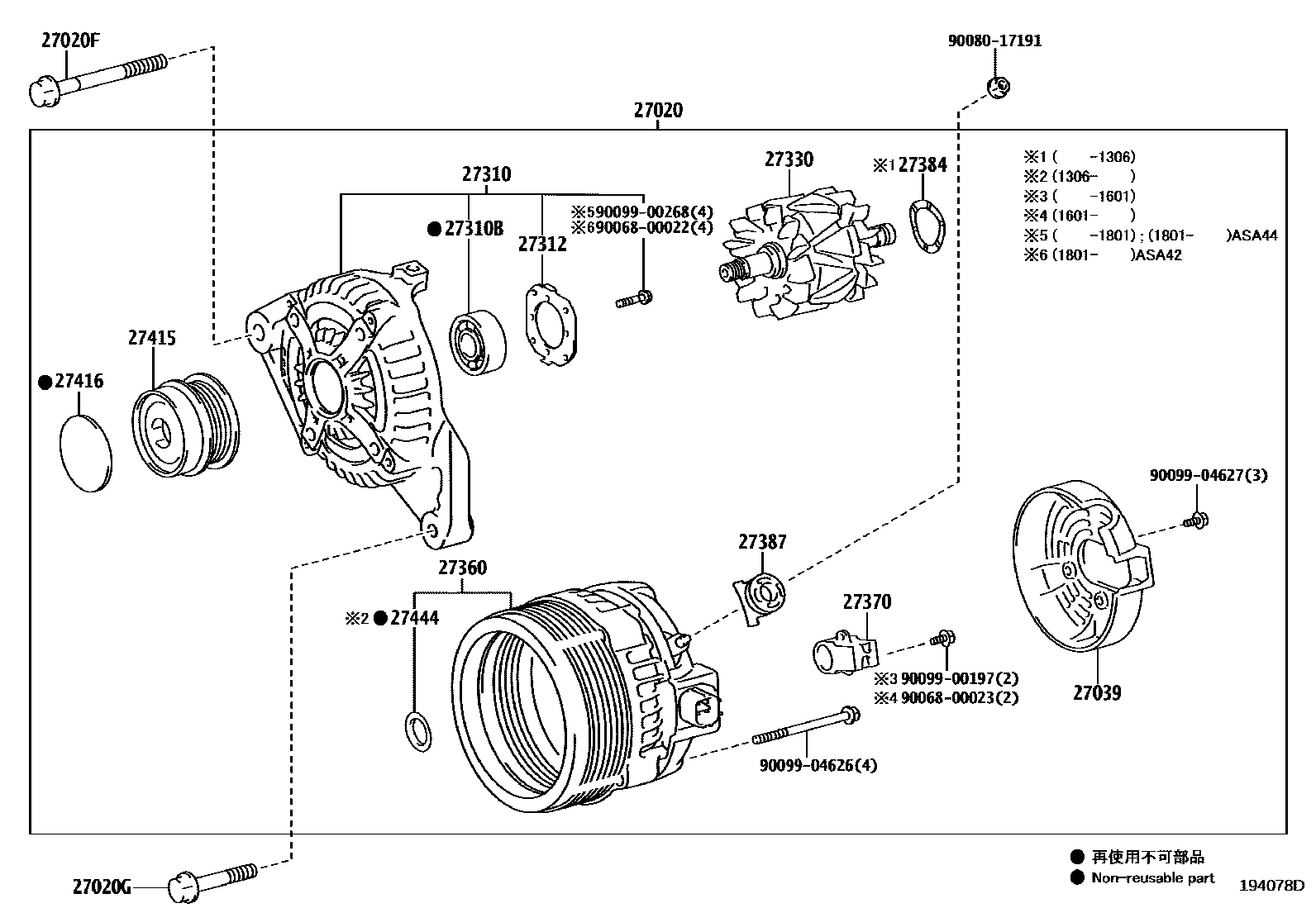

ALTERNATOR
27020ALTERNATOR ASSY
12V 100A
12V 100A
12V 100A
12V 100A
12V 130A,ADVENTURE PKG(REAR RAV4 EMBLEM = BLACK)
12V 130A,ADVENTURE PKG(REAR RAV4 EMBLEM = BLACK)&ACCESSORY CONNECTOR-WITH(REAR 120V 100W)
27020FBOLT, NO.1(FOR ALTERNATOR)
27020GBOLT, NO.2(FOR ALTERNATOR)
27039COVER, ALTERNATOR REAR END
27310FRAME ASSY, DRIVE END, ALTERNATOR
ADVENTURE PKG(REAR RAV4 EMBLEM = BLACK)
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
27312PLATE, RETAINER
27330ROTOR ASSY, ALTERNATOR
ADVENTURE PKG(REAR RAV4 EMBLEM = BLACK)
27360COIL ASSY, ALTERNATOR
ADVENTURE PKG(REAR RAV4 EMBLEM = BLACK)&ACCESSORY CONNECTOR-WITH(REAR 120V 100W)
ADVENTURE PKG(REAR RAV4 EMBLEM = BLACK)
27370HOLDER ASSY, ALTERNATOR BRUSH
27384WASHER
27387INSULATOR, TERMINAL
27415PULLEY, ALTERNATOR W/CLUTCH
27416CAP, ALTERNATOR PULLEY
27444PACKING, ALTERNATOR BEARING COVER
9006800022
main90068-00022
9006800023
main90068-00023
9008017191
main90080-17191
9009900197
main90099-00197
9009900268
main90099-00268
9009904626
main90099-04626
9009904627
main90099-04627
22 parts on this diagram · 2 diagrams in section
