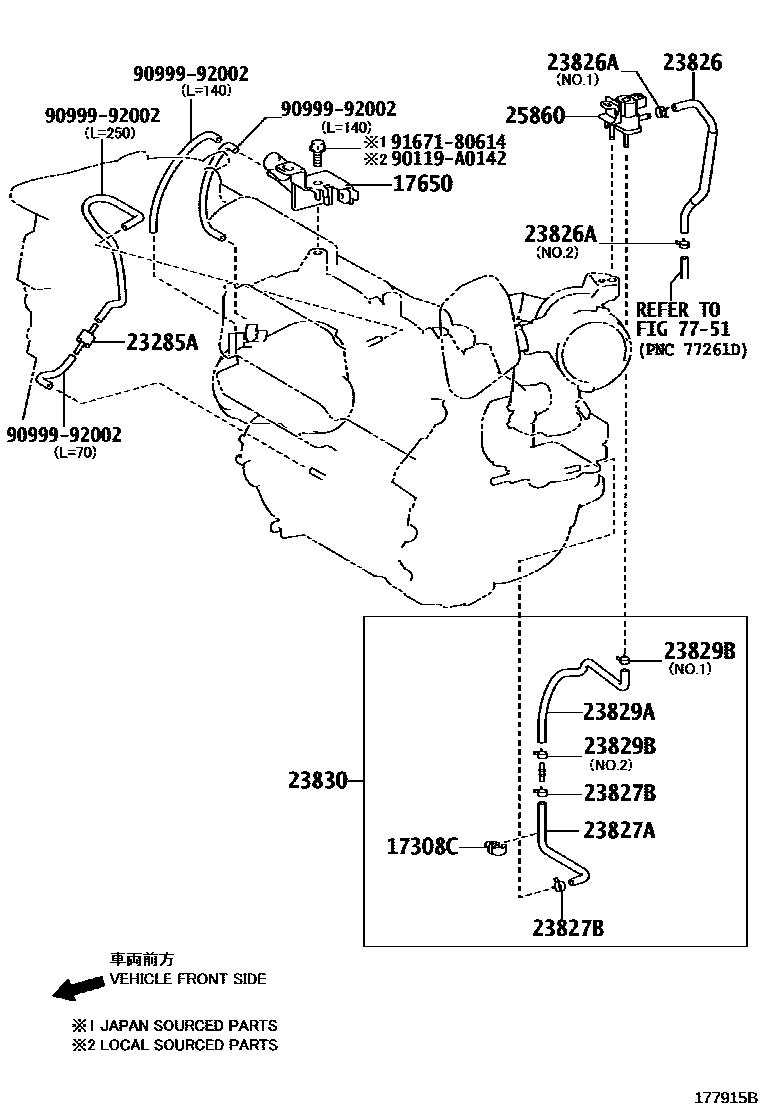

VACUUM PIPING

17308CCLAMP(FOR VACUUM HOSE)

main44783-70010i2ARFE..ASA4#201301-201709

17650VALVE ASSY, VACUUM SWITCHING

main25860-0V050i2ARFE..ASA44;2ARFE..ASA42..USA;2ARFE..ASA42..(LE,XLE)..CND201301-201709

*364 OR *390

main25860-36010i2ARFE..ASA42..(LIMD,SE)..CND201301-201709

*265

23285AVALVE, CHECK, NO.1

main90917-10065i2ARFE..ASA4#201301-201511

*265,*364 OR *390

main90917-10065i2ARFE..ASA42..(LIMD,SE)..CND201511-201709

*364 OR *390,*265

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0V180i2ARFE..ASA4#201301-201709

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11003i2ARFE..ASA44;2ARFE..ASA42..USA;2ARFE..ASA42..(LE,XLE)..CND201301-201709

NO.1:REFER ILLUST.

main96132-51300i2ARFE..ASA42..(LIMD,SE)..CND201301-201709

NO.2:REFER ILLUST.

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-0V010i2ARFE..ASA4#201301-201709

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96133-41300i2ARFE..ASA4#201301-201709

23829AHOSE, FUEL VAPOR FEED

main23826-0V190i2ARFE..ASA4#201301-201709

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-13004i2ARFE..ASA4#201301-201402

NO.1:REFER ILLUST.

main96133-41300i2ARFE..ASA4#201301-201511

NO.2:REFER ILLUST.

main96133-41300i2ARFE..ASA4#201402-201709

NO.1:REFER ILLUST.

23830HOSE ASSY, FUEL VAPOR FEED, NO.2

main23830-0V120i2ARFE..ASA4#201511-201811

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-0V140i2ARFE..ASA4#201301-201709

7751

90119A0142

main90119-A0142

9099992002

main90999-92002

9167180614

main91671-80614

15 parts on this diagram · 1 diagram in section
