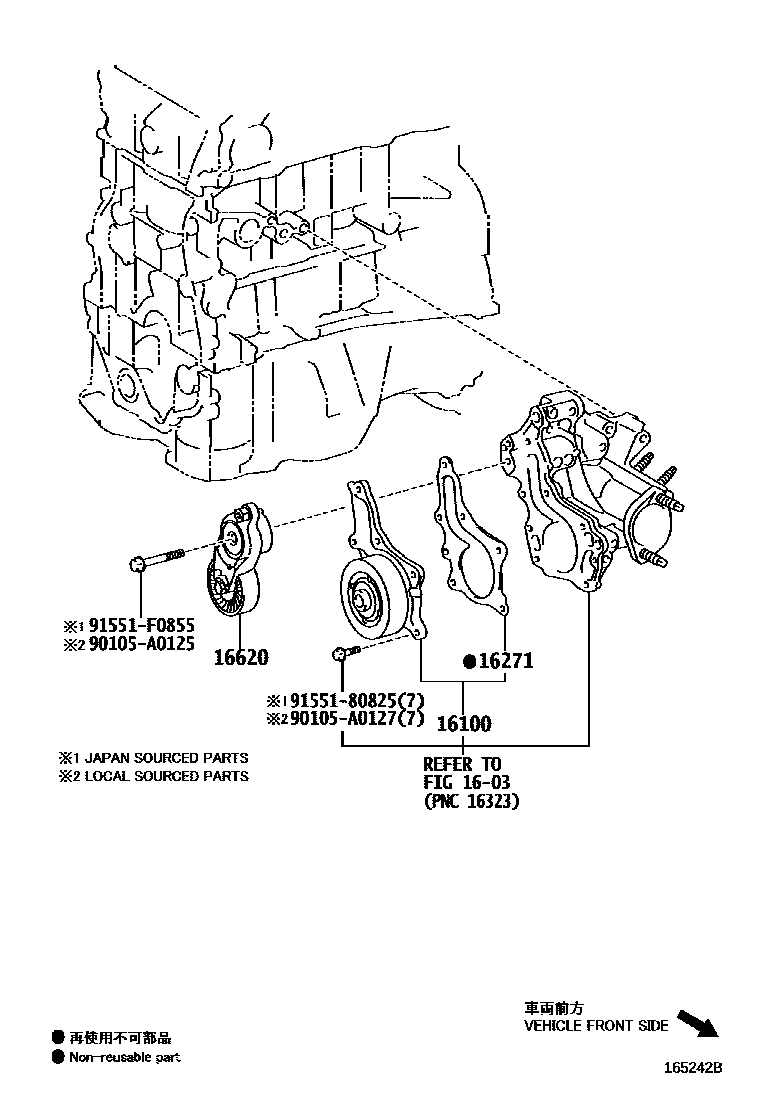

WATER PUMP

1603

16100PUMP ASSY, ENGINE WATER

main16100-09515i2ARFE..ASA4#..XLE..USA201709

ADVENTURE PKG(REAR RAV4 EMBLEM = BLACK),(L),*364 OR *390

main16100-09515i2ARFE..ASA44;2ARFE..ASA42..USA;2ARFE..ASA42..(LE,XLE)..CND201301-201709

*364 OR *390

main16100-39515i2ARFE..ASA4#..XLE..CND201709

ADVENTURE PKG(REAR RAV4 EMBLEM = BLACK),(J),*364 OR *390

sub16100-39516

main16100-39515i2ARFE..ASA4#201301-201709

*265

sub16100-39516

16271GASKET, WATER PUMP

main16271-36010i2ARFE..ASA42..(LIMD,SE)..CND201301-201709

*364 OR *390,*265

main16271-36010i2ARFE..ASA44;2ARFE..ASA42..USA;2ARFE..ASA42..(LE,XLE)..CND201511

*265,*364 OR *390

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0V020i2ARFE..ASA4#201301-201305

(L),*364 OR *390

sub16620-0V021

main16620-0V021i2ARFE..ASA4#201305-201405

(L),*364 OR *390

sub16620-0V022

main16620-0V022i2ARFE..ASA4#201405-201511

(L),*364 OR *390

main16620-36010i2ARFE..ASA4#201301-201402

*265,(J),*364 OR *390

sub16620-36011

main16620-36011i2ARFE..ASA4#201402-201509

*265,(J),*364 OR *390

sub16620-36012

main16620-36012i2ARFE..ASA4#201510-201712

*265,(J),*364 OR *390

sub16620-36013

main16620-36013i2ARFE..ASA4#201801

*265,(J),*364 OR *390

90105A0125

main90105-A0125

90105A0127

main90105-A0127

9155180825

main91551-80825

91551F0855

main91551-F0855

8 parts on this diagram · 1 diagram in section
