CRANKSHAFT & PISTON

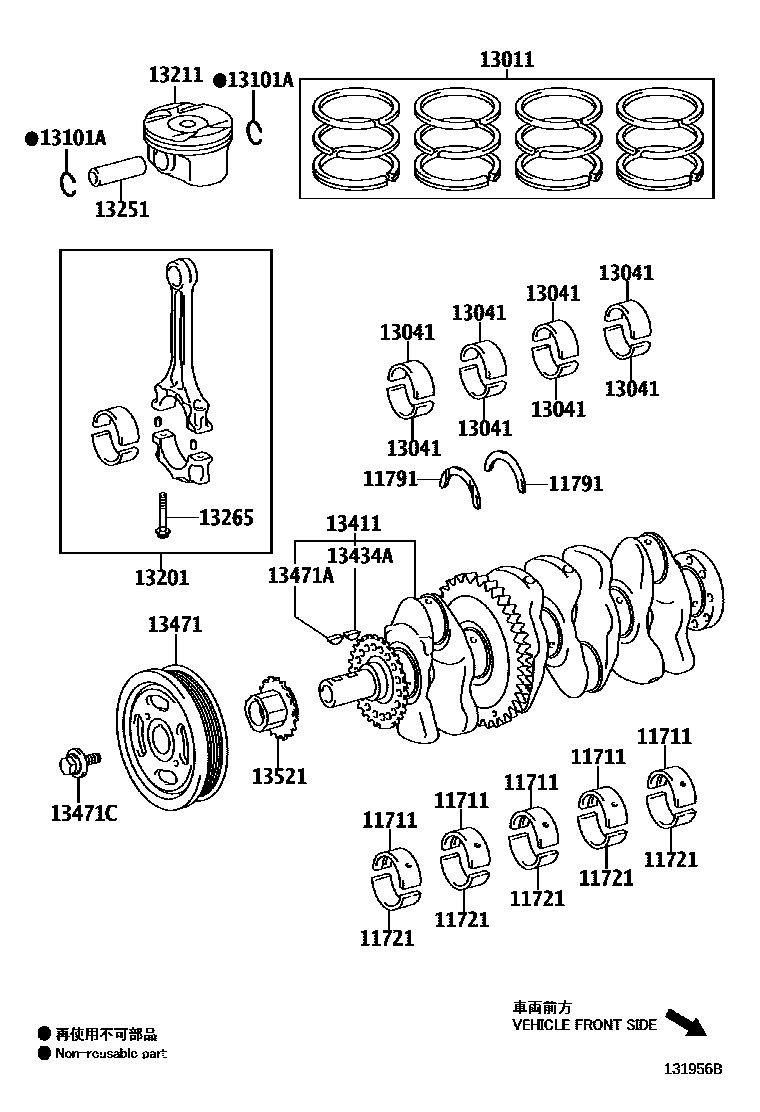

Parts diagram
11711BEARING, CRANKSHAFT
main11711-0V010-01i201301-201307
MARK 1,*364 OR *390,*RRM
main11711-0V010-02i201301-201307
MARK 2,*364 OR *390,*RRM
main11711-0V010-03i201301-201307
MARK 3,*364 OR *390,*RRM
main11711-0V010-04i201301-201307
MARK 4,*364 OR *390,*RRM
main11711-0V030-01i201307-201709
MARK 1,(L),*364OR*390,*RRM
main11711-0V030-02i201307-201709
MARK 2,(L),*364OR*390,*RRM
main11711-0V030-03i201307-201709
MARK 3,(L),*364OR*390,*RRM
main11711-0V030-04i201307-201709
MARK 4,(L),*364OR*390,*RRM
main11711-36050-01i201307-201511
MARK 1,(J),*364OR*390,*RRM
main11711-36050-01i201511-201709
MARK 1,*265:REFER R/M,(J),*364OR*390,*RRM
main11711-36050-01i201301-201511
MARK 1,*265:REFER R/M
main11711-36050-02i201301-201511
MARK 2,*265:REFER R/M
main11711-36050-02i201307-201511
MARK 2,(J),*364OR*390,*RRM
main11711-36050-02i201511-201709
MARK 2,*265:REFER R/M,(J),*364OR*390,*RRM
main11711-36050-03i201301-201511
MARK 3,*265:REFER R/M
main11711-36050-03i201511-201709
MARK 3,*265:REFER R/M,(J),*364OR*390,*RRM
main11711-36050-03i201307-201511
MARK 3,(J),*364OR*390,*RRM
main11711-36050-04i201511-201709
MARK 4,*265:REFER R/M,(J),*364OR*390,*RRM
main11711-36050-04i201307-201511
MARK 4,(J),*364OR*390,*RRM
main11711-36050-04i201301-201511
MARK 4,*265:REFER R/M
11721BEARING, CRANKSHAFT, NO.2
main11721-0V010-01i201301-201307
MARK 1,*364 OR *390,*RRM
main11721-0V010-02i201301-201307
MARK 2,*364 OR *390,*RRM
main11721-0V010-03i201301-201307
MARK 3,*364 OR *390,*RRM
main11721-0V010-04i201301-201307
MARK 4,*364 OR *390,*RRM
main11721-0V030-01i201307-201709
MARK 1,(L),*364OR*390,*RRM
main11721-0V030-02i201307-201709
MARK 2,(L),*364OR*390,*RRM
main11721-0V030-03i201307-201709
MARK 3,(L),*364OR*390,*RRM
main11721-0V030-04i201307-201709
MARK 4,(L),*364OR*390,*RRM
main11721-36050-01i201511-201709
MARK 1,*265:REFER R/M,(J),*364OR*390,*RRM
main11721-36050-01i201307-201511
MARK 1,(J),*364OR*390,*RRM
main11721-36050-01i201301-201511
MARK 1,*265:REFER R/M
main11721-36050-02i201307-201511
MARK 2,(J),*364OR*390,*RRM
main11721-36050-02i201511-201709
MARK 2,*265:REFER R/M,(J),*364OR*390,*RRM
main11721-36050-02i201301-201511
MARK 2,*265:REFER R/M
main11721-36050-03i201307-201511
MARK 3,(J),*364OR*390,*RRM
main11721-36050-03i201511-201709
MARK 3,*265:REFER R/M,(J),*364OR*390,*RRM
main11721-36050-03i201301-201511
MARK 3,*265:REFER R/M
main11721-36050-04i201307-201511
MARK 4,(J),*364OR*390,*RRM
main11721-36050-04i201511-201709
MARK 4,*265:REFER R/M,(J),*364OR*390,*RRM
main11721-36050-04i201301-201511
MARK 4,*265:REFER R/M
11791WASHER, CRANKSHAFT THRUST, UPPER
main11791-0V010i201301-201709
STD,*364 OR *390
main11791-36010i201301-201709
STD,*265
13011RING SET, PISTON
main13011-0V010i201301-201511
STD,PNC 13211=MARK 0V012
main13011-36070i201301-201402
STD,PNC 13211=MARK 36032
sub13011-36071
main13011-36071i201403-201511
STD,PNC 13211=MARK 36032
main13011-36120i201707-201812
STD,*265
sub13011-36170
main13011-36120i201407-201707
STD,PNC 13211=MARK 36090
sub13011-36170
13041BEARING, CONNECTING ROD
main13281-0V010-01i201301-201511
MARK 1,*364 OR *390,*RRM
sub13281-0V011
main13281-0V010-01i201511-201604
MARK 1,*364 OR *390
sub13281-0V011
main13281-0V010-02i201301-201511
MARK 2,*364 OR *390,*RRM
sub13281-0V011
main13281-0V010-02i201511-201604
MARK 2,*364 OR *390
sub13281-0V011
main13281-0V010-03i201301-201511
MARK 3,*364 OR *390,*RRM
sub13281-0V011
main13281-0V010-03i201511-201604
MARK 3,*364 OR *390
sub13281-0V011
main13281-0V011-01i201605
MARK 1,*364 OR *390
main13281-0V011-02i201605
MARK 2,*364 OR *390
main13281-0V011-03i201605
MARK 3,*364 OR *390
main13281-36020-01i201301-201312
MARK 1,*265:REFER R/M
sub13281-36021
main13281-36020-02i201301-201312
MARK 2,*265:REFER R/M
sub13281-36021
main13281-36020-03i201301-201312
MARK 3,*265:REFER R/M
sub13281-36021
main13281-36021-01i201401-201511
MARK 1,*265:REFER R/M
main13281-36021-02i201401-201511
MARK 2,*265:REFER R/M
main13281-36021-03i201401-201511
MARK 3,*265:REFER R/M
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90520-22025i201511-201709
*265,(J),*364 OR *390
main90520-22025i201309-201511
(J),*364 OR *390
main90520-22025i201301-201511
*265
main90520-A0004i201309-201709
(L),*364 OR *390
main90520-A0004i201301-201309
*364 OR *390
13201ROD SUB-ASSY, CONNECTING
main13201-09A45-A0i201308-201605
MARK A,(L),*364OR*390,*RRM
sub13201-09A46
main13201-09A45-A0i201301-201308
MARK A,*364 OR *390,*RRM
sub13201-09A46
main13201-09A45-B0i201308-201605
MARK B,(L),*364OR*390,*RRM
sub13201-09A46
main13201-09A45-B0i201301-201308
MARK B,*364 OR *390,*RRM
sub13201-09A46
main13201-09A45-C0i201301-201308
MARK C,*364 OR *390,*RRM
sub13201-09A46
main13201-09A45-C0i201308-201605
MARK C,(L),*364OR*390,*RRM
sub13201-09A46
main13201-09A46-A0i201605-201709
MARK A,(L),*364OR*390,*RRM
sub13201-39226
main13201-09A46-B0i201605-201709
MARK B,(L),*364OR*390,*RRM
sub13201-39226
main13201-09A46-C0i201605-201709
MARK C,(L),*364OR*390,*RRM
sub13201-39226
main13201-39225-A0i201308-201401
MARK A,(J),*364OR*390,*RRM
sub13201-39226
main13201-39225-A0i201301-201401
MARK A,*265:REFER R/M
sub13201-39226
main13201-39225-B0i201308-201401
MARK B,(J),*364OR*390,*RRM
sub13201-39226
main13201-39225-B0i201301-201401
MARK B,*265:REFER R/M
sub13201-39226
main13201-39225-C0i201301-201401
MARK C,*265:REFER R/M
sub13201-39226
main13201-39225-C0i201308-201401
MARK C,(J),*364OR*390,*RRM
sub13201-39226
main13201-39226-A0i201401-201511
MARK A,*265:REFER R/M,(J),*364OR*390,*RRM
main13201-39226-B0i201401-201511
MARK B,*265:REFER R/M,(J),*364OR*390,*RRM
main13201-39226-C0i201401-201511
MARK C,*265:REFER R/M,(J),*364OR*390,*RRM
13211PISTON
main13211-0V012-A0i201301-201511
MARK A,MARK 0V012,*RRM
main13211-0V012-B0i201301-201511
MARK B,MARK 0V012,*RRM
main13211-0V012-C0i201301-201511
MARK C,MARK 0V012,*RRM
main13211-36032-A0i201301-201511
MARK A,MARK 36032,*RRM
main13211-36032-B0i201301-201511
MARK B,MARK 36032,*RRM
main13211-36032-C0i201301-201511
MARK C,MARK 36032,*RRM
main13211-36090-A0i201407-201707
MARK A,MARK 36090,*RRM
main13211-36090-A0i201707
MARK A,*265:REFER R/M
main13211-36090-B0i201707
MARK B,*265:REFER R/M
main13211-36090-B0i201407-201707
MARK B,MARK 36090,*RRM
main13211-36090-C0i201407-201707
MARK C,MARK 36090,*RRM
main13211-36090-C0i201707
MARK C,*265:REFER R/M
13251PIN, PISTON
main13251-28020-A0i201301-201709
MARK A,*265:REFER R/M,*364 OR *390,*RRM
main13251-28020-B0i201301-201709
MARK B,*265:REFER R/M,*364 OR *390,*RRM
main13251-28020-C0i201301-201709
MARK C,*265:REFER R/M,*364 OR *390,*RRM
13265BOLT, CONNECTING ROD
main13265-31020i201301-201709
*364 OR *390,*265
13411CRANKSHAFT
main13401-0V010i201301-201307
(L),*364 OR *390
sub13401-36011
main13401-0V011i201307-201710
(L),*364 OR *390
sub13401-36011
main13401-36011i201309-201511
(J),*364 OR *390
main13401-36011i201301-201511
*265
main13401-36011i201511
*265,(J),*364 OR *390
13434AKEY(FOR OIL PUMP DRIVE SPLINE)
main95161-30516i201301-201511
*364 OR *390,*265
main95161-30516i201511-201709
*265,*364 OR *390
13471PULLEY, CRANKSHAFT
main13470-0V020i201301-201709
(L),*364 OR *390
main13470-36010i201301-201709
*265,(J),*364 OR *390
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main95161-30516i201301-201511
*364 OR *390,*265
main95161-30516i201511-201709
*265,*364 OR *390
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90119-16020i201301-201506
*364 OR *390
main90119-16020i201301-201511
*265
main90119-16020i201506-201511
(J),*364 OR *390
main90119-16020i201511-201709
*265,(J),*364 OR *390
main90119-A0265i201506-201709
(L),*364 OR *390
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-0V010i201301-201511
(L),*364 OR *390
main13521-36010i201301-201511
*265,(J),*364 OR *390
