VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-36020i2ARFE..ASA4#201301-201503

*364 OR *390

main12204-36020i2ARFE..ASA4#201301-201411

*265

main12204-36030i2ARFE..ASA4#201503-201511

*364 OR *390

main12204-36030i2ARFE..ASA44;2ARFE..ASA42..USA;2ARFE..ASA42..(LE,XLE)..CND201511

*265,*364 OR *390

main12204-36030i2ARFE..ASA42..(LIMD,SE)..CND201511-201709

*364 OR *390,*265

main12204-36030i2ARFE..ASA4#201411-201511

*265

12205CASE SUB-ASSY, VENTILATION

main12205-0V010i2ARFE..ASA4#201301-201709

*364 OR *390

main12205-36010i2ARFE..ASA42..(LIMD,SE)..CND201301-201709

*265

12205ARING, O(FOR VENTILATION CASE)

main12273-36010i2ARFE..ASA4#201301-201709

*364 OR *390,*265

12215SEPARATOR, CASE

main12215-0V010i2ARFE..ASA4#201301-201709

*364 OR *390

main12215-36010i2ARFE..ASA4#201301-201709

*265

12261HOSE, VENTILATION

main12261-36050i2ARFE..ASA4#201301-201709

12261BCLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-21004i2ARFE..ASA4#201301-201709

12262HOSE, VENTILATION, NO.2

main12262-36040i2ARFE..ASA4#201301-201709

*265,*364 OR *390

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-16035i2ARFE..ASA4#201301-201511

*364 OR *390,*265

main90467-16035i2ARFE..ASA42..(LIMD,SE)..CND201511-201709

*265,*364 OR *390

90105A0064

main90105-A0064

90105A0127

main90105-A0127

9012608052

main90126-08052

90126A0019

main90126-A0019

90178A0024

main90178-A0024

9155180616

main91551-80616

9155180825

main91551-80825

9415180800

main94151-80800

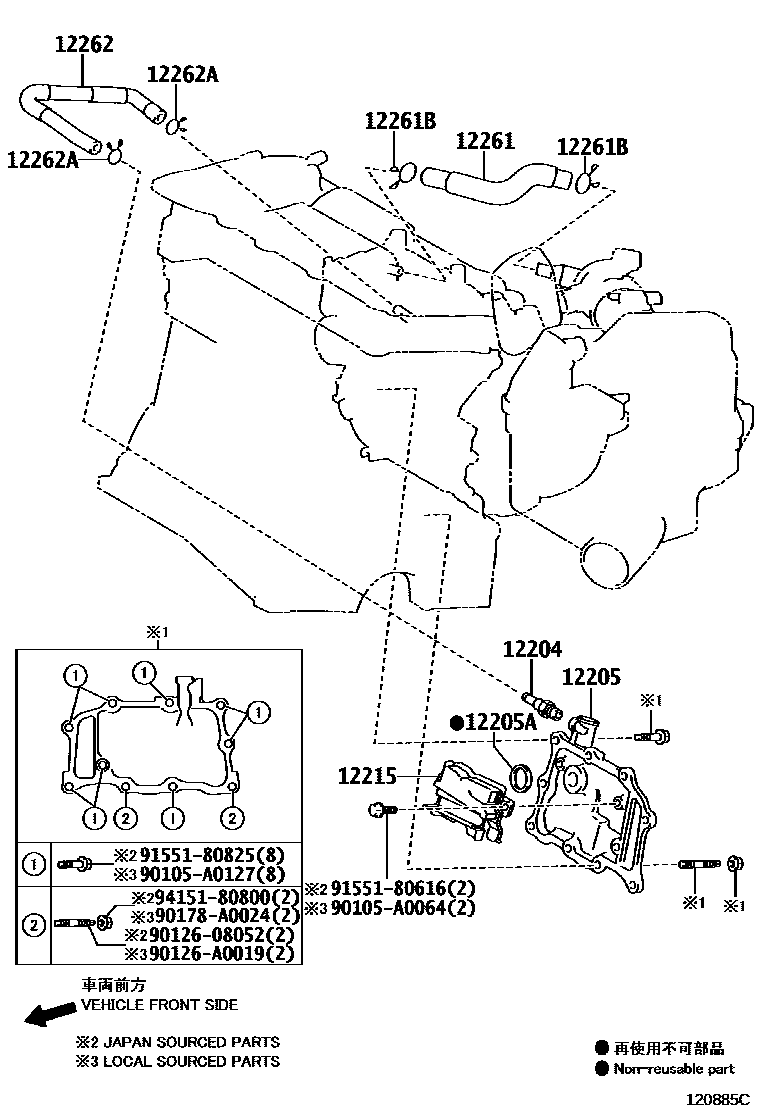

16 parts on this diagram · 1 diagram in section
