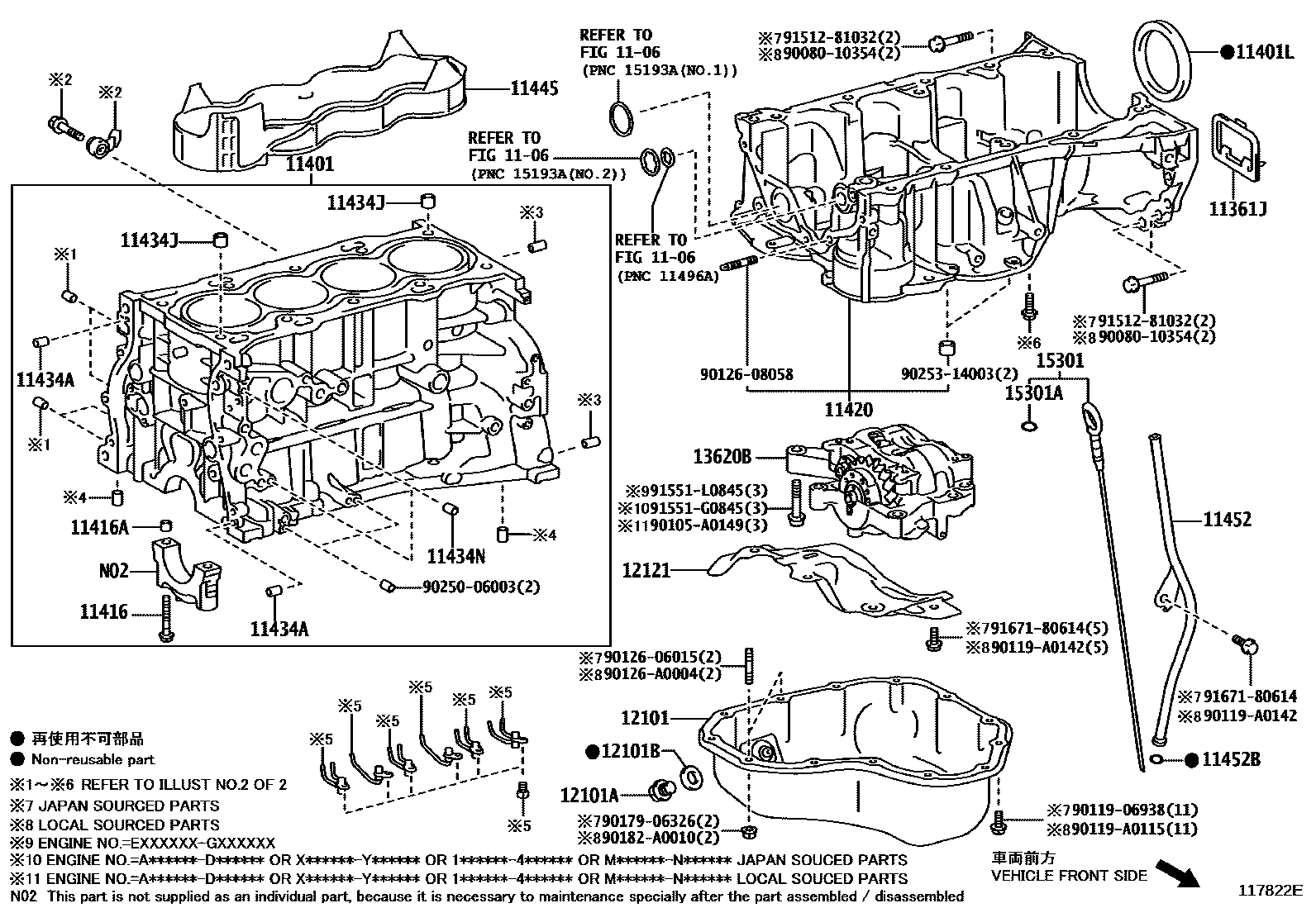

CYLINDER BLOCK

0001 1 0002 1

1106

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-0H020i2ARFE..ASA42..(LIMD,SE)..CND201301-201709

(L)

main11361-28010i2ARFE..ASA4#¥540201301-201709

(J)

11401BLOCK SUB-ASSY, CYLINDER

main11410-09395i2ARFE..ASA4#201301-201405

*364 OR *390

sub11410-09396

sub90250-06003¥90

main11410-39125i2ARFE..ASA4#¥263,000201301-201405

*265

sub11410-39126¥165,000

sub90250-06003¥90

main11410-39126i2ARFE..ASA4#¥165,000201405-201511

*265,*364 OR *390

11401LSEAL, ENGINE REAR OIL

main90311-89006i2ARFE..ASA4#¥1,390201301-201309

*265

sub90311-89013¥1,390

main90311-89013i2ARFE..ASA4#¥1,390201309-201408

*265

sub90311-89015¥1,390

main90311-89015i2ARFE..ASA44;2ARFE..ASA42..USA;2ARFE..ASA42..(LE,XLE)..CND¥1,390201408-201709

*265

main90311-A0020i2ARFE..ASA42..(LIMD,SE)..CND201301-201709

*364 OR *390

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02173i2ARFE..ASA42..(LIMD,SE)..CND¥240201511-201709

*265,(J),*364 OR *390

main90910-02173i2ARFE..ASA4#¥240201301-201511

*265

main90910-02173i2ARFE..ASA4#¥240201309-201511

(J),*364 OR *390

main90910-A2008i2ARFE..ASA42..(LIMD,SE)..CND201301-201709

(L),*364 OR *390

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-13017i2ARFE..ASA4#¥140201301-201511

*364 OR *390,*265

main90253-13017i2ARFE..ASA42..(LIMD,SE)..CND¥140201511-201709

*265,*364 OR *390

11420CRANKCASE ASSY, STIFFENING

main11420-0V010i2ARFE..ASA4#201301-201302

*364 OR *390

main11420-0V010i2ARFE..ASA42..(LIMD,SE)..CND201302-201709

(L),*364 OR *390

main11420-36020i2ARFE..ASA4#¥33,500201301-201511

*265

main11420-36020i2ARFE..ASA4#¥33,500201302-201511

(J),*364 OR *390

main11420-36020i2ARFE..ASA42..(LIMD,SE)..CND¥33,500201511-201709

*265,(J),*364 OR *390

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-06003i2ARFE..ASA4#¥90201301-201709

L=14,OD=6,*265,*364 OR *390

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-15001i2ARFE..ASA4#¥120201301-201511

*265,*364 OR *390

main90253-15001i2ARFE..ASA42..(LIMD,SE)..CND¥120201511-201709

*364 OR *390,*265

11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)

main90250-06003i2ARFE..ASA4#¥90201301-201511

*265,*364 OR *390

main90250-06003i2ARFE..ASA42..(LIMD,SE)..CND¥90201511-201709

*364 OR *390,*265

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-0V010i2ARFE..ASA4#201301-201709

*364 OR *390

main11445-36010i2ARFE..ASA4#¥1,700201301-201709

*265

11452GUIDE, OIL LEVEL GAGE

main11452-0V010i2ARFE..ASA4#201301-201709

*364 OR *390

main11452-36021i2ARFE..ASA4#¥2,070201301-201309

*265

main11452-36050i2ARFE..ASA42..(LIMD,SE)..CND¥1,300201309-201709

*265

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96741-19010i2ARFE..ASA4#¥250201301-201511

*265,*364 OR *390

main96741-19010i2ARFE..ASA44;2ARFE..ASA42..USA;2ARFE..ASA42..(LE,XLE)..CND¥250201511-201709

*364 OR *390,*265

12101PAN SUB-ASSY, OIL

main12101-0V030i2ARFE..ASA42..(LIMD,SE)..CND201301-201709

(L),*364 OR *390

main12101-36050i2ARFE..ASA42..(LIMD,SE)..CND¥11,600201301-201709

*265,(J),*364 OR *390

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2ARFE..ASA4#¥160201301-201511

*364 OR *390,*265

main90341-12012i2ARFE..ASA42..(LIMD,SE)..CND¥160201511-201709

*265,*364 OR *390

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i2ARFE..ASA4#¥90201301-201511

*364 OR *390,*265

main90430-12031i2ARFE..ASA42..(LIMD,SE)..CND¥90201511-201709

*265,*364 OR *390

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-0V010i2ARFE..ASA4#201301-201709

*364 OR *390

main12121-36030i2ARFE..ASA42..(LIMD,SE)..CND¥1,720201301-201709

*265

13620BBALANCER ASSY, ENGINE

main13620-0V021i2ARFE..ASA42..(LIMD,SE)..CND201301-201709

(L),*364 OR *390

sub13620-0V050

main13620-36020i2ARFE..ASA42..(LIMD,SE)..CND¥34,400201301-201709

*265,(J),*364 OR *390

15301GAGE SUB-ASSY, OIL LEVEL

main15301-0V020i2ARFE..ASA42..(LIMD,SE)..CND201301-201709

*364 OR *390

main15301-36031i2ARFE..ASA44;2ARFE..ASA42..USA;2ARFE..ASA42..(LE,XLE)..CND¥1,000201301-201709

*265

sub15301-36032¥750

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i2ARFE..ASA4#¥140201301-201811

9008010354

main90080-10354

90105A0149

main90105-A0149

9011906938

main90119-06938¥60

90119A0115

main90119-A0115

90119A0142

main90119-A0142

9012606015

main90126-06015¥110

9012608058

main90126-08058¥80

90126A0004

main90126-A0004

9017906326

main90179-06326¥60

90182A0010

main90182-A0010

9025006003

main90250-06003¥90

9025314003

main90253-14003¥140

9151281032

main91512-81032¥110

91551G0845

main91551-G0845¥100

91551L0845

main91551-L0845¥100

9167180614

main91671-80614¥60

36 parts on this diagram · 2 diagrams in section
