ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-0R140iASA3#,GSA3#..NAP..LIMD200811-201112

AUDIO-6CD CHANGER,SDARS,UNIQUE-PANEL

main86101-0R160iASA3#,GSA3#..NAP..(SPO,STD)200811-201112

MEXICO SPEC

main86101-0R160iASA3#,GSA3#..NAP..(SPO,STD)200811-201112

MEXICO SPEC&AUDIO-6CD CHANGER,SDARS,UNIQUE-PANEL

main86101-0R160iASA3#,GSA3#..NAP..(SPO,STD)200811-201112

AUDIO-DVD-NAVIGATION,CD,MULTI-PANEL

main86101-0R161iASA3#,GSA3#..NAP201112

MEXICO SPEC&AUDIO-DISPLAY AUDIO USA

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-0R130iASA3#,GSA3#..NAP..LIMD200811-201112

AUDIO-6CD CHANGER,SDARS,UNIQUE-PANEL

main86101-0R150iASA3#,GSA3#..NAP..(SPO,STD)200811-201112

MEXICO SPEC

main86101-0R150iASA3#,GSA3#..NAP..(SPO,STD)200811-201112

MEXICO SPEC&AUDIO-6CD CHANGER,SDARS,UNIQUE-PANEL

main86101-0R150iASA3#,GSA3#..NAP..(SPO,STD)200811-201112

AUDIO-DVD-NAVIGATION,CD,MULTI-PANEL

main86101-0R151iASA3#,GSA3#..NAP201112

MEXICO SPEC&AUDIO-DISPLAY AUDIO USA

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-02090iASA3#,GSA3#..NAP200811

86396NUT, ANTENNA

main86396-30050iASA3#,GSA3#..NAP200811-201004

main86396-47010iASA3#,GSA3#..NAP201005

86960ANTENNA ASSY, SATELLITE RADIO

main86300-0R030iASA3#,GSA3#..NAP201201

main86960-0R020iASA3#,GSA3#..NAP200811-201201

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750

9008011545

main90080-11545

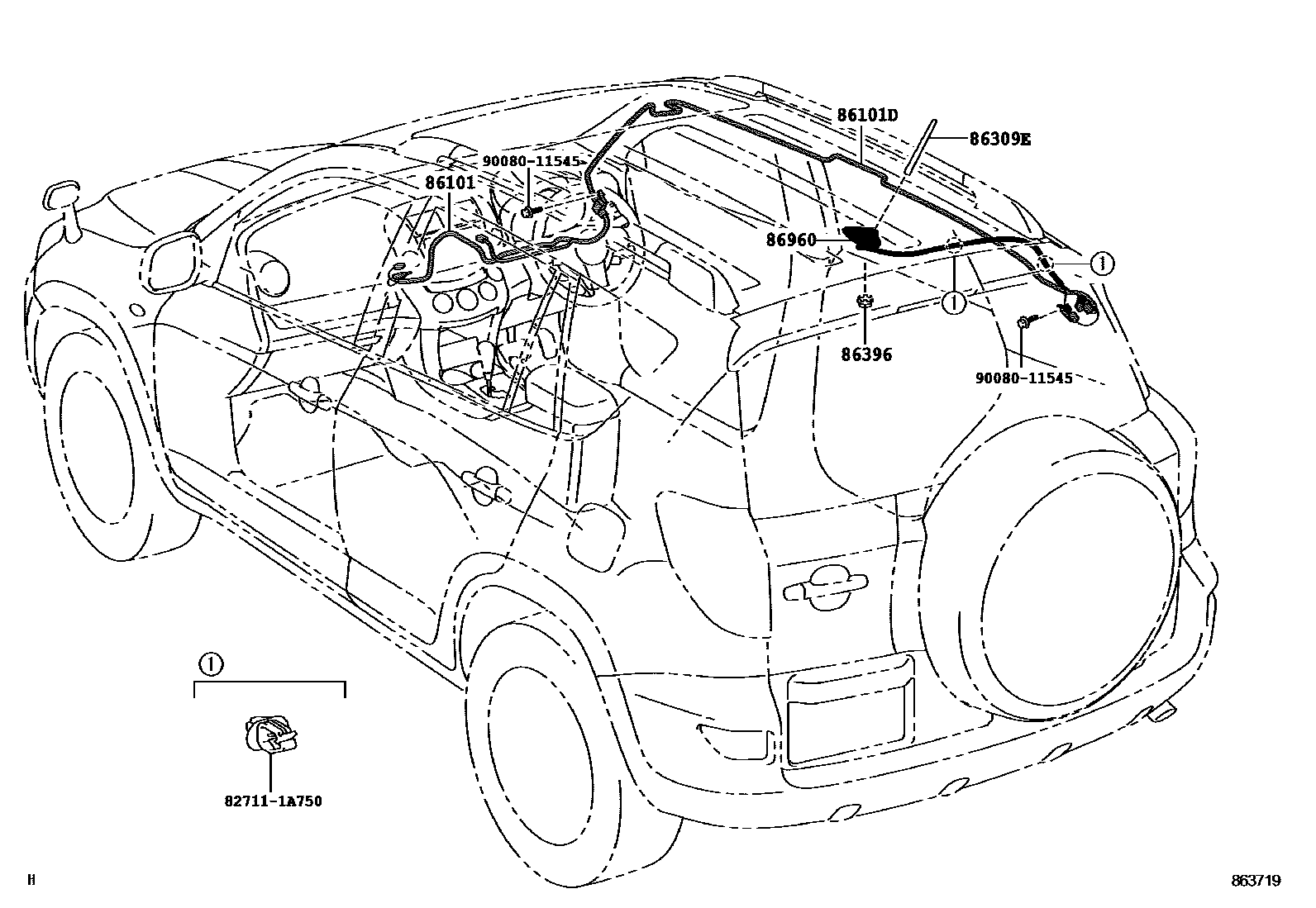

7 parts on this diagram · 1 diagram in section
