WIRING & CLAMP

0001 1ENGINE ROOM 1/2 0002 1ENGINE ROOM 2/2 0003 1ENGINE 0004 1ENGINE 0005 1INSTRUMENT PANEL 0006 1DOOR 0007 1FLOOR & ROOF 0008 1SEAT 0009 1CLAMP & BRACKET 0010 1CABLE BOND 0011 1CONNECTOR 0012 1CONNECTOR

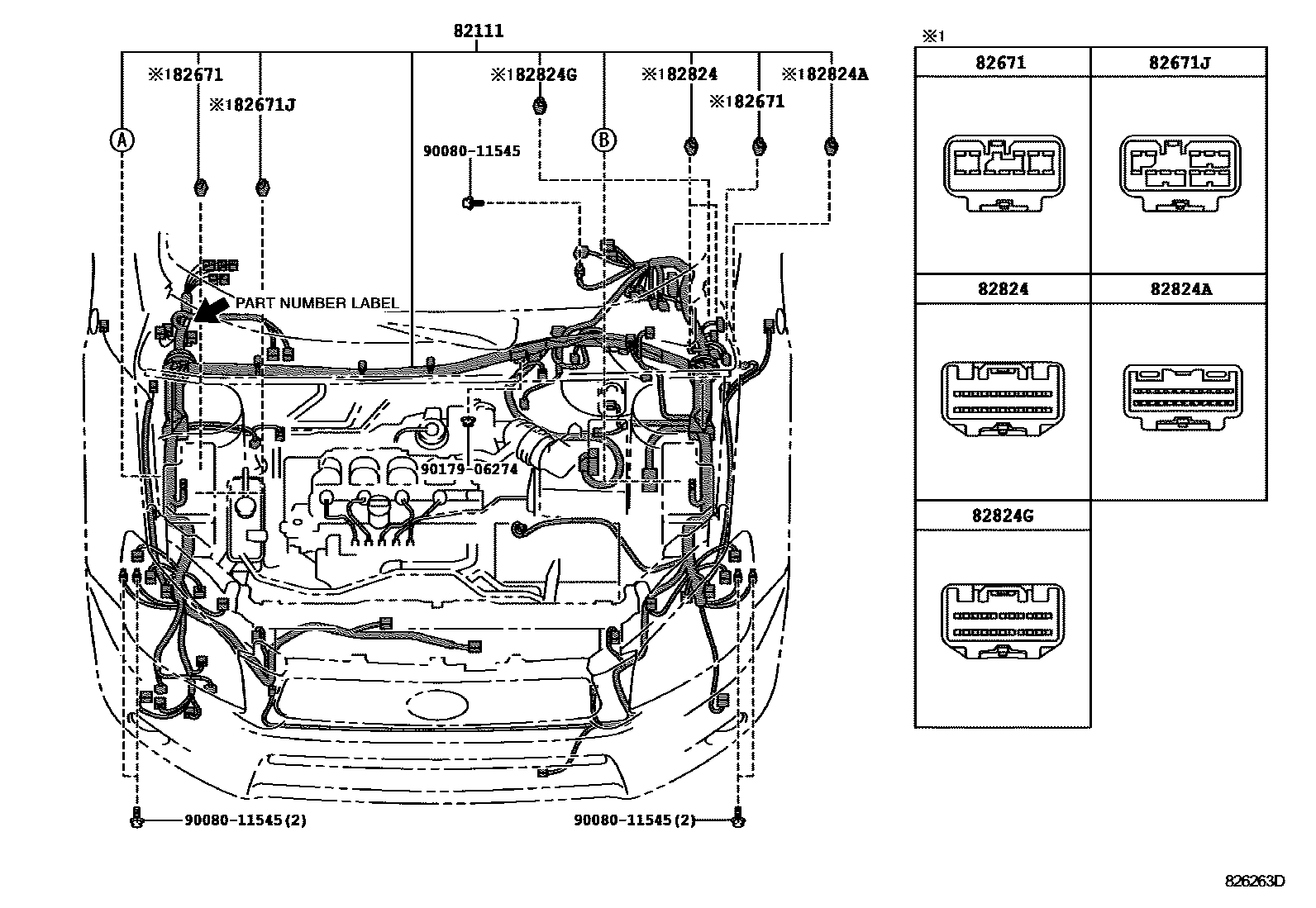

82111WIRE, ENGINE ROOM MAIN

main82111-0R010iASA3#..NAP200811-200909

main82111-0R011iASA3#..NAP..(LIMD,SPO)..CND200909-201112

main82111-0R012iASA3#..NAP..(LIMD,SPO)..CND201112

main82111-0R020iGSA3#..NAP200811

main82111-0R071iASA3#..NAP..STD..CND200909-201112

main82111-0R072iASA3#..NAP..STD..CND201112

main82111-0R081iASA3#..NAP..(LIMD,SPO)..USA200909-201112

main82111-0R082iASA3#..NAP..(LIMD,SPO)..USA201112

main82111-0R091iASA3#..NAP..STD..USA200909-201112

main82111-0R092iASA3#..NAP..STD..USA201112

82671BLOCK, JUNCTION

main82671-30360iASA3#,GSA3#..NAP200811-201105

82671JBLOCK, JUNCTION, NO.2

main82671-30370iASA3#,GSA3#..NAP200811-201105

82824CONNECTOR, WIRING HARNESS

main82824-47210iASA3#,GSA3#..NAP200811-201105

82824ACONNECTOR, WIRING HARNESS

main82824-50340iASA3#,GSA3#..NAP201105

82824GCONNECTOR, WIRING HARNESS

main82824-30220iASA3#,GSA3#..NAP200811

9008011545

main90080-11545

9017906274

main90179-06274

8 parts on this diagram · 12 diagrams in section
