SEAT BELT

0001 1FRONT SEAT 0002 1REAR NO.1 SEAT 0003 1REAR NO.2 SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-0R010-B0iASA3#,GSA3#..NAP200811-201301

GRAY,TRIM1#

main73023-0R010-E0iASA3#,GSA3#..NAP..(LIMD,STD)200811-201301

SAND BEIGE,TRIM4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-0R010-B0iASA3#,GSA3#..NAP200811-201301

GRAY,TRIM1#

main73024-0R010-E0iASA3#,GSA3#..NAP..(LIMD,STD)200811-201301

SAND BEIGE,TRIM4#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-06040iASA3#,GSA3#..NAP¥4,410200811

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0R010-B0iASA3#,GSA3#..NAP..SPO200811-201008

DK.GRAY,TRIM1#

sub73210-0R011

main73210-0R010-B1iASA3#,GSA3#..NAP..(LIMD,STD)200811-201008

GRAY,TRIM1#

sub73210-0R011

main73210-0R010-E0iASA3#,GSA3#..NAP..(LIMD,STD)200811-201008

SAND BEIGE,TRIM4#

sub73210-0R011

main73210-0R011-B2iASA3#,GSA3#..NAP..SPO201009-201301

DK.GRAY,TRIM1#

main73210-0R011-B3iASA3#,GSA3#..NAP..(LIMD,STD)201009-201301

GRAY,TRIM1#

main73210-0R011-E0iASA3#,GSA3#..NAP..(LIMD,STD)201009-201301

SAND BEIGE,TRIM4#

73219STOPPER, TONGUE PLATE

main73219-02010iASA3#,GSA3#..NAP¥80200811

BLACK

main73219-02020iASA3#,GSA3#..NAP¥80200811

GRAY

main73219-02030iASA3#,GSA3#..NAP¥80200811

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0R010-B0iASA3#,GSA3#..NAP..SPO200811-201008

DK.GRAY,TRIM1#

sub73220-0R011

main73220-0R010-B1iASA3#,GSA3#..NAP..(LIMD,STD)200811-201008

GRAY,TRIM1#

sub73220-0R011

main73220-0R010-E0iASA3#,GSA3#..NAP..(LIMD,STD)200811-201008

SAND BEIGE,TRIM4#

sub73220-0R011

main73220-0R011-B2iASA3#,GSA3#..NAP..SPO201009-201301

DK.GRAY,TRIM1#

main73220-0R011-B3iASA3#,GSA3#..NAP..(LIMD,STD)201009-201301

GRAY,TRIM1#

main73220-0R011-E0iASA3#,GSA3#..NAP..(LIMD,STD)201009-201301

SAND BEIGE,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0R020-B0iASA3#,GSA3#..NAP..SPO200811-201301

DK.GRAY,TRIM1#

main73230-0R020-B1iASA3#,GSA3#..NAP..(LIMD,STD)200811-201301

GRAY,TRIM1#

main73230-0R020-E0iASA3#,GSA3#..NAP..(LIMD,STD)200811-201301

SAND BEIGE,TRIM4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-0R010iASA3#,GSA3#..NAP200811

(L)

main73233-42030iASA3#,GSA3#..NAP¥310200811

(J)

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0R010-B0iASA3#,GSA3#..NAP..SPO200811-201301

DK.GRAY,TRIM1#

main73230-0R010-B1iASA3#,GSA3#..NAP..(LIMD,STD)200811-201301

GRAY,TRIM1#

main73230-0R010-E0iASA3#,GSA3#..NAP..(LIMD,STD)200811-201301

SAND BEIGE,TRIM4#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010¥170

9008017195

main90080-17195

9010510523

main90105-10523¥100

90105A0082

main90105-A0082

90109A0033

main90109-A0033

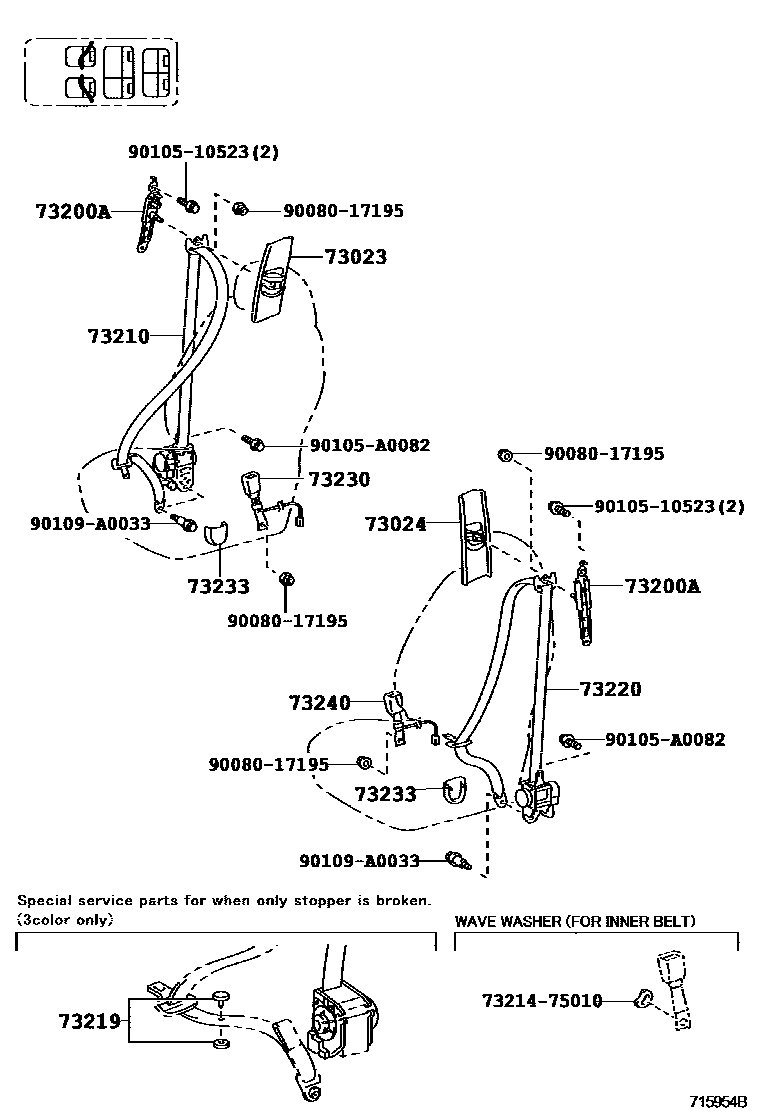

14 parts on this diagram · 3 diagrams in section
