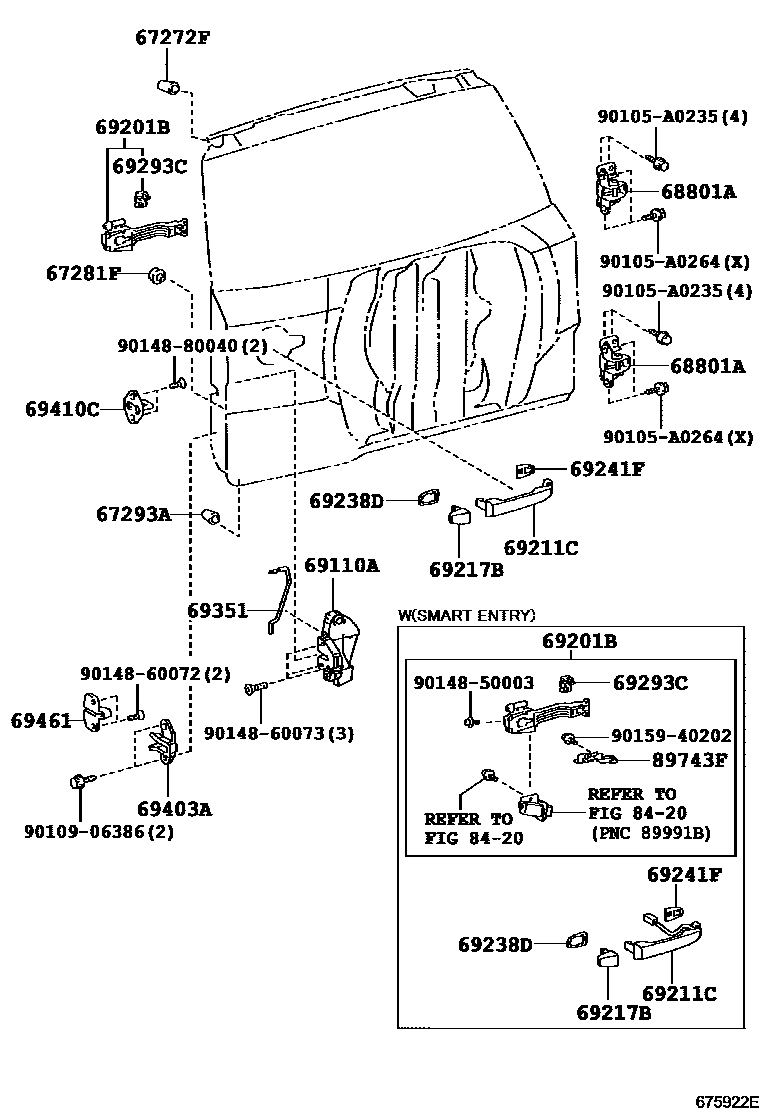

BACK DOOR LOCK & HINGE

67272FCUSHION, BACK DOOR STOPPER, NO.2

main90541-09108iASA3#,GSA3#..NAP200811

67281FSTOPPER, BACK DOOR, LOWER

main67282-0R010iASA3#,GSA3#..NAP200811

67293ACUSHION, BACK DOOR STOPPER

main67293-42030iASA3#,GSA3#..NAP200811

68801AHINGE SUB-ASSY, BACK DOOR, UPPER

main68801-0R010×2iASA3#,GSA3#..NAP200811

69110ALOCK ASSY, BACK DOOR W/MOTOR

main69110-0R010iASA3#,GSA3#..NAP200811-201110

main69110-0R011iASA3#,GSA3#..NAP201111

sub69110-42131

69201BFRAME SUB-ASSY, BACK DOOR OUTSIDE HANDLE

main69201-02120iASA3#,GSA3#..NAP..(SPO,STD)200811-201301

main69201-02210iASA3#,GSA3#..NAP..LIMD200811-201301

69211CHANDLE, BACK DOOR OUTSIDE

main69210-02110-A1iASA3#,GSA3#..NAP..LIMD200811-201301

WHITE PEARL CS.,070

main69210-02110-B0iASA3#,GSA3#..NAP..LIMD200811-201301

SILVER ME.,1F7

main69210-02110-C1iASA3#,GSA3#..NAP..LIMD200811-201301

BLACK,202

main69210-02110-D0iASA3#,GSA3#..NAP..LIMD200811-201301

RED M.M.,3R3

main69210-02110-E1iASA3#,GSA3#..NAP..LIMD200811-201301

BRONZE M.M.,4T3

main69210-02110-E2iASA3#,GSA3#..NAP..LIMD200811-201301

BEIGE ME.,4T8

main69210-02110-G0iASA3#,GSA3#..NAP..LIMD200811-201301

DK.GREEN MC.,6T3

main69210-02110-J1iASA3#,GSA3#..NAP..LIMD200811-201301

GRAYISH BLUE ME.,8R3

main69211-AA020-A0iASA3#,GSA3#..NAP..(SPO,STD)200811-201301

SUPER WHITE 2,040

main69211-AA020-B6iASA3#,GSA3#..NAP..SPO200811-201301

GRAY ME.,1G3

main69211-AA020-B7iASA3#,GSA3#..NAP..(SPO,STD)200811-201301

SILVER ME.,1F7

main69211-AA020-C0iASA3#,GSA3#..NAP..(SPO,STD)200811-201301

BLACK,202

main69211-AA020-D6iASA3#,GSA3#..NAP..(SPO,STD)200811-201301

RED M.M.,3R3

main69211-AA020-E3iASA3#,GSA3#..NAP..STD200811-201301

BRONZE M.M.,4T3

main69211-AA020-E4iASA3#,GSA3#..NAP..STD200811-201301

BEIGE ME.,4T8

main69211-AA020-G2iASA3#,GSA3#..NAP..(SPO,STD)200811-201301

DK.GREEN MC.,6T3

main69211-AA020-R1iASA3#,GSA3#..NAP..(SPO,STD)200811-201301

GRAYISH BLUE ME.,8R3

69217BCOVER, BACK DOOR OUTSIDE HANDLE

main69217-02230-A1iASA3#,GSA3#..NAP..LIMD200811-201301

WHITE PEARL CS.,070

main69217-02230-B0iASA3#,GSA3#..NAP..LIMD200811-201301

SILVER ME.,1F7

main69217-02230-C1iASA3#,GSA3#..NAP..LIMD200811-201301

BLACK,202

main69217-02230-D0iASA3#,GSA3#..NAP..LIMD200811-201301

RED M.M.,3R3

main69217-02230-E1iASA3#,GSA3#..NAP..LIMD200811-201301

BRONZE M.M.,4T3

main69217-02230-E2iASA3#,GSA3#..NAP..LIMD200811-201301

BEIGE ME.,4T8

main69217-02230-G0iASA3#,GSA3#..NAP..LIMD200811-201301

DK.GREEN MC.,6T3

main69217-02230-J1iASA3#,GSA3#..NAP..LIMD200811-201301

GRAYISH BLUE ME.,8R3

main69217-AA010iASA3#,GSA3#..NAP..(SPO,STD)200811-200904

main69217-AA010-A1iASA3#,GSA3#..NAP..(SPO,STD)200904-201301

SUPER WHITE 2,040

main69217-AA010-B3iASA3#,GSA3#..NAP..SPO200904-201301

GRAY ME.,1G3

main69217-AA010-B4iASA3#,GSA3#..NAP..(SPO,STD)200904-201301

SILVER ME.,1F7

main69217-AA010-C0iASA3#,GSA3#..NAP..(SPO,STD)200904-201301

BLACK,202

main69217-AA010-D2iASA3#,GSA3#..NAP..(SPO,STD)200904-201301

RED M.M.,3R3

main69217-AA010-E2iASA3#,GSA3#..NAP..STD200904-201301

BRONZE M.M.,4T3

main69217-AA010-E3iASA3#,GSA3#..NAP..STD200904-201301

BEIGE ME.,4T8

main69217-AA010-G2iASA3#,GSA3#..NAP..(SPO,STD)200904-201301

DK.GREEN MC.,6T3

main69217-AA010-J6iASA3#,GSA3#..NAP..(SPO,STD)200904-201301

GRAYISH BLUE ME.,8R3

69238DCUSHION, BACK DOOR OUTSIDE HANDLE

main69238-AA010iASA3#,GSA3#..NAP200811-201301

69241FPAD, DOOR OUTSIDE HANDLE

main69241-AA020iASA3#,GSA3#..NAP200811-201301

69293CSNAP, BACK DOOR HANDLE

main69293-12030iASA3#,GSA3#..NAP..LIMD200811-201301

main69293-33010iASA3#,GSA3#..NAP..(SPO,STD)200811-201301

69351ROD, BACK DOOR LOCK CONTROL, UPPER

main69378-0R010iASA3#,GSA3#..NAP200811

69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH

main69403-0R010iASA3#,GSA3#..NAP200811-200910

main69403-0R011iASA3#,GSA3#..NAP201009

main69403-60011iASA3#,GSA3#..NAP200911-201008

69410CPLATE ASSY, BACK DOOR LOCK STRIKER

main69410-60010iASA3#,GSA3#..NAP200811

69461STOPPER, BACK DOOR SIDE MALE, RH

main69461-0R010iASA3#,GSA3#..NAP200811-200910

main69461-0R011iASA3#,GSA3#..NAP200911

8420

89743FBRACKET, ELECTRICAL KEY WIRE HARNESS

main89743-47010iASA3#,GSA3#..NAP..LIMD200811-201301

90105A0235

main90105-A0235

90105A0264

main90105-A0264

9010906386

main90109-06386

9014850003

main90148-50003

9014860072

main90148-60072

9014860073

main90148-60073

9014880040

main90148-80040

9015940202

main90159-40202

25 parts on this diagram · 1 diagram in section
