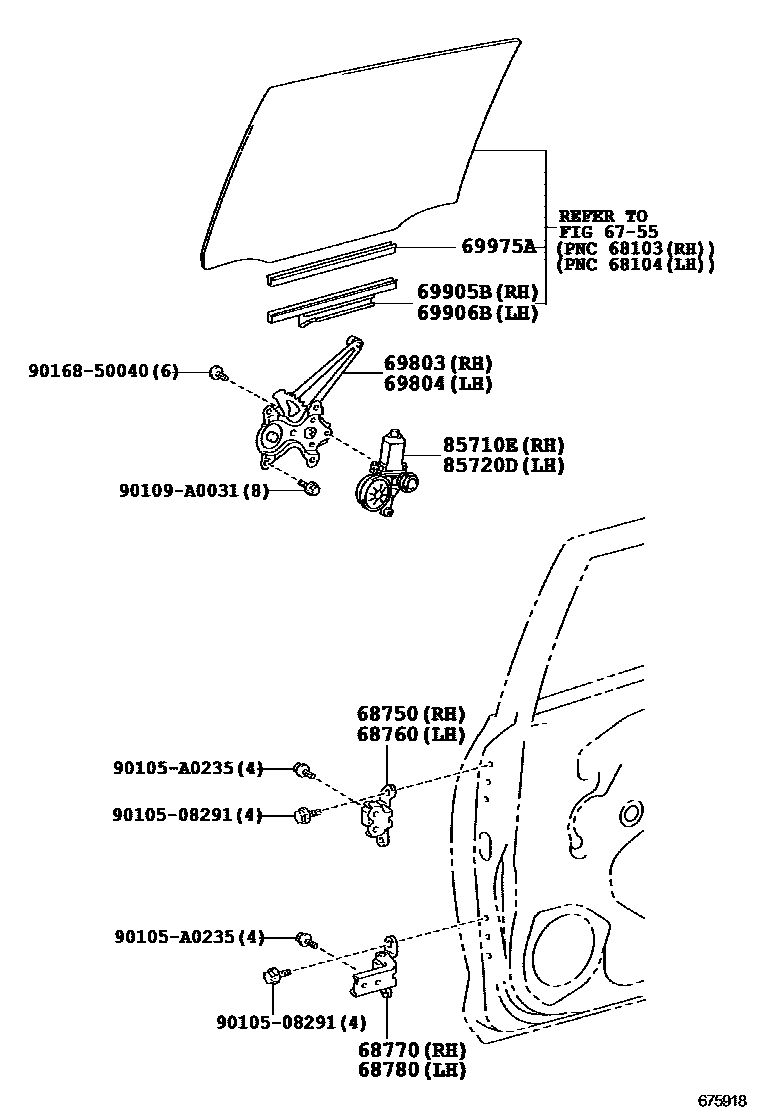

REAR DOOR WINDOW REGULATOR & HINGE

6755

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-06010iASA3#,GSA3#..NAP200811

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-06010iASA3#,GSA3#..NAP200811

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-02050iASA3#,GSA3#..NAP200811

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-02050iASA3#,GSA3#..NAP200811

sub68780-52030

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-0R010iASA3#,GSA3#..NAP200811

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-0R010iASA3#,GSA3#..NAP200811

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-0R010iASA3#,GSA3#..NAP200811-201301

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-0R010iASA3#,GSA3#..NAP200811-201301

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-0R020×2iASA3#,GSA3#..NAP200811-201301

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-AE010iASA3#,GSA3#..NAP200811

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-AE010iASA3#,GSA3#..NAP200811

9010508291

main90105-08291

90105A0235

main90105-A0235

90109A0031

main90109-A0031

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
