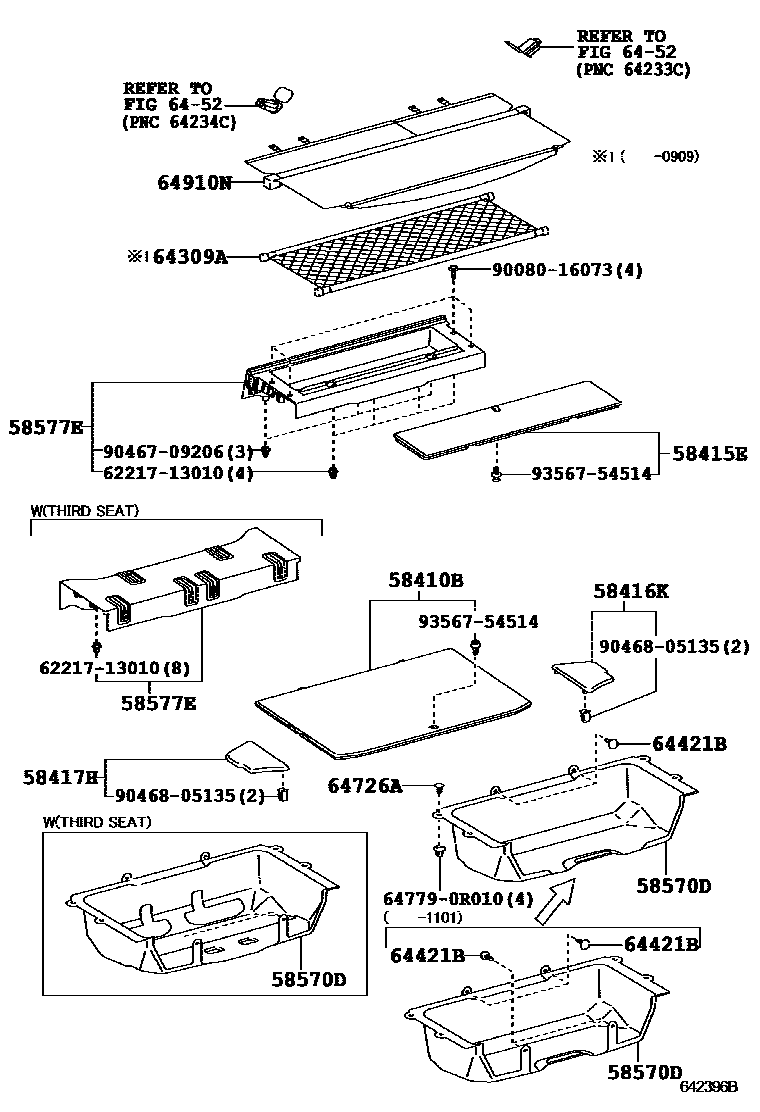

DECK BOARD & DECK TRIM COVER

58410BBOARD ASSY, DECK

main58410-0R010-B4iASA3#,GSA3#..NAP..SPO200811-201009

DK.GRAY,TRIM1#

main58410-0R010-B5iASA3#,GSA3#..NAP..(LIMD,STD)200811-201009

GRAY,TRIM1#

main58410-0R010-B6iASA3#,GSA3#..NAP..SPO201009-201301

DK.GRAY,TRIM1#

main58410-0R010-B7iASA3#,GSA3#..NAP..(LIMD,STD)201009-201301

GRAY,TRIM1#

main58410-0R010-E3iASA3#,GSA3#..NAP..(LIMD,STD)200811-201301

SAND BEIGE,TRIM4#

58415EBOARD, REAR FLOOR, NO.1

main58415-0R010-B4iASA3#,GSA3#..NAP..SPO200811-201009

DK.GRAY,TRIM1#

main58415-0R010-B5iASA3#,GSA3#..NAP..(LIMD,STD)200811-201009

GRAY,TRIM1#

main58415-0R010-B6iASA3#,GSA3#..NAP..SPO201009-201301

DK.GRAY,TRIM1#

main58415-0R010-B7iASA3#,GSA3#..NAP..(LIMD,STD)201009-201301

GRAY,TRIM1#

main58415-0R010-E3iASA3#,GSA3#..NAP..(LIMD,STD)200811-201301

SAND BEIGE,TRIM4#

58416KBOARD, REAR FLOOR, NO.2

main58416-0R010-B0iASA3#,GSA3#..NAP..(LIMD,STD)200811-201301

DK.GRAY,TRIM1#,4#

58417HBOARD, REAR FLOOR, NO.3

main58417-0R010-B0iASA3#,GSA3#..NAP..(LIMD,STD)200811-201301

DK.GRAY,TRIM1#,4#

58570DCARPET ASSY, REAR FLOOR

main58571-0R010iASA3#,GSA3#..NAP200811-201301

main58571-0R020-B1iASA3#,GSA3#..NAP..(LIMD,STD)200811-201301

THIRD SEAT-WITH,GRAY,TRIM1#

main58571-0R020-E1iASA3#,GSA3#..NAP..(LIMD,STD)200811-201301

THIRD SEAT-WITH,SAND BEIGE,TRIM4#

58577EPLATE, REAR FLOOR MAT SUPPORT SIDE, NO.1

main58577-0R010-B2iASA3#,GSA3#..NAP..SPO200811-201301

DK.GRAY,TRIM1#

main58577-0R020-B1supersedes 58577-0R010-B3iASA3#,GSA3#..NAP..(LIMD,STD)200811-201301

THIRD SEAT-WITH,GRAY,TRIM1#

main58577-0R020-E1supersedes 58577-0R010-E2iASA3#,GSA3#..NAP..(LIMD,STD)200811-201301

THIRD SEAT-WITH,SAND BEIGE,TRIM4#

64309APOCKET SUB-ASSY, PACKAGE TRAY TRIM

main64309-0R010-B0iASA3#,GSA3#..NAP..LIMD200811-200909

PACKAGE TRAY TRIM & TONEAU COVER-WITHOUT,DK.GRAY,TRIM1#,4#

sub64309-0R011

64421BCLIP(FOR LUGGAGE COMPARTMENT TRAY)

main90467-05164-C0×2iASA3#,GSA3#..NAP201101-201301

BLACK

6452

64726ACLIP, LUGGAGE TRIM, REAR

main64726-26010-B1×4iASA3#,GSA3#..NAP200811-201301

DK.GRAY

64910NCOVER ASSY, TONNEAU

6221713010COVER, RAIL ROOF SIDE, INNER CENTER

main62217-13010

647790R010TRAY, SPARE WHEEL COVER

main64779-0R010

9008016073

main90080-16073

9046709206

main90467-09206

9046805135

main90468-05135

9356754514

main93567-54514

17 parts on this diagram · 1 diagram in section
