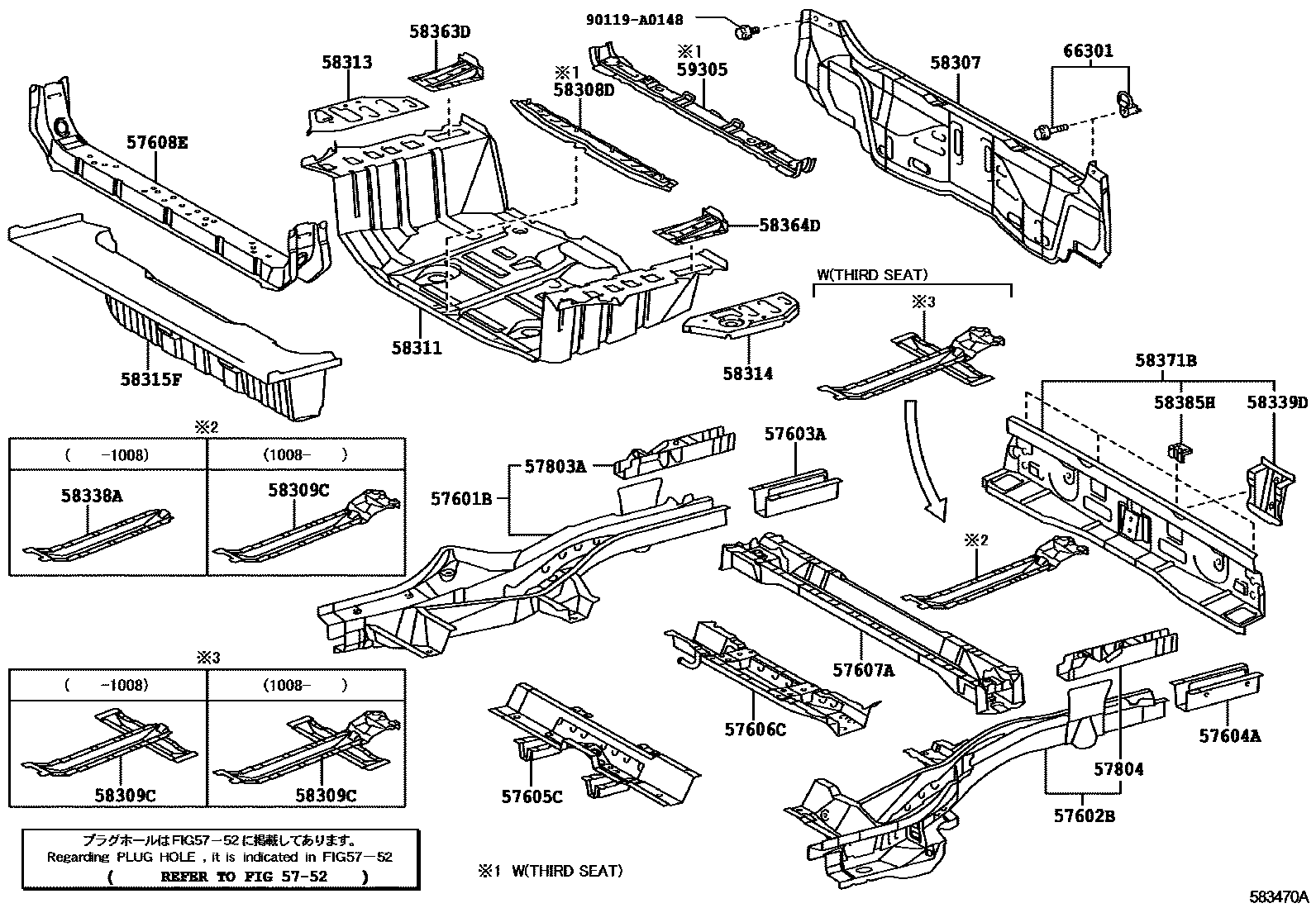

REAR FLOOR PANEL & REAR FLOOR MEMBER

5752

57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57601-0R010iASA3#,GSA3#..NAP200811-201110

sub57601-0R011

main57601-0R011iASA3#,GSA3#..NAP201111

57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57602-0R010iASA3#,GSA3#..NAP200811-201110

sub57602-0R011

main57602-0R011iASA3#,GSA3#..NAP201111

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-0R010iASA3#,GSA3#..NAP200811

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-0R010iASA3#,GSA3#..NAP200811

57605CMEMBER SUB-ASSY, REAR FLOOR CROSS

main57605-0R010iASA3#,GSA3#..NAP200811-201205

sub57605-0R011

main57605-0R011iASA3#,GSA3#..NAP201206

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-0R010iASA3#,GSA3#..NAP200811

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-0R010iASA3#,GSA3#..NAP200811-200912

sub57607-0R011

main57607-0R011iASA3#,GSA3#..NAP201001

57608EREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, RH

main57608-0R010iASA3#,GSA3#..NAP200811

57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH

main57803-0R010iASA3#,GSA3#..NAP200811

57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH

main57804-0R010iASA3#,GSA3#..NAP200811

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-0R010iASA3#,GSA3#..NAP200811-201202

sub58307-0R011

main58307-0R011iASA3#,GSA3#..NAP201203

58308DBRACKET SUB-ASSY, REAR FLOOR CROSSMEMBER

58309CGUARD SUB-ASSY, REAR VALANCE PANEL

main58309-0R020iASA3#,GSA3#..NAP201008

58311PAN, REAR FLOOR

main58311-0R010iASA3#,GSA3#..NAP200811

58313PANEL, REAR FLOOR SIDE, RH

main58313-0R010iASA3#,GSA3#..NAP200811

58314PANEL, REAR FLOOR SIDE, LH

main58314-0R010iASA3#,GSA3#..NAP200811

58315FEXTENSION, REAR FLOOR SIDE PANEL, FRONT

main58315-0R010iASA3#,GSA3#..NAP200811

58338AREINFORCEMENT, REAR FLOOR PAN, NO.2

main58338-0R010iASA3#,GSA3#..NAP200811-201008

58339DBRACKET, JACK UP

main58339-0R010iASA3#,GSA3#..NAP200811-201007

sub58339-0R011

main58339-0R011iASA3#,GSA3#..NAP201008

58363DREINFORCEMENT, REAR FLOOR PANEL, NO.2 RH

main58363-0R010iASA3#,GSA3#..NAP200811-201007

sub58363-0R011

main58363-0R011iASA3#,GSA3#..NAP201008

58364DREINFORCEMENT, REAR FLOOR PANEL, NO.2 LH

main58364-0R010iASA3#,GSA3#..NAP200811-201007

sub58364-0R011

main58364-0R011iASA3#,GSA3#..NAP201008

58371BPANEL, BODY LOWER BACK, OUTER

main58302-0R010iASA3#,GSA3#..NAP200811-201007

sub58302-0R011

main58302-0R011iASA3#,GSA3#..NAP201008

58385HBRACKET, REAR BUMPER COVER, NO.1

main58385-0R010iASA3#,GSA3#..NAP200811

59305MEMBER SUB-ASSY, 3RD SEAT FLOOR CROSS

main59305-0R010

66301HOOK SUB-ASSY, ROPE

main66301-42010iASA3#,GSA3#..NAP¥1,940200811

90119A0148

main90119-A0148

27 parts on this diagram · 1 diagram in section
