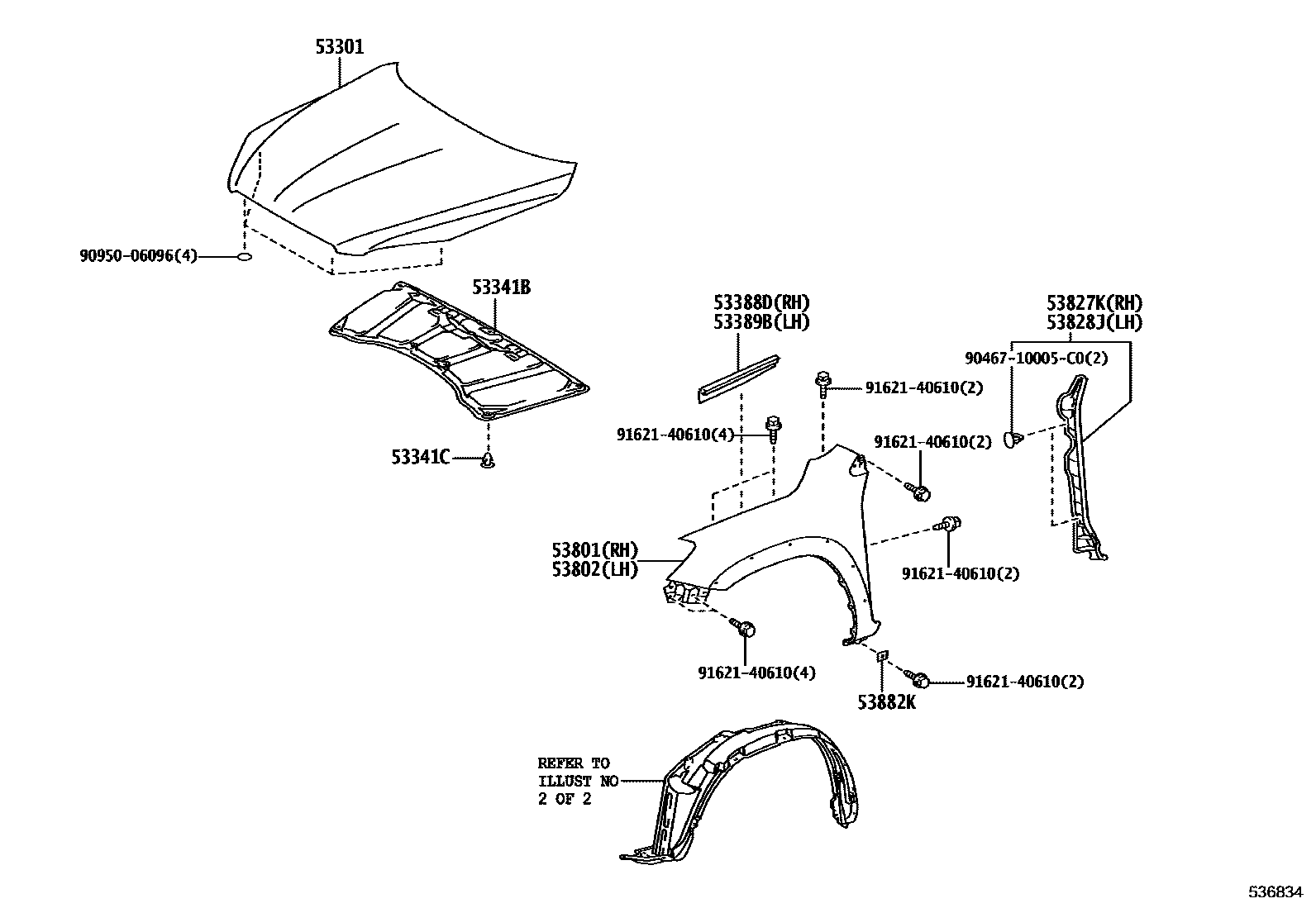

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-0R020iASA3#,GSA3#..NAP200811-201301

53341BINSULATOR, HOOD

main53341-0R010iASA3#,GSA3#..NAP200811

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iASA3#,GSA3#..NAP200811-201110

main90467-09050iASA3#,GSA3#..NAP201110

(J)

main90467-A0003iASA3#,GSA3#..NAP201110

(L)

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-0R010iASA3#,GSA3#..NAP200811

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-0R010iASA3#,GSA3#..NAP200811

53801FENDER SUB-ASSY, FRONT RH

main53801-0R050iASA3#,GSA3#..NAP..STD200811

main53801-0R060iASA3#,GSA3#..NAP..(LIMD,SPO)200811

53802FENDER SUB-ASSY, FRONT LH

main53802-0R020iASA3#,GSA3#..NAP..STD200811

main53802-0R040iASA3#,GSA3#..NAP..(LIMD,SPO)200811

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0R010iASA3#,GSA3#..NAP200811

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0R010iASA3#,GSA3#..NAP200811

53882KSEAL, FRONT FENDER

main53882-0R010iASA3#,GSA3#..NAP200811-200912

sub53882-16030

main53882-16030iASA3#,GSA3#..NAP201001

9046710005C0

main90467-10005C0

9095006096

main90950-06096

9162140610

main91621-40610

13 parts on this diagram · 2 diagrams in section
