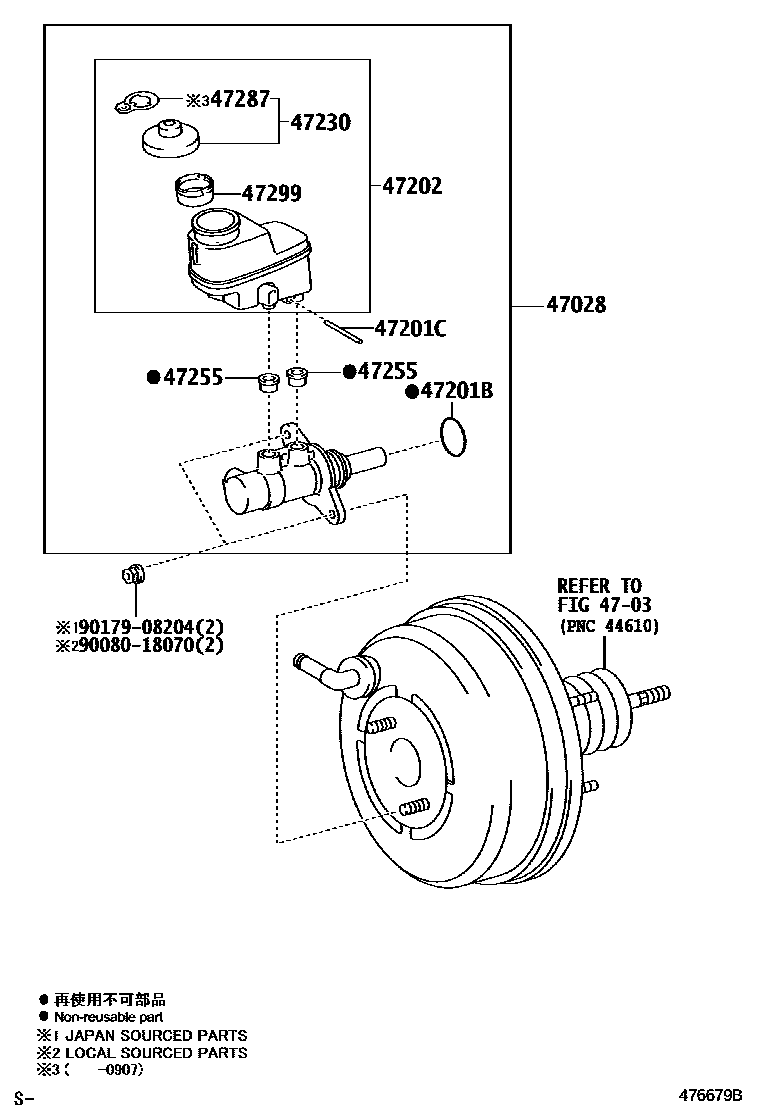

BRAKE MASTER CYLINDER

47028CYLINDER SUB-ASSY, BRAKE MASTER W/PLATE

main47201-0R070iASA3#..NAP200907-201301

main47201-0R080iGSA3#..NAP200907-201205

THIRD SEAT-WITH

sub47201-0R082

main47201-0R082iASA3#..NAP..(LIMD,STD)201206-201301

THIRD SEAT-WITH

main47201-42340iASA3#..NAP200811-200906

sub47028-42030

main47201-42380iGSA3#..NAP200811-200906

THIRD SEAT-WITH

sub47201-42381

4703

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iASA3#,GSA3#..NAP200811-201301

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iASA3#,GSA3#..NAP200811-201301

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-0R050iASA3#,GSA3#..NAP200907-201301

main47220-42100iASA3#,GSA3#..NAP200811-200906

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-01030iASA3#,GSA3#..NAP200907-201301

sub47230-01031

main47230-20140iASA3#,GSA3#..NAP200811-200907

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iASA3#,GSA3#..NAP200811-201301

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iASA3#,GSA3#..NAP200811-200907

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iASA3#,GSA3#..NAP200811-201301

9008018070

main90080-18070

9017908204

main90179-08204

11 parts on this diagram · 1 diagram in section
