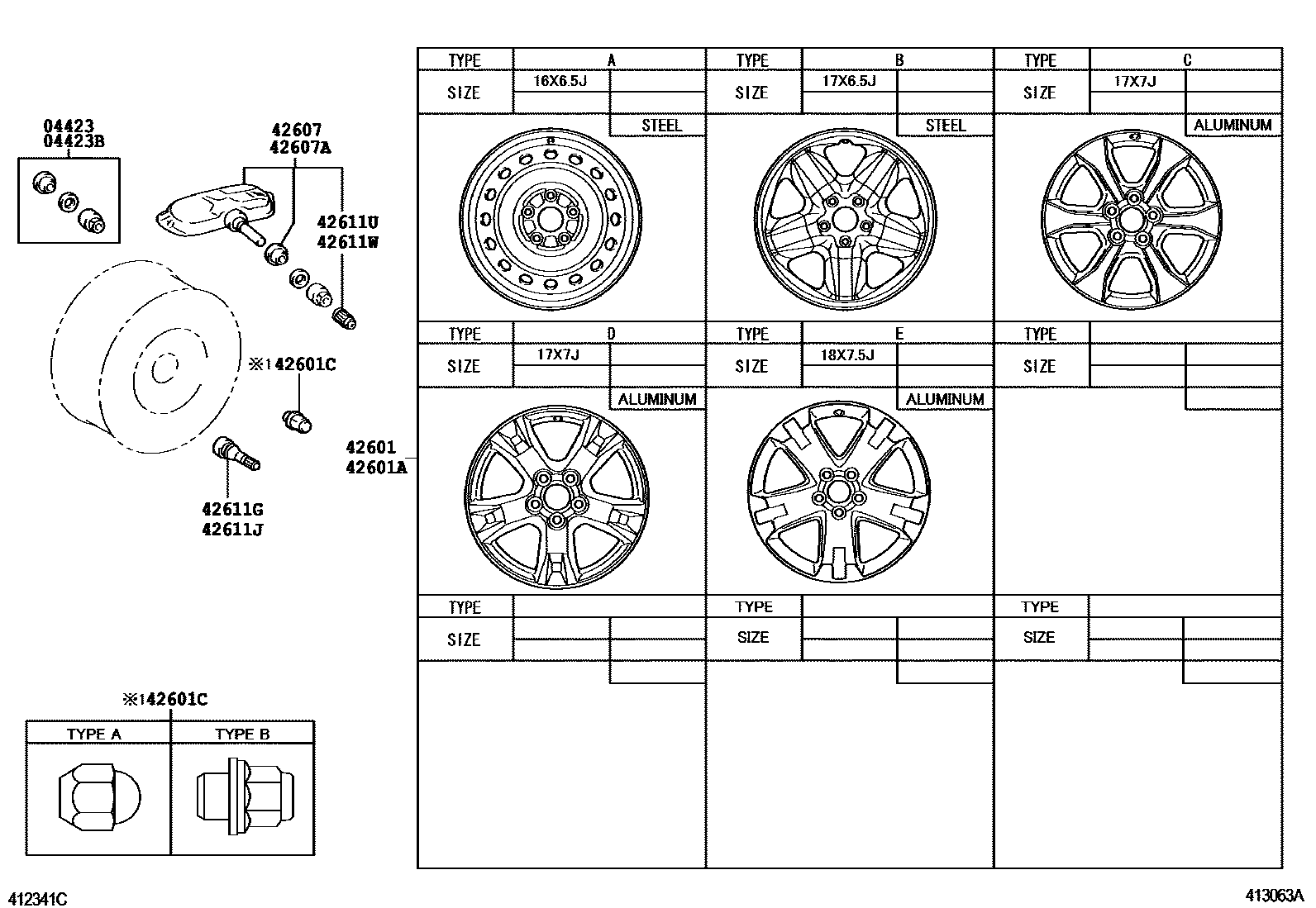

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
42601WHEEL, DISC
16X6.5J,#,TYPE A:REFER ILLUST.
17X6.5J,#,TYPE B:REFER ILLUST.
17X6.5J,#,MEXICO SPEC&TIRE & DISC WHEEL-225/65R17H STEEL 6.5J,TYPE B:REFER ILLUST.
17X6.5J,#,TIRE & DISC WHEEL-225/65R17H STEEL 6.5J,TYPE B:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
16X6.5J,#,TYPE A:REFER ILLUST.
17X6.5J,#,TYPE B:REFER ILLUST.
17X6.5J,#,MEXICO SPEC&TIRE & DISC WHEEL-225/65R17H STEEL 6.5J,TYPE B:REFER ILLUST.
17X6.5J,#,MEXICO SPEC&TIRE & DISC WHEEL-225/65R17H ALUMINUM 7.0J,TYPE B:REFER ILLUST.
17X6.5J,#,TIRE & DISC WHEEL-225/65R17H STEEL 6.5J,TYPE B:REFER ILLUST.
17X6.5J,#,TIRE & DISC WHEEL-225/65R17H ALUMINUM 7.0J,TYPE B:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TIRE & DISC WHEEL-225/65R17H ALUMINUM 7.0J,TYPE B:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
sub42607-06012
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
sub42607-06012
42611GVALVE (FOR TUBELESS TIRE)
MEXICO SPEC
MEXICO SPEC&TIRE & DISC WHEEL-225/65R17H STEEL 6.5J
MEXICO SPEC&TIRE & DISC WHEEL-225/65R17H ALUMINUM 7.0J
42611JVALVE (FOR TUBELESS TIRE SPARE)
MEXICO SPEC
MEXICO SPEC&TIRE & DISC WHEEL-225/65R17H STEEL 6.5J
MEXICO SPEC&TIRE & DISC WHEEL-225/65R17H ALUMINUM 7.0J
42611UCAP, TIRE VALVE
42611WCAP, TIRE VALVE (FOR SPARE)
11 parts on this diagram · 2 diagrams in section
