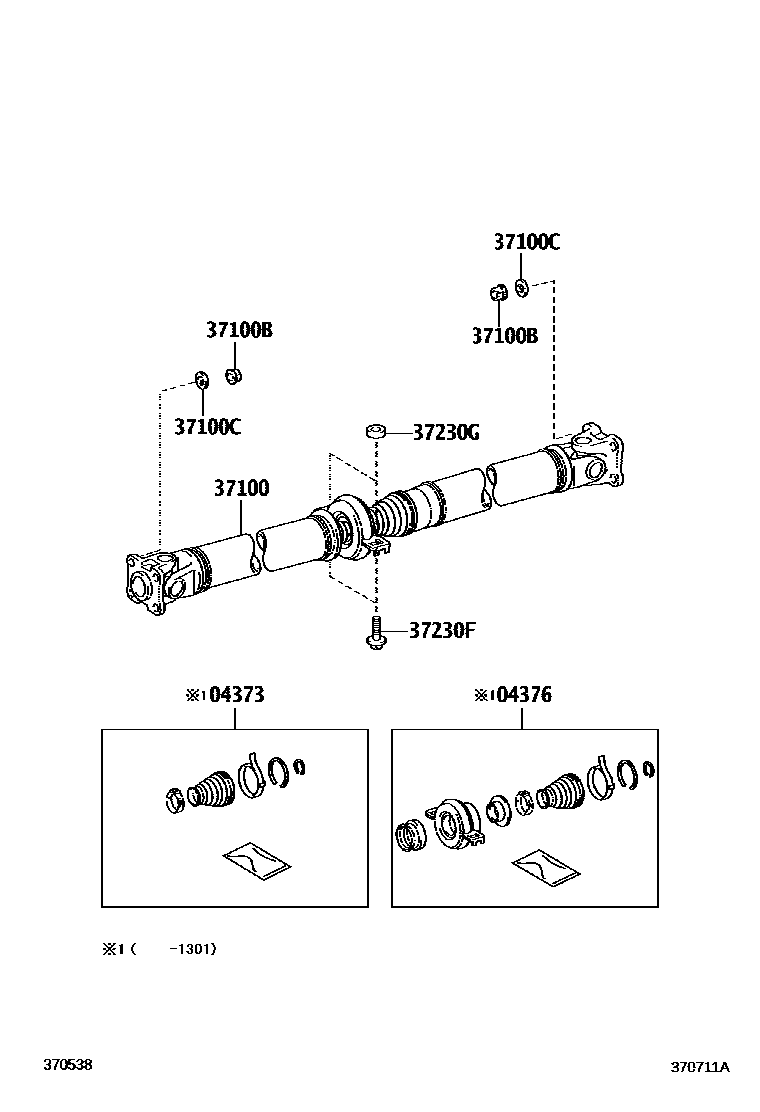

PROPELLER SHAFT & UNIVERSAL JOINT

04373BOOT KIT, UNIVERSAL

main04373-52010iASA33,GSA33..NAP200811-201301

04376BEARING KIT, CENTER SUPPORT

main04376-52010iASA33,GSA33..NAP200811-201301

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-42090iASA33,GSA33..NAP200811

37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90179-08197iASA33,GSA33..NAP200811

37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90201-08097iASA33,GSA33..NAP200811

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-10444iASA33,GSA33..NAP200811

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10081iASA33,GSA33..NAP200811

T=4.5

main90201-10083iASA33,GSA33..NAP200811

T=6.5

main90201-10123iASA33,GSA33..NAP200811

T=2.0

7 parts on this diagram · 1 diagram in section
