TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

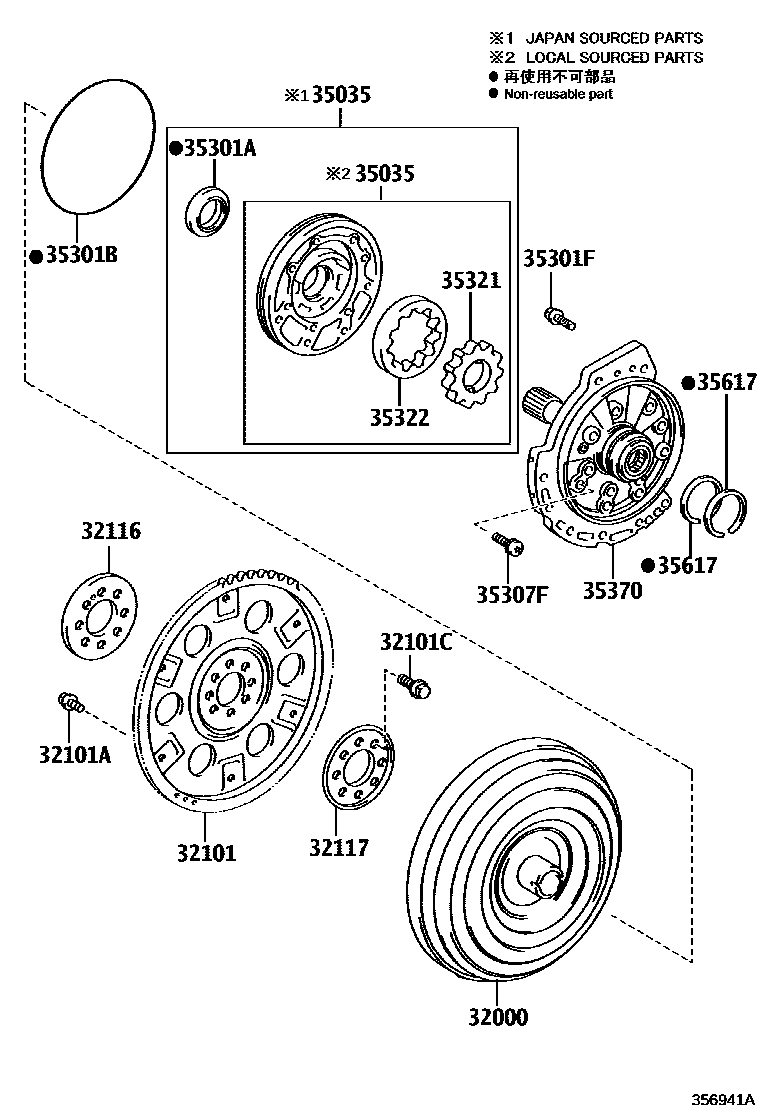

Parts diagram
32000CONVERTER ASSY, TORQUE
main32000-07010i200811-201301
(L)
main32000-42060i200811-201301
(J)
main32000-42070i200811-201301
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-06030i201011
(L)
main32101-28040i200811-201011
main32101-28040i201011
(J)
main32101-48010i200811
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
main90109-09001i200811
*9-1.25PX12.4-7.3,BLACK
main90119-09025i200811
*9-1.25PX12.4-8.4,SILVER WHITE
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90105-10048i200811-201003
*10-1.25PX18-13,(J)
main90105-10048i201003
*10-1.25PX18-13
main90105-12384i201003
*12-1.25PX21-15
main90105-12384i200811-201003
*12-1.25PX21-15,(J)
main90105-A0022i200811-201003
*10-1.25PX18-13,(L)
sub90105-10048
main90105-A0059i200811-201003
*12-1.25PX21-15,(L)
sub90105-12384
32116SPACER, DRIVE PLATE, FRONT
main32116-20050i200811
main32116-32020i200811
32117SPACER, DRIVE PLATE, REAR
main32117-20060i200811
main32117-32020i200811
35035BODY SUB-ASSY, FR OIL PUMP & GEAR
main35035-08010i200811
(L)
main35035-28010i200811
sub35035-12070
main35035-33020i200811
(J)
sub35035-12080
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90311-38083i200811
35301BRING, O (FOR FRONT OIL PUMP BODY)
main90301-99099i200811
35301FBOLT (FOR FRONT OIL PUMP SETTING)
main90105-08198i200811
*8-1.25PX28-28
35307FBOLT (FOR STATOR SHAFT)
main90080-14044i200811
(L)
main90148-60027i200811
(J)
35321GEAR, FRONT OIL PUMP DRIVE
main35321-08010i200811
T=11.715,MARK A,(L)
main35321-08020i200811
T=11.715,MARK B,(L)
main35321-08030i200811
T=11.715,MARK C,(L)
main35321-08040i200811
T=11.715,MARK D,(L)
main35321-08050i200811
T=11.715,MARK E,(L)
main35321-28060i200811
T=10.715,MARK 1
main35321-28070i200811
T=10.715,MARK 2
main35321-28080i200811
T=10.715,MARK 3
main35321-28090i200811
T=10.715,MARK 4
main35321-28100i200811
T=10.715,MARK 5
main35321-33060i200811
T=11.715,MARK A,(J)
main35321-33070i200811
T=11.715,MARK B,(J)
main35321-33080i200811
T=11.715,MARK C,(J)
main35321-33090i200811
T=11.715,MARK D,(J)
main35321-33100i200811
T=11.715,MARK E,(J)
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-08010i200811
T=11.715,MARK A,(L)
main35322-08020i200811
T=11.715,MARK B,(L)
main35322-08030i200811
T=11.715,MARK C,(L)
main35322-08040i200811
T=11.715,MARK D,(L)
main35322-08050i200811
T=11.715,MARK E,(L)
main35322-28060i200811
T=10.715,MARK 1
main35322-28070i200811
T=10.715,MARK 2
main35322-28080i200811
T=10.715,MARK 3
main35322-28090i200811
T=10.715,MARK 4
main35322-28100i200811
T=10.715,MARK 5
main35322-33060i200811
T=11.715,MARK A,(J)
main35322-33070i200811
T=11.715,MARK B,(J)
main35322-33080i200811
T=11.715,MARK C,(J)
main35322-33090i200811
T=11.715,MARK D,(J)
main35322-33100i200811
T=11.715,MARK E,(J)
35370SHAFT ASSY, STATOR
main35370-06010i200811
(L)
main35370-28010i200811
(J)
sub35370-12110
35617RING, CLUTCH DRUM OIL SEAL
main35613-21010i200811

15 parts on this diagram · 2 diagrams in section
