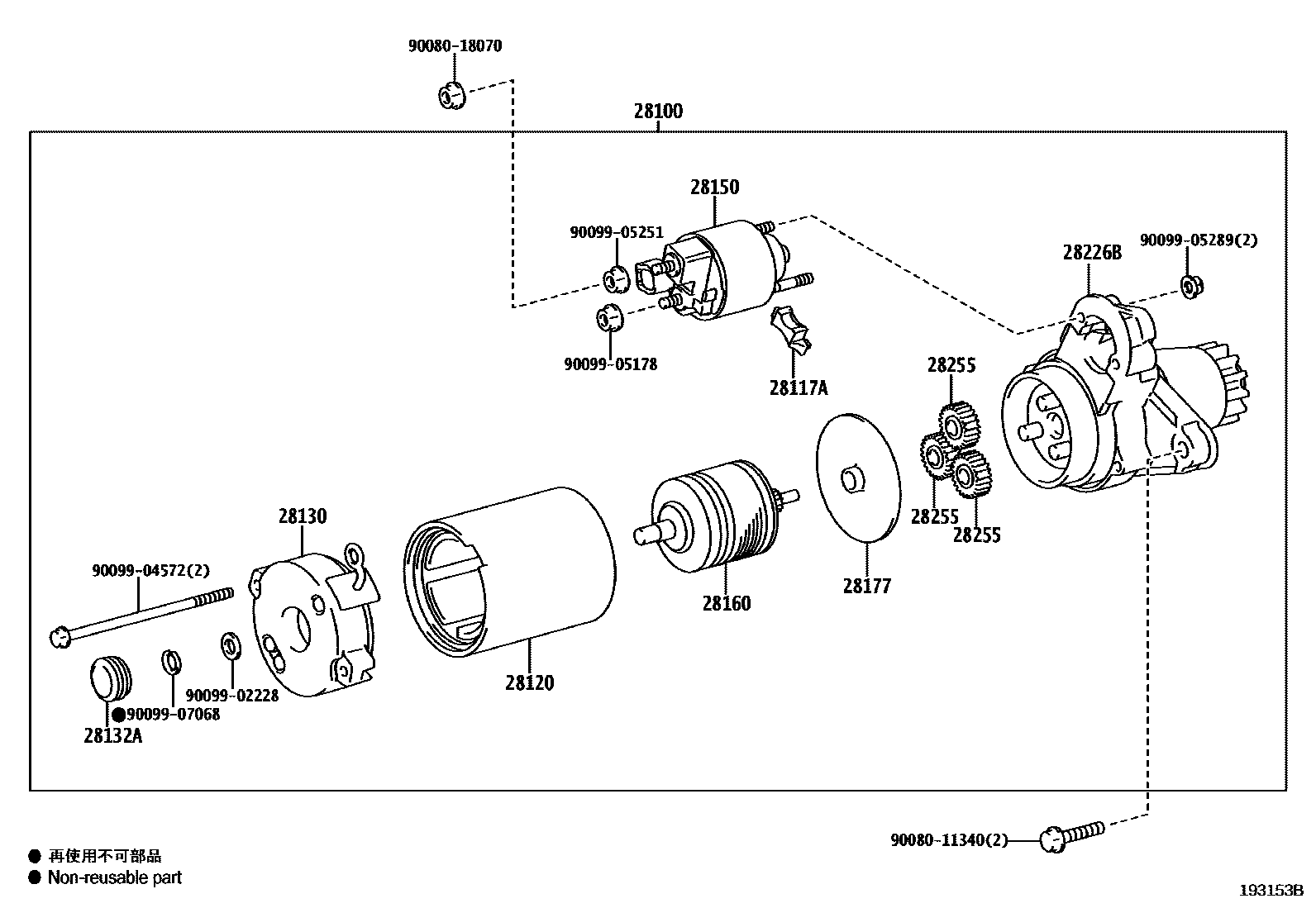

STARTER

0001 112V 1.7KW 0002 112V 1.7KW

28100STARTER ASSY

main28100-0A011i2ARFE,2GRFE..ASA3#,GSA3#..NAP201107

12V 1.7KW

main28100-0V010i2ARFE,2GRFE..ASA3#,GSA3#..NAP200811-200903

12V 1.7KW

main28100-0V011i2ARFE,2GRFE..ASA3#,GSA3#..NAP200904-200911

12V 1.7KW

main28100-0V012i2ARFE,2GRFE..ASA3#,GSA3#..NAP200912-201106

12V 1.7KW

28117ASEAL, RUBBER

main28117-0P030i2ARFE,2GRFE..ASA3#,GSA3#..NAP200901-201107

28120YOKE ASSY, STARTER

main28120-0P030i2ARFE,2GRFE..ASA3#,GSA3#..NAP200901-201107

main28120-28060i2ARFE,2GRFE..ASA3#,GSA3#..NAP201107

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-20020i2ARFE,2GRFE..ASA3#,GSA3#..NAP200901

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i2ARFE,2GRFE..ASA3#,GSA3#..NAP200901

28150SWITCH ASSY, MAGNET STARTER

main28150-28060i2ARFE,2GRFE..ASA3#,GSA3#..NAP200912-201107

main28150-40090i2ARFE,2GRFE..ASA3#,GSA3#..NAP200901-200912

28160ARMATURE ASSY, STARTER

main28160-28040i2ARFE,2GRFE..ASA3#,GSA3#..NAP200901

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i2ARFE,2GRFE..ASA3#,GSA3#..NAP200901

28226BSTARTER KIT, REPAIR SERVICE

main28226-0P030i2ARFE,2GRFE..ASA3#,GSA3#..NAP200901-201107

main28226-28051i2ARFE,2GRFE..ASA3#,GSA3#..NAP201107

28255GEAR, PLANET

main28255-0A010×3i2ARFE,2GRFE..ASA3#,GSA3#..NAP201012

main28255-20020×3i2ARFE,2GRFE..ASA3#,GSA3#..NAP200901-201012

9008011340

main90080-11340

9008018070

main90080-18070

9009902228

main90099-02228

9009904572

main90099-04572

9009905178

main90099-05178

9009905251

main90099-05251

9009905289

main90099-05289

9009907068

main90099-07068

18 parts on this diagram · 2 diagrams in section
