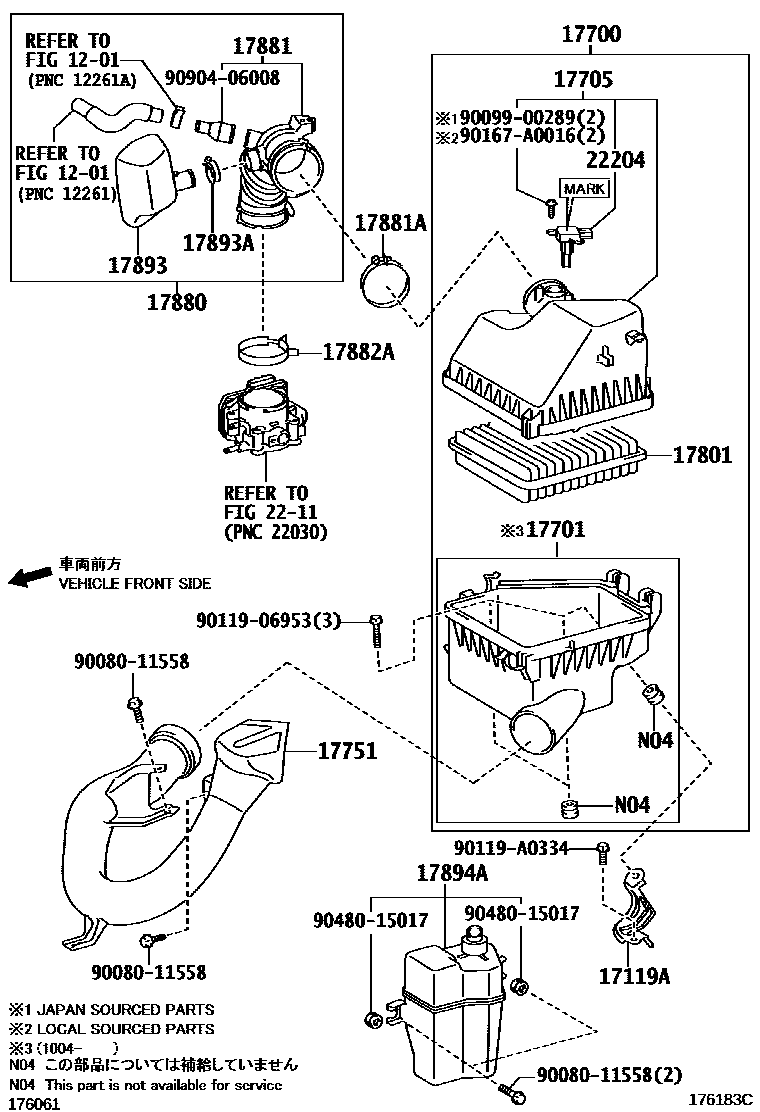

AIR CLEANER
1201
17119ABRACKET, AIR CLEANER
17700CLEANER ASSY, AIR
17701CASE SUB-ASSY, AIR CLEANER
17705CAP SUB-ASSY, AIR CLEANER
17751INLET, AIR CLEANER, NO.1
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
(J)
(L)
17880HOSE ASSY, AIR CLEANER
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
17893RESONATOR, INTAKE AIR
17893ACLAMP, HOSE
17894ARESONATOR, INTAKE AIR, NO.2
2211
22204METER SUB-ASSY, INTAKE AIR FLOW
MARK 22204-0P010
MARK 22204-31020
9008011558
main90080-11558
9009900289
main90099-00289
9011906953
main90119-06953
90119A0334
main90119-A0334
90167A0016
main90167-A0016
9048015017
main90480-15017
9090406008
main90904-06008
23 parts on this diagram · 2 diagrams in section
