CRANKSHAFT & PISTON

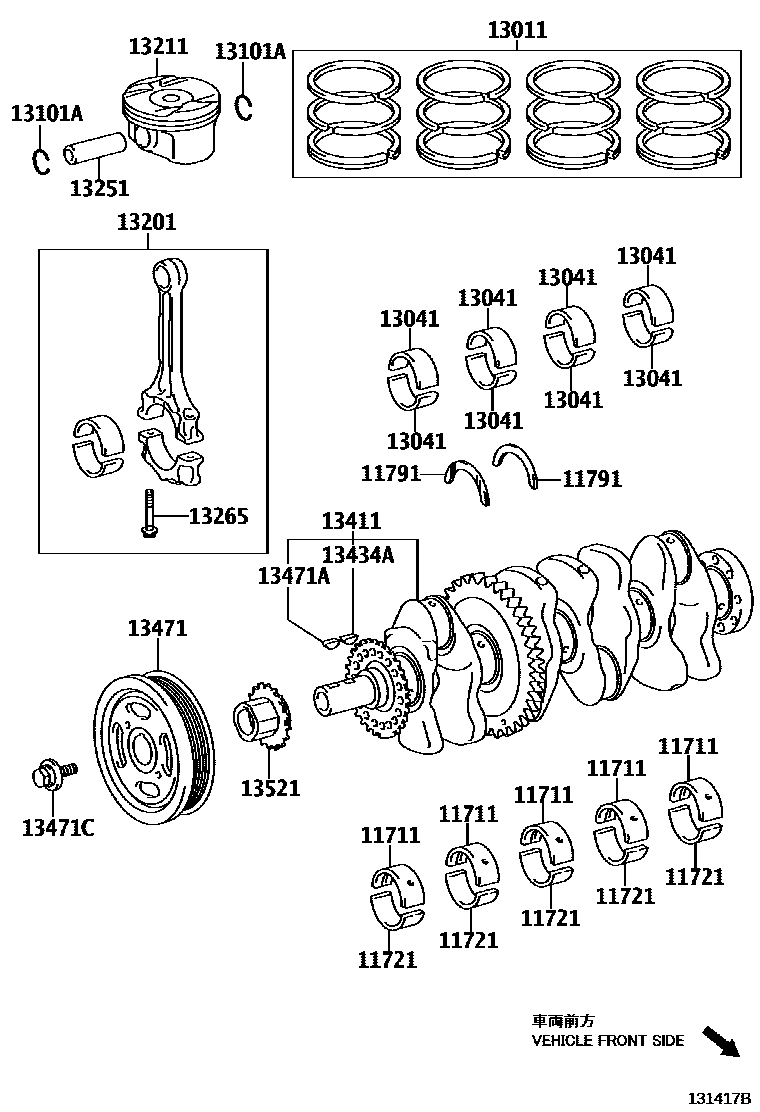

Parts diagram
11711BEARING, CRANKSHAFT
main11071-0P030-01i200811-200906
MARK1,NO.2,(L):REFER R/M
sub11071-0P050
main11071-0P030-02i200811-200906
MARK2,NO.2,(L):REFER R/M
sub11071-0P050
main11071-0P030-03i200811-200906
MARK3,NO.2,(L):REFER R/M
sub11071-0P050
main11071-0P030-04i200811-200906
MARK4,NO.2,(L):REFER R/M
sub11071-0P050
main11071-0P030-05i200811-200906
MARK5,NO.2,(L):REFER R/M
sub11071-0P050
main11071-0P050-01i200912-201204
MARK1,NO.2,(L):REFER R/M
sub11071-0P051
main11071-0P050-02i200912-201204
MARK2,NO.2,(L):REFER R/M
sub11071-0P051
main11071-0P050-03i200912-201204
MARK3,NO.2,(L):REFER R/M
sub11071-0P051
main11071-0P050-04i200912-201204
MARK4,NO.2,(L):REFER R/M
sub11071-0P051
main11071-0P050-05i200912-201204
MARK5,NO.2,(L):REFER R/M
sub11071-0P051
main11071-0P051-01i201204
MARK1,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P051-02i201204
MARK2,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P051-03i201204
MARK3,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P051-04i201204
MARK4,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P051-05i201204
MARK5,NO.2,(L):REFER R/M
sub11071-0P060
main11071-31031-01i200811
MARK1,NO.2,(J):REFER R/M
sub11071-31060
main11071-31031-02i200811
MARK2,NO.2,(J):REFER R/M
sub11071-31060
main11071-31031-03i200811
MARK3,NO.2,(J):REFER R/M
sub11071-31060
main11071-31031-04i200811
MARK4,NO.2,(J):REFER R/M
sub11071-31060
main11071-31031-05i200811
MARK5,NO.2,(J):REFER R/M
sub11071-31060
main11701-0P030-01i200811-200906
MARK1,NO.1,(L):REFER R/M
sub11701-0P050
main11701-0P030-02i200811-200906
MARK2,NO.1,(L):REFER R/M
sub11701-0P050
main11701-0P030-03i200811-200906
MARK3,NO.1,(L):REFER R/M
sub11701-0P050
main11701-0P030-04i200811-200906
MARK4,NO.1,(L):REFER R/M
sub11701-0P050
main11701-0P030-05i200811-200906
MARK5,NO.1,(L):REFER R/M
sub11701-0P050
main11701-0P050-01i200912-201204
MARK1,NO.1,(L):REFER R/M
sub11701-0P051
main11701-0P050-02i200912-201204
MARK2,NO.1,(L):REFER R/M
sub11701-0P051
main11701-0P050-03i200912-201204
MARK3,NO.1,(L):REFER R/M
sub11701-0P051
main11701-0P050-04i200912-201204
MARK4,NO.1,(L):REFER R/M
sub11701-0P051
main11701-0P050-05i200912-201204
MARK5,NO.1,(L):REFER R/M
sub11701-0P051
main11701-0P051-01i201204
MARK1,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P051-02i201204
MARK2,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P051-03i201204
MARK3,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P051-04i201204
MARK4,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P051-05i201204
MARK5,NO.1,(L):REFER R/M
sub11701-0P060
main11701-31061-01i200811-200902
MARK1,NO.1,(J):REFER R/M
sub11701-31100
main11701-31061-02i200811-200902
MARK2,NO.1,(J):REFER R/M
sub11701-31100
main11701-31061-03i200811-200902
MARK3,NO.1,(J):REFER R/M
sub11701-31100
main11701-31061-04i200811-200902
MARK4,NO.1,(J):REFER R/M
sub11701-31100
main11701-31061-05i200811-200902
MARK5,NO.1,(J):REFER R/M
sub11701-31100
main11701-31090-01i200902
MARK 1,NO.1,(J):REFER R/M
sub11701-31100
main11701-31090-02i200902
MARK 2,NO.1,(J):REFER R/M
sub11701-31100
main11701-31090-03i200902
MARK 3,NO.1,(J):REFER R/M
sub11701-31100
main11701-31090-04i200902
MARK 4,NO.1,(J):REFER R/M
sub11701-31100
main11701-31090-05i200902
MARK 5,NO.1,(J):REFER R/M
sub11701-31100
main11711-0V010-01i201108-201301
MARK 1,*212:REFER R/M
main11711-0V010-02i201108-201301
MARK 2,*212:REFER R/M
main11711-0V010-03i201108-201301
MARK 3,*212:REFER R/M
main11711-0V010-04i201108-201301
MARK 4,*212:REFER R/M
main11711-36020-01i200811-201202
MARK 1,*107:REFER R/M
main11711-36020-02i200811-201202
MARK 2,*107:REFER R/M
main11711-36020-03i200811-201202
MARK 3,*107:REFER R/M
main11711-36020-04i200811-201202
MARK 4,*107:REFER R/M
main11711-36050-01i201202-201301
MARK 1,*107:REFER R/M
main11711-36050-02i201202-201301
MARK 2,*107:REFER R/M
main11711-36050-03i201202-201301
MARK 3,*107:REFER R/M
main11711-36050-04i201202-201301
MARK 4,*107:REFER R/M
11721BEARING, CRANKSHAFT, NO.2
main11721-0V010-01i201108-201301
MARK 1,*212:REFER R/M
main11721-0V010-02i201108-201301
MARK 2,*212:REFER R/M
main11721-0V010-03i201108-201301
MARK 3,*212:REFER R/M
main11721-0V010-04i201108-201301
MARK 4,*212:REFER R/M
main11721-36020-01i200811-201202
MARK 1,*107:REFER R/M
main11721-36020-02i200811-201202
MARK 2,*107:REFER R/M
main11721-36020-03i200811-201202
MARK 3,*107:REFER R/M
main11721-36020-04i200811-201202
MARK 4,*107:REFER R/M
main11721-36050-01i201202-201301
MARK 1,*107:REFER R/M
main11721-36050-02i201202-201301
MARK 2,*107:REFER R/M
main11721-36050-03i201202-201301
MARK 3,*107:REFER R/M
main11721-36050-04i201202-201301
MARK 4,*107:REFER R/M
11791WASHER, CRANKSHAFT THRUST, UPPER
main11791-0V010i201108
STD,*212
main11791-36010i200811
STD,*107
13011RING SET, PISTON
main13011-0P040i200912
STD,(L)
main13011-0V010i201108-201301
STD,*212
main13011-31130i200811-200812
STD
main13011-31150i200812
STD,(J)
sub13011-31151
main13011-36030i200811-201212
STD,*107
sub13011-36070
main13011-36070i201212-201301
STD,*107
sub13011-36071
13041BEARING, CONNECTING ROD
main13041-0P040-01i200811-200906
MARK1,(L):REFER R/M
sub13041-0P080
main13041-0P040-02i200811-200906
MARK2,(L):REFER R/M
sub13041-0P080
main13041-0P040-03i200811-200906
MARK3,(L):REFER R/M
sub13041-0P080
main13041-0P040-04i200811-200906
MARK4,(L):REFER R/M
sub13041-0P080
main13041-0P080-01i200912-201104
MARK1,(L):REFER R/M
sub13041-0P081
main13041-0P080-02i200912-201104
MARK2,(L):REFER R/M
sub13041-0P081
main13041-0P080-03i200912-201104
MARK3,(L):REFER R/M
sub13041-0P081
main13041-0P080-04i200912-201104
MARK4,(L):REFER R/M
sub13041-0P081
main13041-0P081-01i201104
MARK1,(L):REFER R/M
sub13041-0P090
main13041-0P081-02i201104
MARK2,(L):REFER R/M
sub13041-0P090
main13041-0P081-03i201104
MARK3,(L):REFER R/M
sub13041-0P090
main13041-0P081-04i201104
MARK4,(L):REFER R/M
sub13041-0P090
main13041-31070-01i200811
MARK1,(J):REFER R/M
sub13041-31100
main13041-31070-01i201104
MARK1,(J),REFER R/M
sub13041-31100
main13041-31070-02i200811
MARK2,(J):REFER R/M
sub13041-31100
main13041-31070-02i201104
MARK2,(J),REFER R/M
sub13041-31100
main13041-31070-03i201104
MARK3,(J),REFER R/M
sub13041-31100
main13041-31070-03i200811
MARK3,(J):REFER R/M
sub13041-31100
main13041-31070-04i200811
MARK4,(J):REFER R/M
sub13041-31100
main13041-31070-04i201104
MARK4,(J),REFER R/M
sub13041-31100
main13281-0V010-01i201108
MARK 1,*212:REFER R/M
sub13281-0V011
main13281-0V010-02i201108
MARK 2,*212:REFER R/M
sub13281-0V011
main13281-0V010-03i201108
MARK 3,*212:REFER R/M
sub13281-0V011
main13281-36020-01i200811
MARK 1,*107:REFER R/M
sub13281-36021
main13281-36020-02i200811
MARK 2,*107:REFER R/M
sub13281-36021
main13281-36020-03i200811
MARK 3,*107:REFER R/M
sub13281-36021
13101PISTON SUB-ASSY, W/PIN
main13101-0P053i200912
STD,(L)
sub13101-31092
main13101-31091i200811-200906
STD
sub13101-31092
main13101-31092-A0i200906
STD,MARK A,(J),REFER R/M
sub13101-31092
main13101-31092-B0i200906
STD,MARK B,(J),REFER R/M
sub13101-31092
main13101-31092-C0i200906
STD,MARK C,(J),REFER R/M
sub13101-31092
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90520-22025i200906
(J)
main90520-22025i200811-200906
main90520-22025i200811-201301
*107
main90520-A0004i200912
(L)
main90520-A0004i201108-201301
*212
13201ROD SUB-ASSY, CONNECTING
main13201-09830i200912
(L)
sub13201-09831
main13201-09A45-A0i201108-201301
MARK A,*212:REFER R/M
sub13201-09A46
main13201-09A45-B0i201108-201301
MARK B,*212:REFER R/M
sub13201-09A46
main13201-09A45-C0i201108-201301
MARK C,*212:REFER R/M
sub13201-09A46
main13201-39135i200811-201005
(J)
sub13201-39137
main13201-39225-A0i200811-201301
MARK A,*107:REFER R/M
sub13201-39226
main13201-39225-B0i200811-201301
MARK B,*107:REFER R/M
sub13201-39226
main13201-39225-C0i200811-201301
MARK C,*107:REFER R/M
sub13201-39226
13211PISTON
main13211-0V012-A0i201108-201301
MARK A,*212:REFER R/M
main13211-0V012-B0i201108-201301
MARK B,*212:REFER R/M
main13211-0V012-C0i201108-201301
MARK C,*212:REFER R/M
main13211-36030-A0i200811-200812
MARK A,*107:REFER R/M
sub13211-36031
main13211-36030-B0i200811-200812
MARK B,*107:REFER R/M
sub13211-36031
main13211-36030-C0i200811-200812
MARK C,*107:REFER R/M
sub13211-36031
main13211-36031-A0i200812-201011
MARK A,*107:REFER R/M
sub13211-36032
main13211-36031-B0i200812-201011
MARK B,*107:REFER R/M
sub13211-36032
main13211-36031-C0i200812-201011
MARK C,*107:REFER R/M
sub13211-36032
main13211-36032-A0i201011-201301
MARK A,*107:REFER R/M
main13211-36032-B0i201011-201301
MARK B,*107:REFER R/M
main13211-36032-C0i201011-201301
MARK C,*107:REFER R/M
13251PIN, PISTON
main13251-0H030-A0i201108
MARK A,*212:REFER R/M,(L)
sub13251-28010
main13251-0H030-B0i201108
MARK B,*212:REFER R/M,(L)
sub13251-28010
main13251-0H030-C0i201108
MARK C,*212:REFER R/M,(L)
sub13251-28010
main13251-28020-A0i200811
MARK A,*107:REFER R/M
main13251-28020-A0i201108
MARK A,*212:REFER R/M,(J)
main13251-28020-B0i201108
MARK B,*212:REFER R/M,(J)
main13251-28020-B0i200811
MARK B,*107:REFER R/M
main13251-28020-C0i201108
MARK C,*212:REFER R/M,(J)
main13251-28020-C0i200811
MARK C,*107:REFER R/M
13265BOLT, CONNECTING ROD
main13265-28010i200811-200912
sub13265-28020
main13265-31020i200811-201301
*107
main13265-31020i201108-201301
*212
13411CRANKSHAFT
main13401-0P030i200912
(L)
sub13401-0P031
main13401-0V010i201108-201301
*212
sub13401-36011
main13401-31040i200811
(J)
sub13401-31041
main13401-36010i200811-201202
*107
sub13401-36011
main13401-36011i201202-201301
*107
13434AKEY(FOR OIL PUMP DRIVE SPLINE)
main95161-30516i200811-201301
*107
main95161-30516i201108-201301
*212
13471PULLEY, CRANKSHAFT
main13470-0V020i201108
(L),*212
main13470-31030i200811
main13470-36010i200811
*107
main13470-36010i201108
(J),*212
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main95161-30516i200811-201301
*107
main95161-30516i201108-201301
*212
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90119-16004i200811
main90119-16020i200811
*107
main90119-16020i201108
*212
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-0P011i200912
(L)
main13521-0V010i201108-201301
(L),*212
main13521-31041i200811
(J)
main13521-36010i201108-201301
(J),*212
main13521-36010i200811-201301
*107

17 parts on this diagram · 2 diagrams in section
