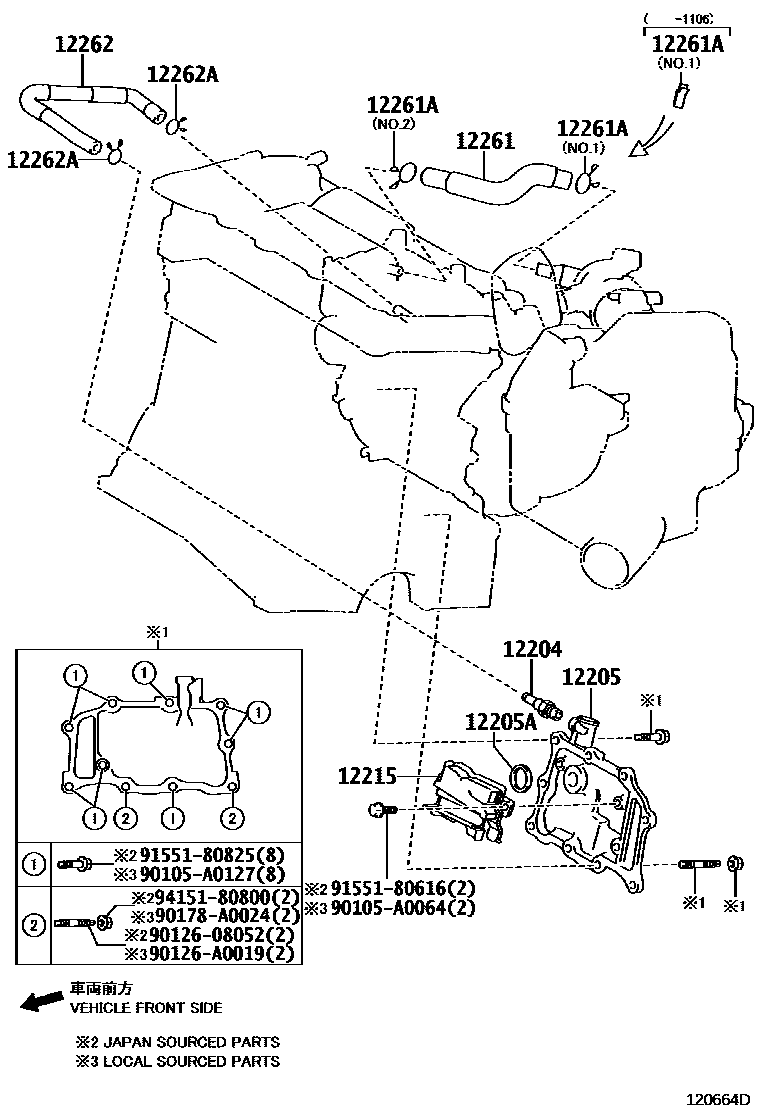

VENTILATION HOSE

0001 1 0002 1

12204VALVE SUB-ASSY, VENTILATION

main12204-31040i2GRFE..GSA3#..NAP200811-200812

main12204-31120i2GRFE..GSA3#..NAP200812

main12204-36020i2ARFE..ASA3#..NAP200811

*107

12205CASE SUB-ASSY, VENTILATION

main12205-0V010i2ARFE..ASA3#..NAP201108

*212

main12205-36010i2ARFE..ASA3#..NAP200811

*107

12205ARING, O(FOR VENTILATION CASE)

main12273-36010i2ARFE..ASA3#..NAP200811

*107

12215SEPARATOR, CASE

main12215-0V010i2ARFE..ASA3#..NAP201108

*212

main12215-36010i2ARFE..ASA3#..NAP200811

*107

12261HOSE, VENTILATION

main12261-31050i2GRFE..GSA3#..NAP200811

main12261-36020i2ARFE..ASA3#..NAP200811

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90466-A0008×2i2GRFE..GSA3#..NAP200811

main90467-19003i2ARFE..ASA3#..NAP200811

NO.2

main90467-21004i2ARFE..ASA3#..NAP201107

NO.1

main96134-41900i2ARFE..ASA3#..NAP200811-201106

NO.1

12262HOSE, VENTILATION, NO.2

main12262-31090i2GRFE..GSA3#..NAP200811

main12262-36020i2ARFE..ASA3#..NAP200811-201103

*107

main12262-36040i2ARFE..ASA3#..NAP201103

*107

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-16035×2i2ARFE..ASA3#..NAP200811

*107

main90467-21004×2i2GRFE..GSA3#..NAP200811

90105A0064

main90105-A0064

90105A0127

main90105-A0127

9012608052

main90126-08052

90126A0019

main90126-A0019

90178A0024

main90178-A0024

9155180616

main91551-80616

9155180825

main91551-80825

9415180800

main94151-80800

16 parts on this diagram · 2 diagrams in section
