HEATING & AIR CONDITIONING - COOLER PIPING

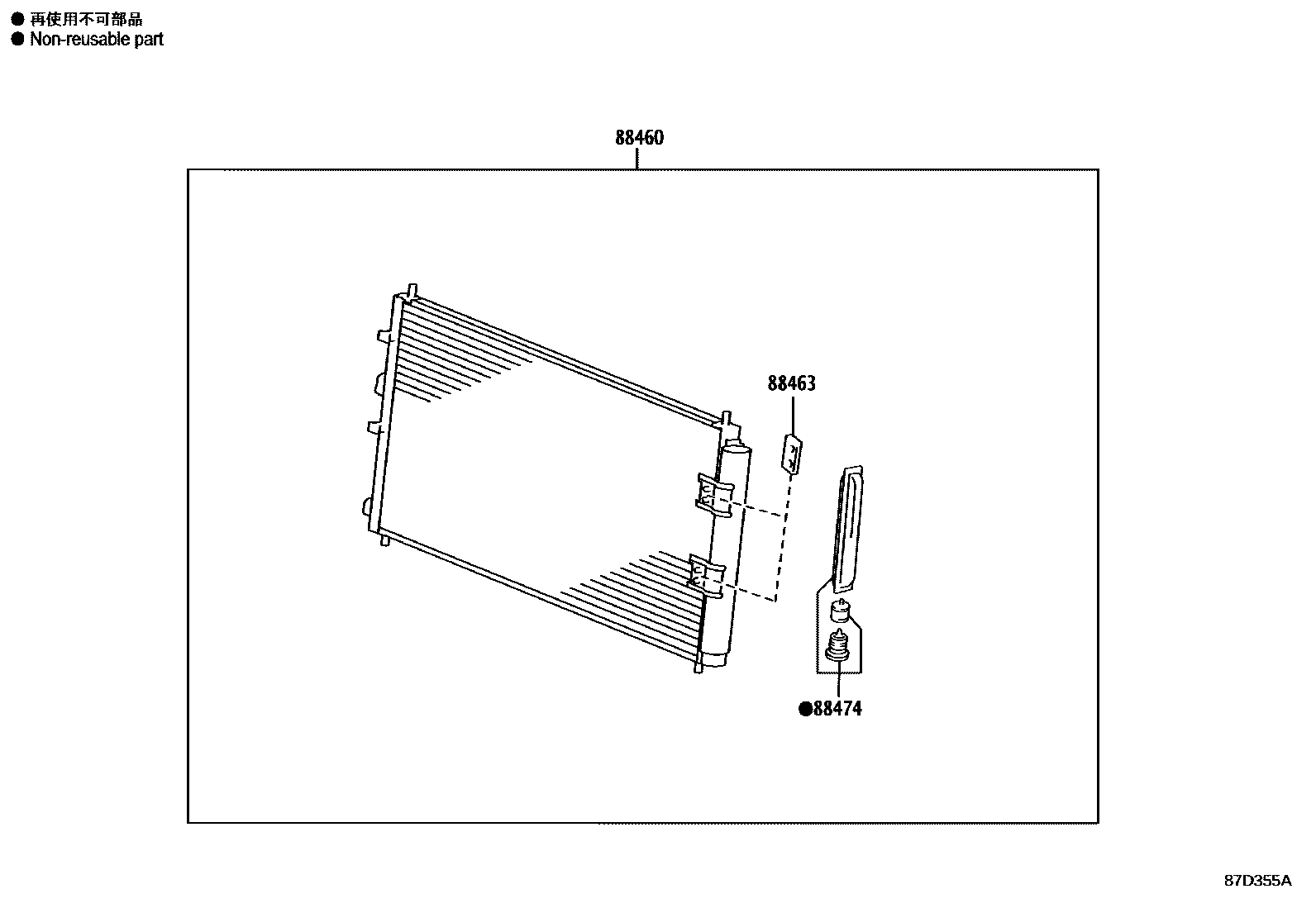

Parts diagram

88460CONDENSER ASSY, COOLER

main88460-42130i201204-201408

88463BRACKET, COOLER CONDENSER, NO.1

main88463-37370i201204

88474DRYER, COOLER

main88474-47020i201204

3 parts on this diagram · 2 diagrams in section
