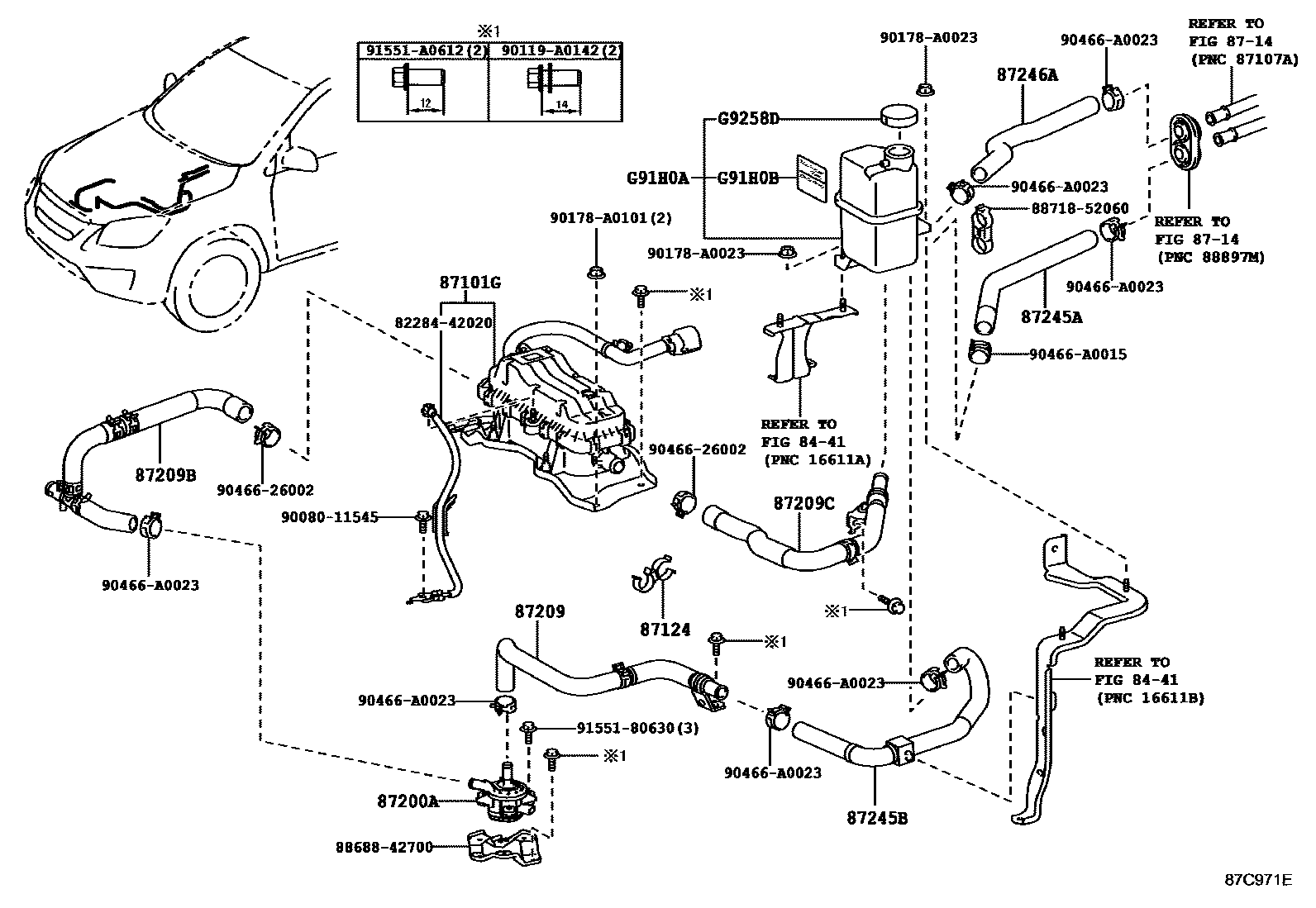

HEATING & AIR CONDITIONING - WATER PIPING
8441
87101GHEATER SUB-ASSY, ELECTRIC
87124CLAMP, HEATER
8714
87200APUMP ASSY, WATER(FOR HEATER)
87209HOSE SUB-ASSY, WATER
87209BHOSE SUB-ASSY, WATER, B
87209CHOSE SUB-ASSY, WATER, C
87245AHOSE, HEATER WATER, INLET A
87245BHOSE, HEATER WATER, INLET B
87246AHOSE, HEATER WATER, OUTLET A
G91H0ATANK ASSY, HEATER RESERVE
G91H0BLABEL, COOLANT SYSTEM INFORMATION
G9258DCAP, HEATER RESERVE TANK
subG9258-28012
8228442020WIRE, EARTH
main82284-42020
8868842700BRACKET, COOLER DIAPHRAGM
main88688-42700
8871852060PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-52060
9008011545
main90080-11545
90119A0142
main90119-A0142
90178A0023
main90178-A0023
90178A0101
main90178-A0101
9046626002
main90466-26002
90466A0015
main90466-A0015
90466A0023
main90466-A0023
9155180630
main91551-80630
91551A0612
main91551-A0612
26 parts on this diagram · 1 diagram in section
