TELEPHONE & MAYDAY

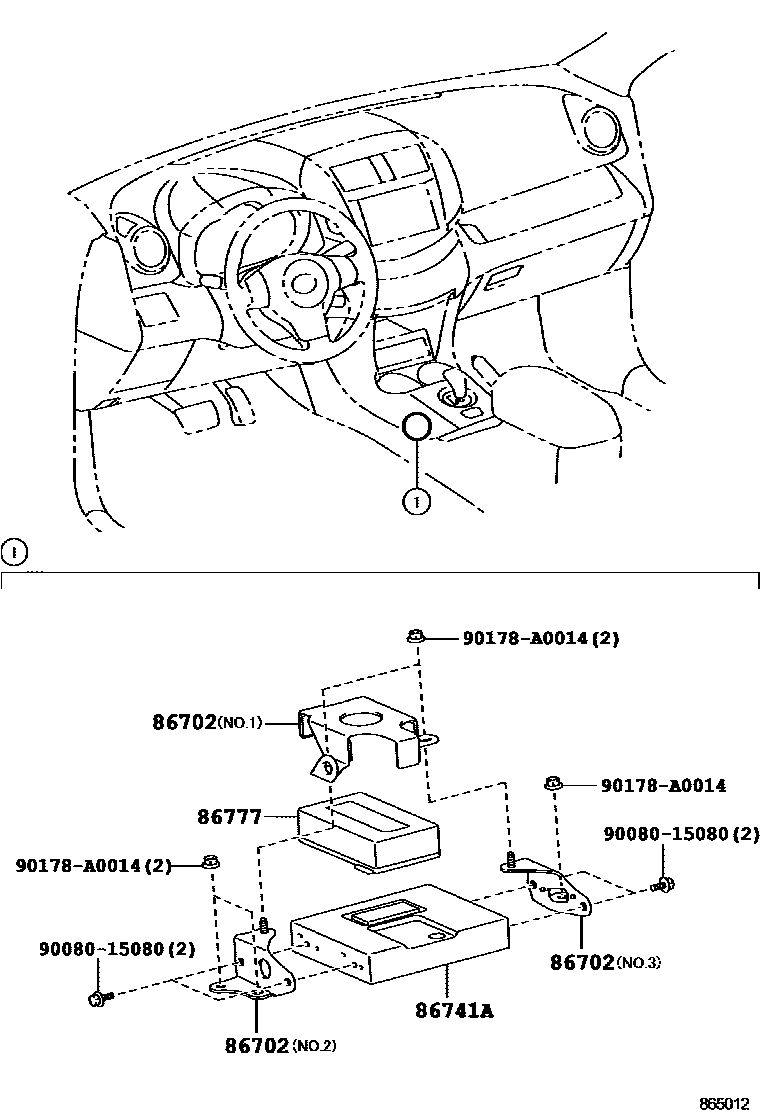

Parts diagram
86702BRACKET SET, TELEPHONE
main86702-0R010i201204
NO.1
main86702-0R020i201204
NO.2
main86702-0R030i201204
NO.3
86741ATRANSCEIVER, TELEMATICS
main86710-42010i201204-201209
sub86741-42030
main86741-42030i201209
86777BATTERY, MAYDAY
main86777-0W060i201204-201208
sub86777-76040
main86777-48020i201209-201210
sub86777-76020
main86777-76020i201211-201304
sub86777-76040
main86777-76040i201305
9008015080
main90080-15080
90178A0014
main90178-A0014

5 parts on this diagram · 1 diagram in section
